Brake Caliper: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Coat cylinder bore, piston, dust sleeve and sealing ring with a light coat of brake cylinder paste.

NOTE: Ensure piston is not tilted when installing.

Install sealing cover in rear annular groove of cylinder bore. Press in piston with a hardwood board. See Fig 1.
The area between dust cover and brake caliper housing must be kept dry so as to ensure correct seating for the dust cover. Keep brake cylinder paste or brake fluid away from this area. Install dust cover evenly up to stop with special tool 34 1 131. See Fig 2.
For rear use special tool 34 1 132. See Fig 3.
Press brake lining fully outwards and insert spring (4). See Fig 4.
Only clean guide screws, do not grease. Check and replace if necessary. Tighten to specification. See TORQUE SPECIFICATIONS .
Install caliper. See CALIPER ASSEMBLY .

Fig 1: Pressing In Piston

Courtesy of BMW OF NORTH AMERICA, INC.

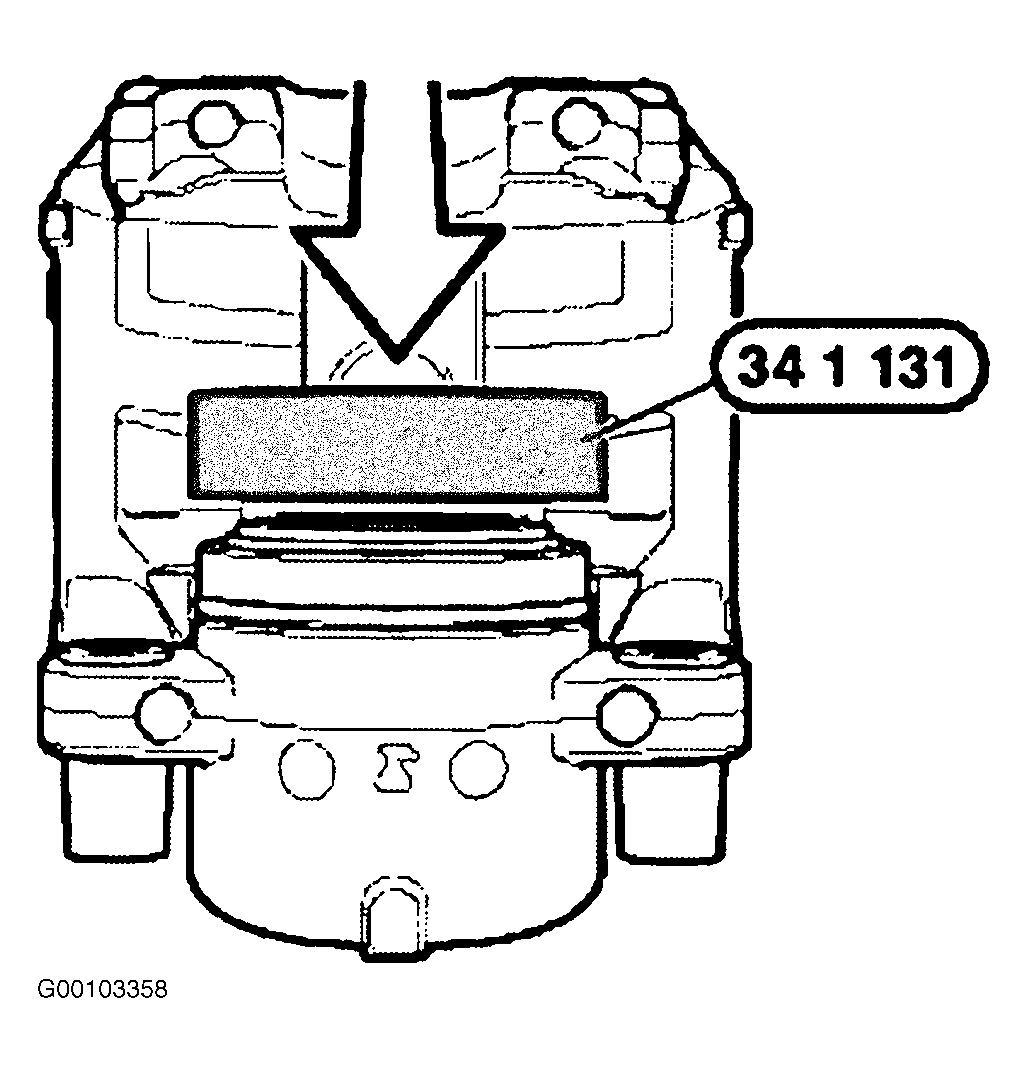

Fig 2: Pressing On Dust Cover (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Pressing On Dust Cover (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.
