Basic Setting
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Lift out dust cover.

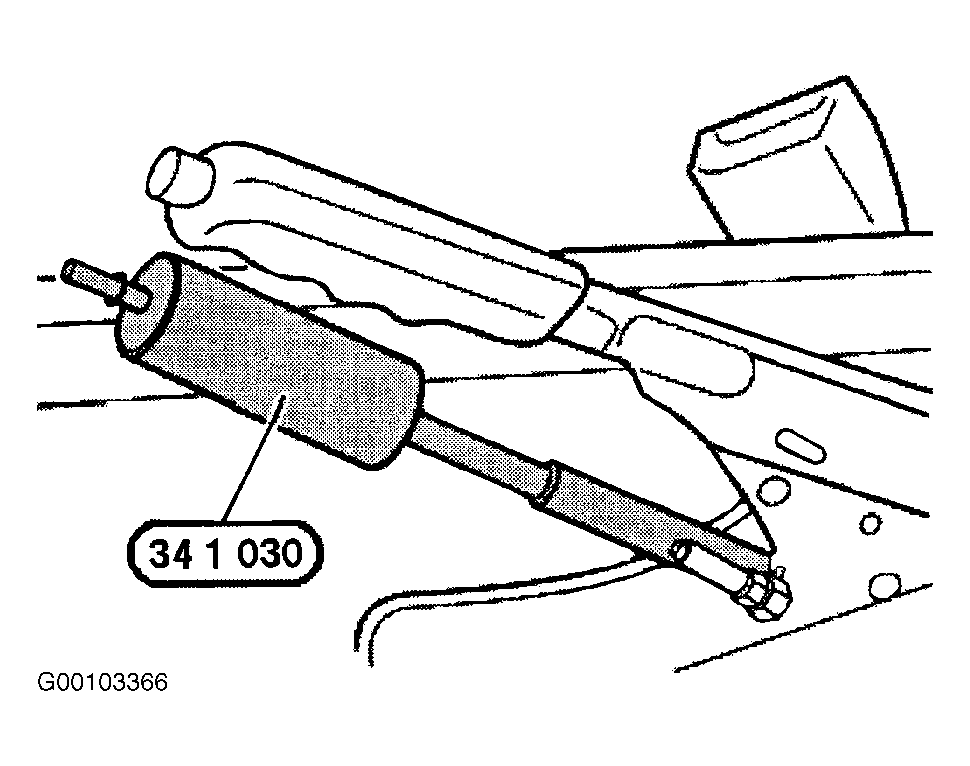

- Using special tool 34 1 030, release lock nuts and completely loosen Bowden cables. See Fig 1.
- Completely remove one wheel stud on each wheel.
- Rotate wheel until open hole is located at bottom.
- Insert screwdriver into rotor inspection hole and turn adjusting screw until it is no longer possible to turn wheel. See Fig 2.
- Back off adjusting screw 12 notches.
