51 43 240 Removing And Installing/Replacing Supplementary Trim On C-Pillar At Bottom (With Electric Rear Seat Adjustment) On Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

Necessary Preliminary Tasks:

Move rear seat backrest forwards.

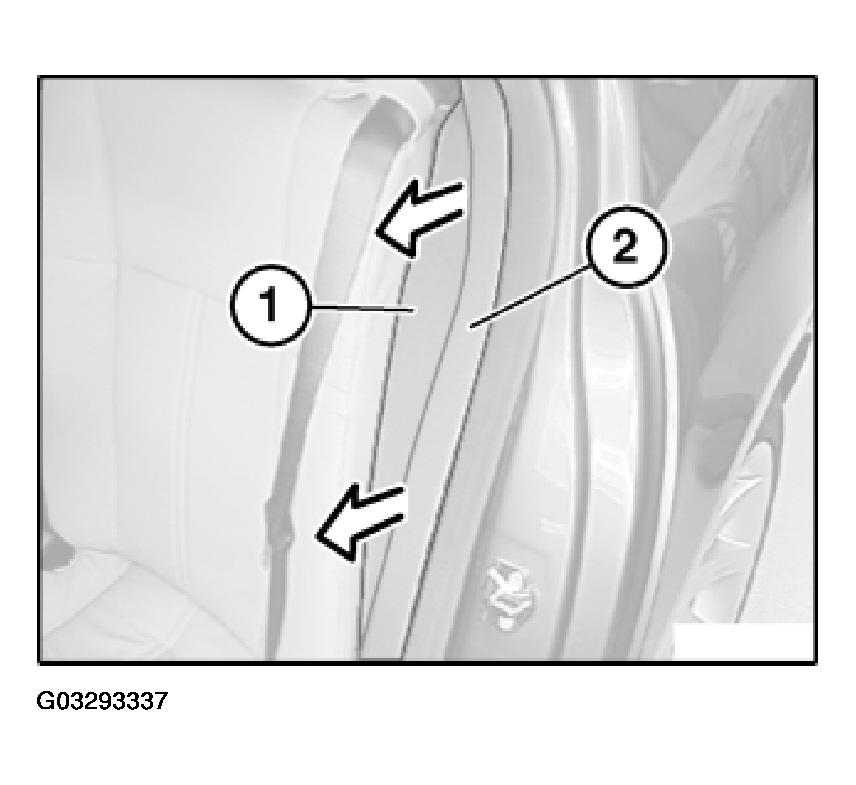

Unclip panel (1) on upper side trim section (2) towards front.

Fig 1: Locating Panel On Upper Side Trim Section

Courtesy of BMW OF NORTH AMERICA, INC.

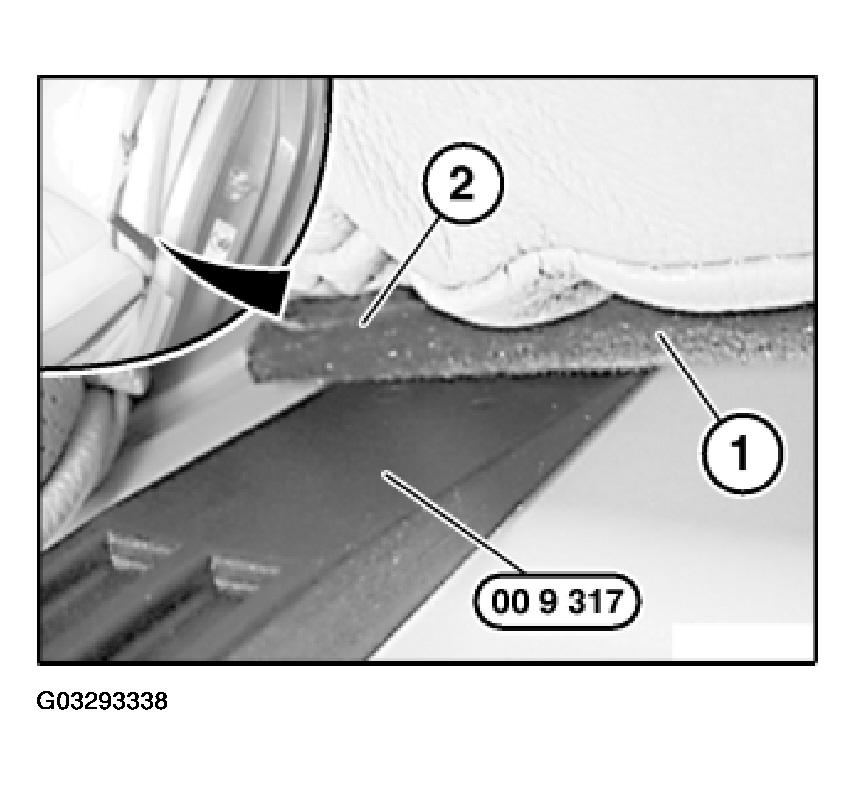

Unclip guide (1) at bottom with special tool 00 9 317 from panel (2).

Installation:

Replace clip.

Fig 2: Unclipping Guide From Panel

Courtesy of BMW OF NORTH AMERICA, INC.

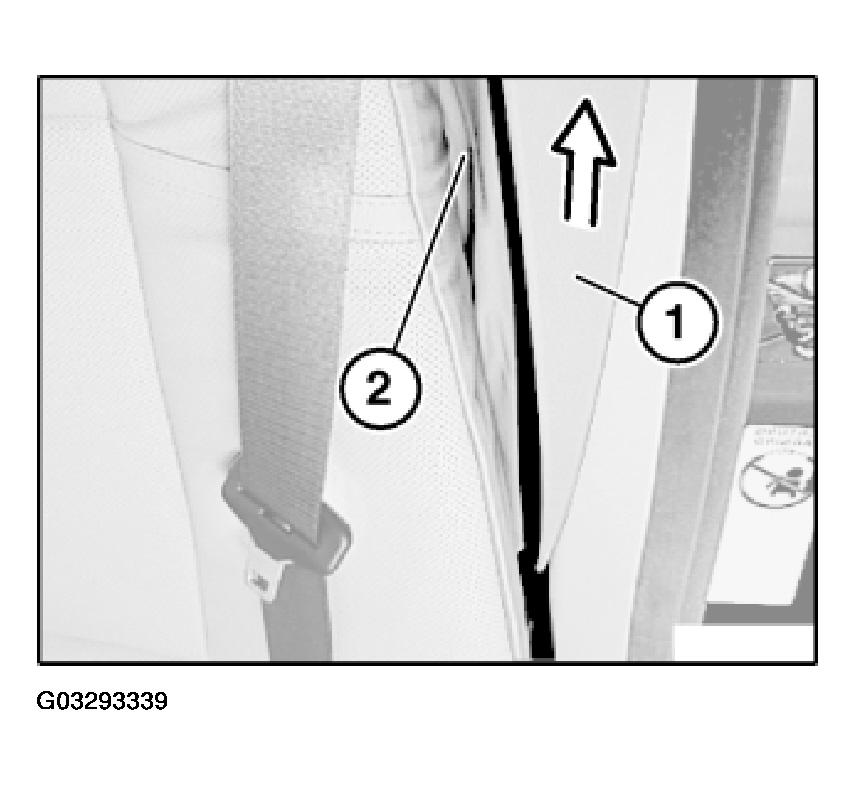

Feed out panel (1) from guide on seat cover (2) towards top.

Fig 3: Removing Panel From Guide

Courtesy of BMW OF NORTH AMERICA, INC.
