51 42 300 Removing And Installing/Replacing Chest Strip (Chrome Strip) On Left Or Right Rear Door (Without Roller Sun Blind)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Installation:

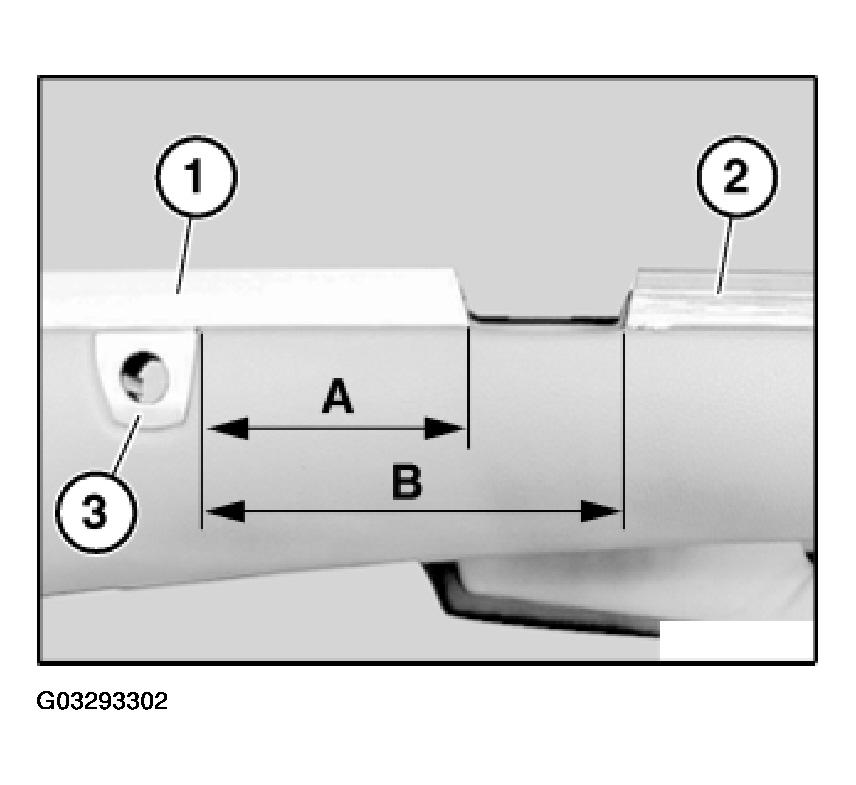

Observe distance of chest strip at front (1) and rear (2) to trim (3) of locking rod:

A = 70 mm.

B = 110 mm.

Fig 1: Identifying Chest Strip Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

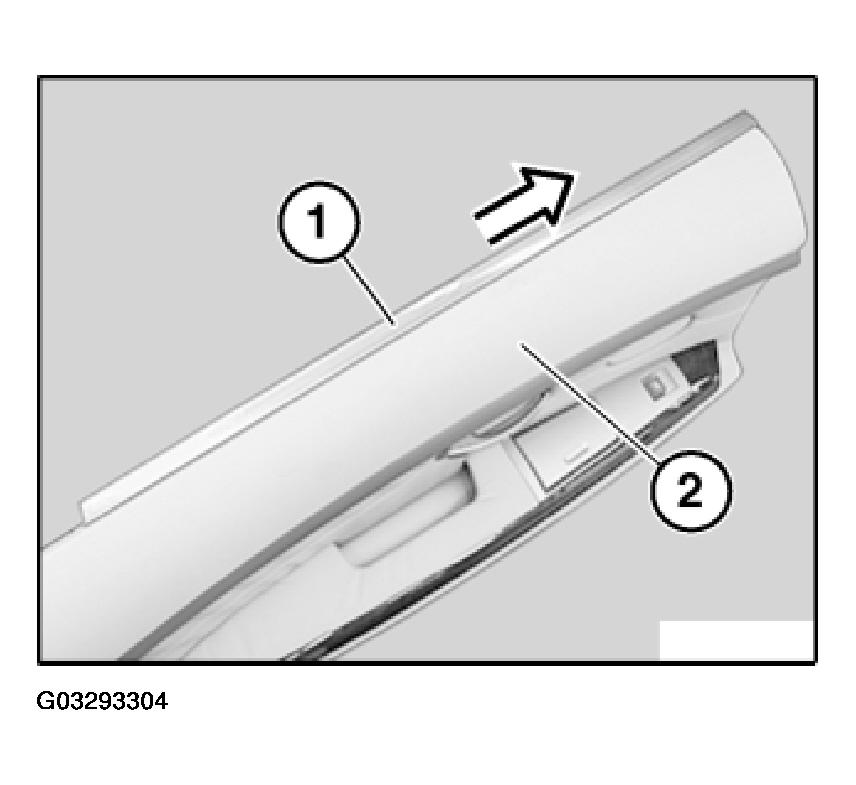

Pull rear chest strip (1) in direction of arrow off door trim (2).

Fig 2: Removing Rear Chest Strip

Courtesy of BMW OF NORTH AMERICA, INC.

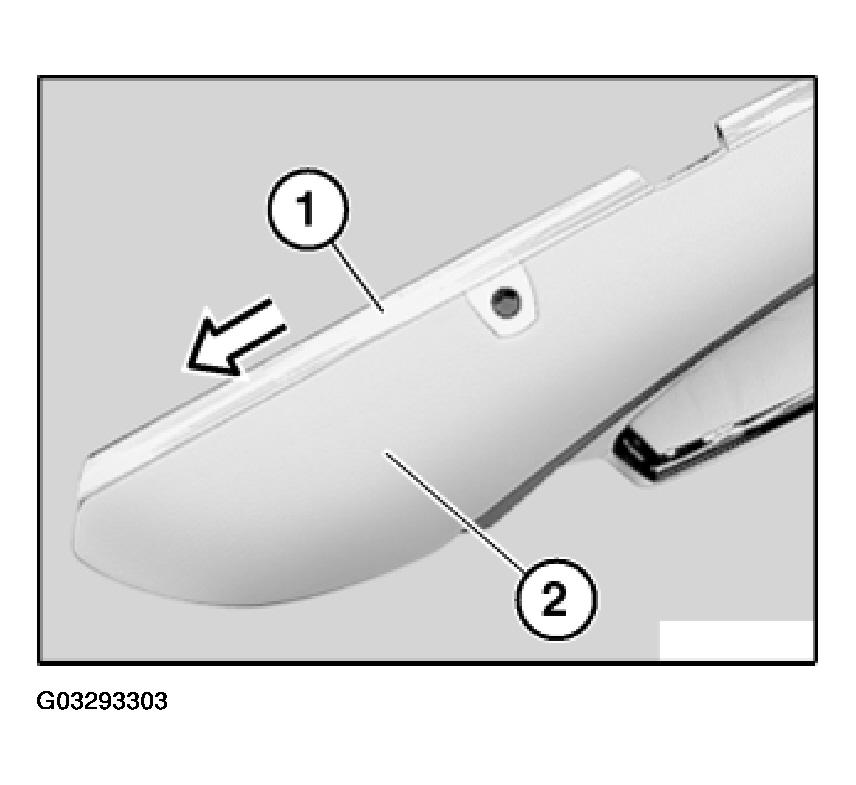

Pull front chest strip (1) in direction of arrow off door trim (2).

Fig 3: Removing Front Chest Strip

Courtesy of BMW OF NORTH AMERICA, INC.
