51 42 065 Removing And Installing/Replacing Wooden Strip On Left Or Right Door Trim (Rear)

Necessary Preliminary Tasks:

• Remove upper section on armrest (rear). Refer to 51 42 070 REMOVING AND INSTALLING/REPLACING UPPER SECTION ON ARMREST (REAR) .

Release screws (1) on wooden strip (2).

Installation:

Tightening torque, refer to 51 42 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

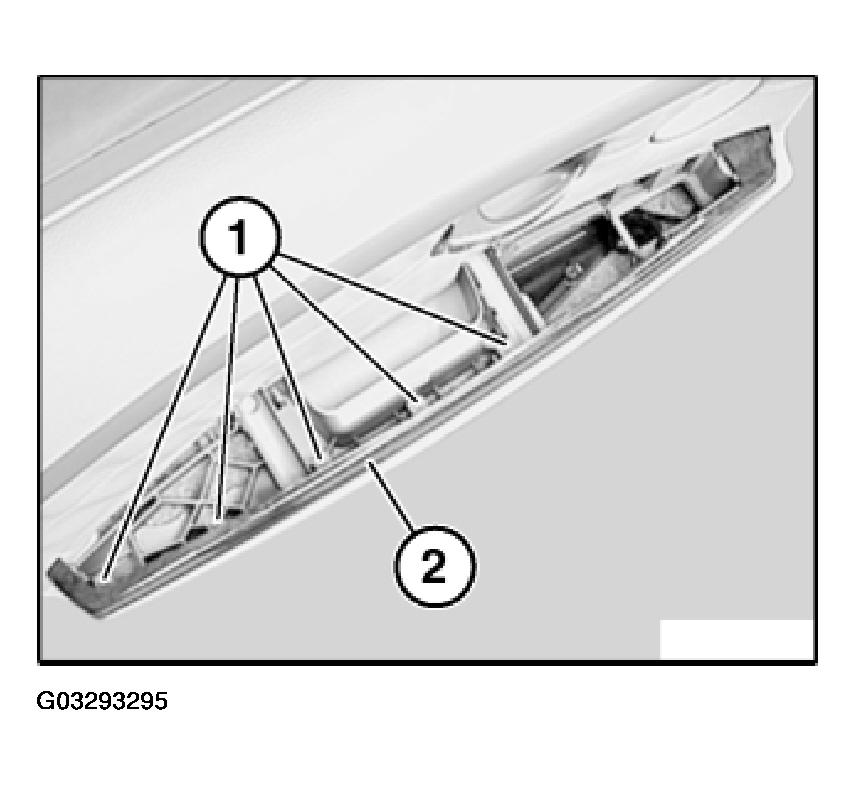

Fig 1: Locating Screws In Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Lever wooden strip (1) out of door trim (4) as follows:

1. At rear lever guide (2) in direction of arrow out of mounting (3).
2. At front pull off in direction of arrow from door trim (4).

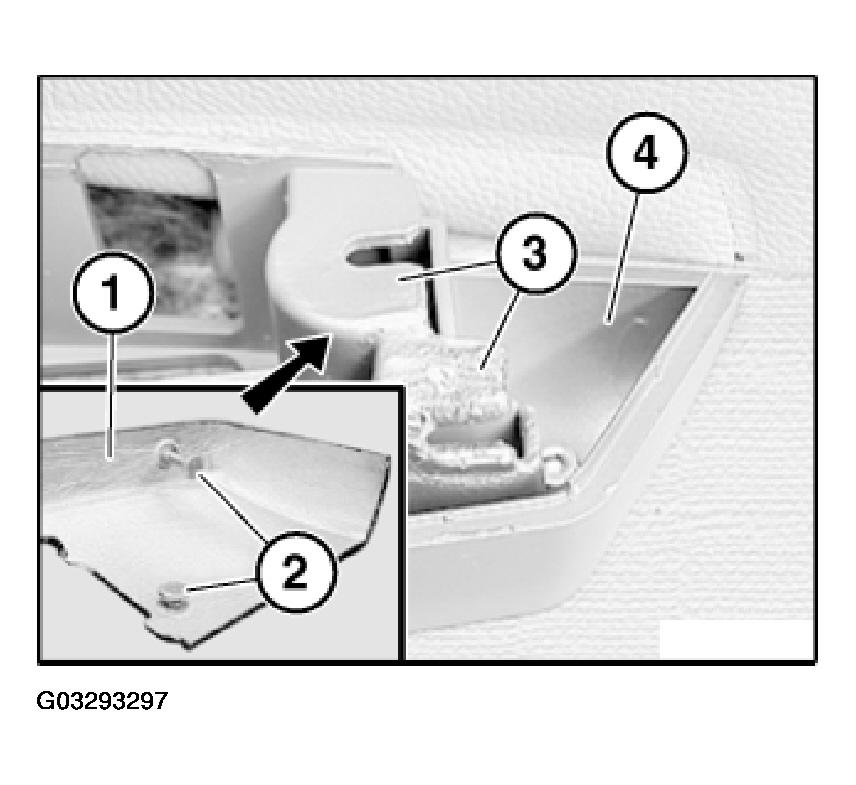

   Fig 2: Removing Wooden Strip From Door Trim

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert guides (2) of wooden strip (1) correctly into mountings (3) of door trim (4).

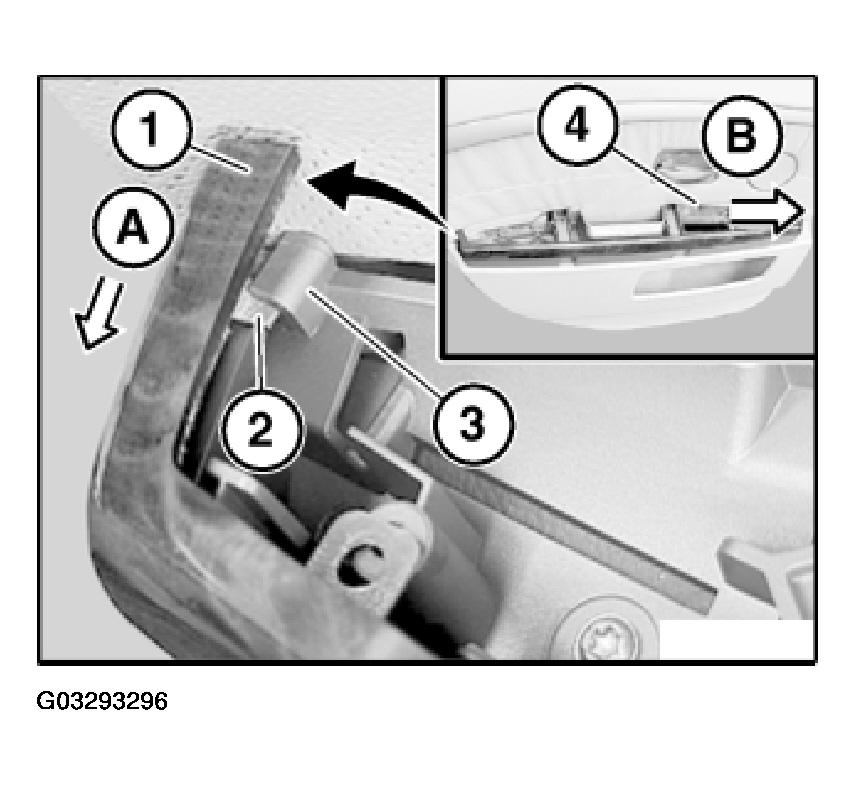

Fig 3: View Of Guides Of Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of wooden strip (5) must not be damaged:

1. Guide (rear).
2. Bracket.
3. Spacer.
4. Guides (front).

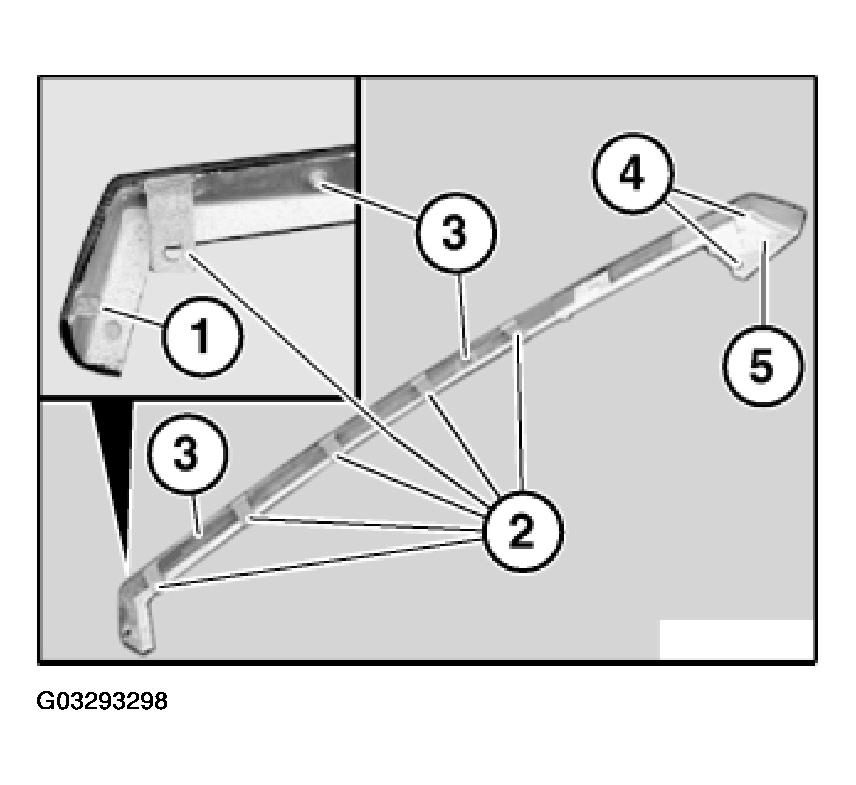

   Fig 4: Identifying Bracket, Spacer And Guides

   Courtesy of BMW OF NORTH AMERICA, INC.
