51 42 030 Removing And Installing/Replacing Decorative Strip (Light Strip) On Left Or Right Door Trim (Rear)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Pull back foam section (1) over plug (2).

Unlock plug (2) and detach from light strip (3).

Release screws (4).

Installation:

Tightening torque, refer to 51 42 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

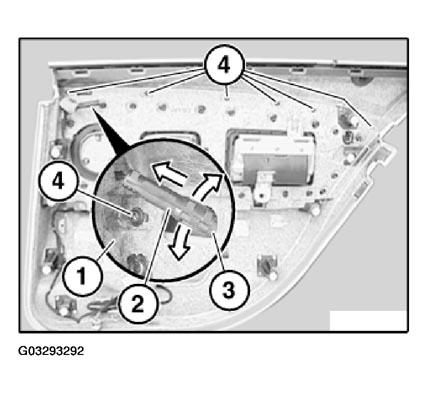

Fig 1: Locating Light Strip Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out decorative strip (1) at rear and front from door trim (2).

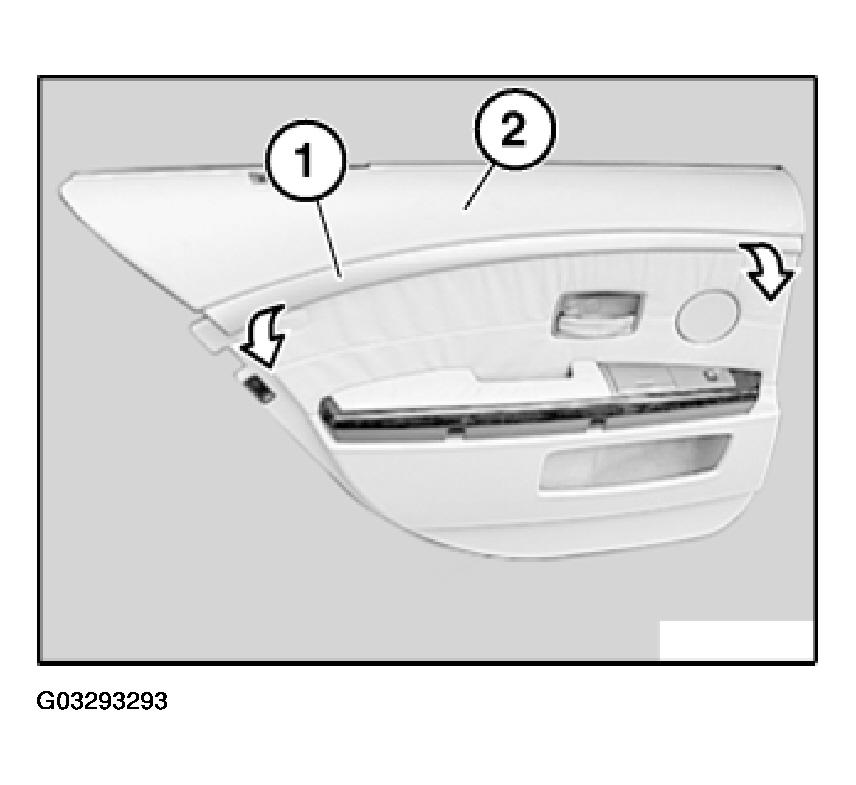

Fig 2: Removing Decorative Strip From Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide light strip (3) in decorative strip (4) fully towards rear.

Following parts of decorative strip (4) must not be damaged:

Guides.
Screw connections.
Light strip.

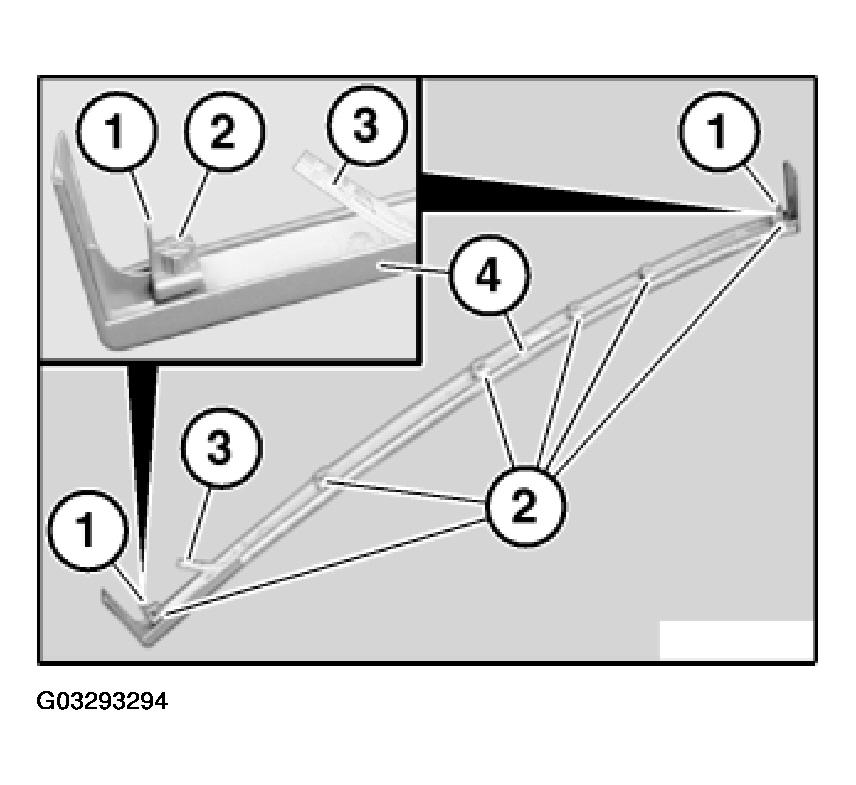

Fig 3: Identifying Screw Connections, Guides And Light Strip
Courtesy of BMW OF NORTH AMERICA, INC.
