51 22 370 Removing And Installing/Replacing Cover (Seal) On Rear Door At Bottom Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Detach cover (1) in direction of arrow from rear door (2).

Installation:

Clip clips of cover (1) correctly into bores (3).

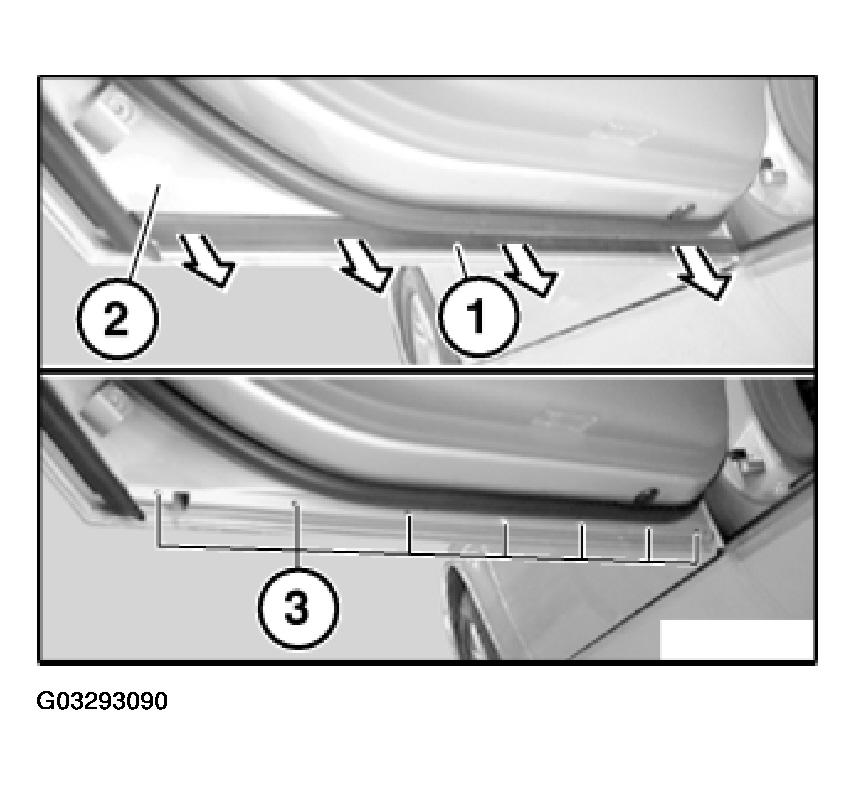

Fig 1: Detaching Cover From Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) of cover (2) must not be damaged.

Cover (2) has an aluminum insert (3).

Only press on clips (1) when installing otherwise cover (2) will become uneven.

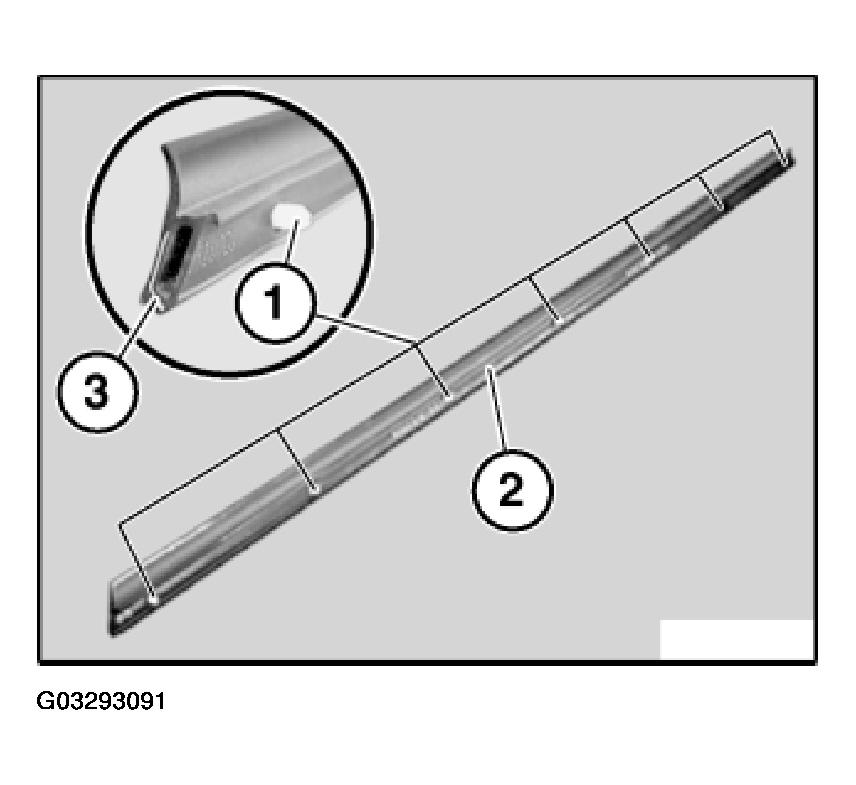

Fig 2: Identifying Aluminum Insert In Cover

Courtesy of BMW OF NORTH AMERICA, INC.
