51 22 235 Removing And Installing/Replacing Bowden Cable For Inside Door Opener On Left Or Right Rear Door
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove door trim panel. Refer to Front Door Trim Panel With Arm Rest and/or 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

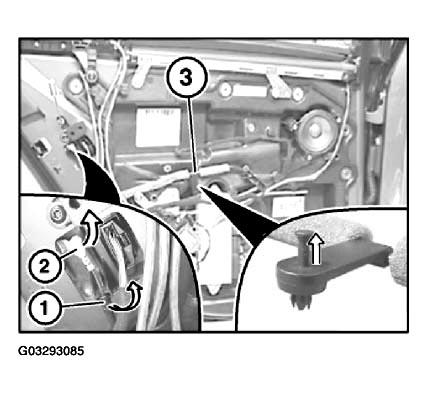

Feed out Bowden cable:
- Feed out Bowden cable sleeve towards bottom (1).
- Feed out Bowden cable towards top (2).
Unclip Bowden cable (3).
