51 22 126 Removing And Installing/Replacing Carrier For Outside Door Handle On Left Or Right Rear Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear outside handle. Refer to 51 22 170 REMOVING AND INSTALLING/REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR .

Release screw (1).

Feed carrier out of guide (2) and lower at front downwards.

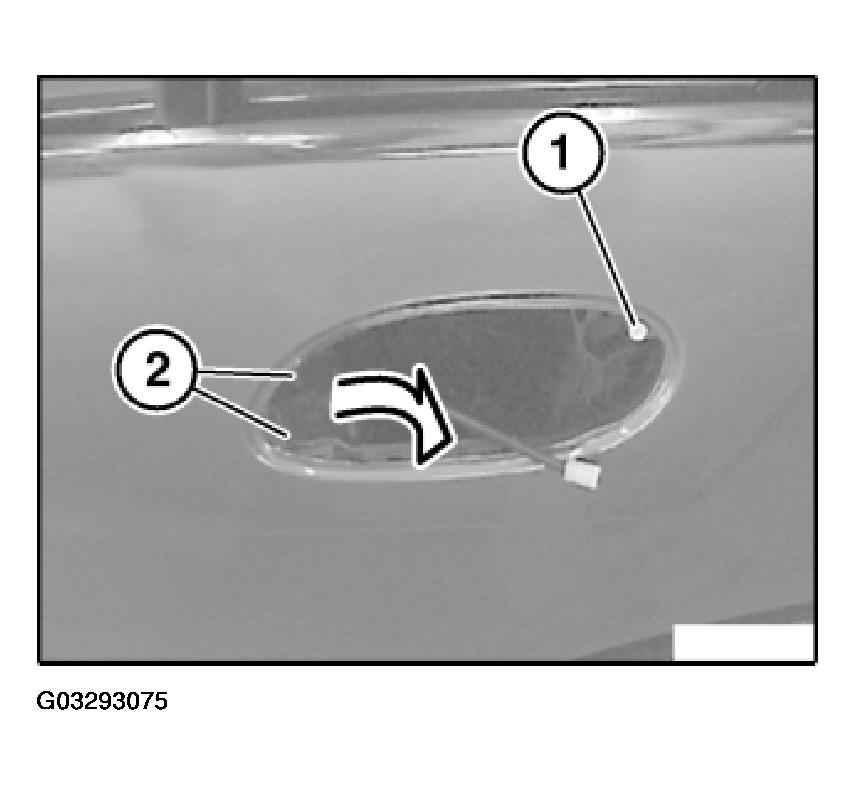

Fig 1: Removing Carrier From Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides are correctly fed in.

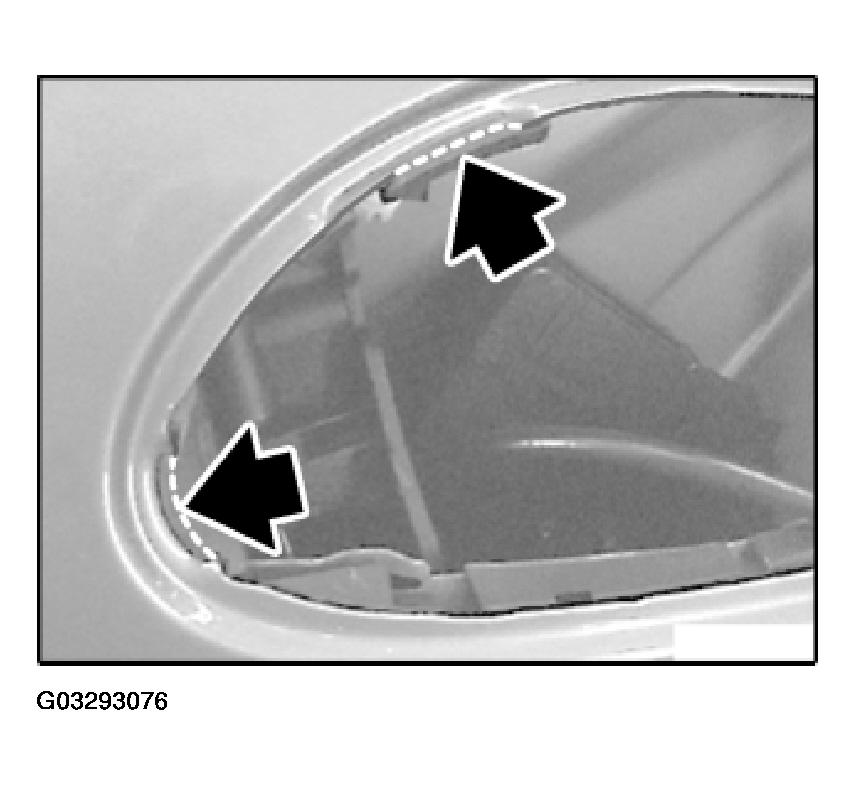

Fig 2: View Of Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Remove carrier through handle opening.

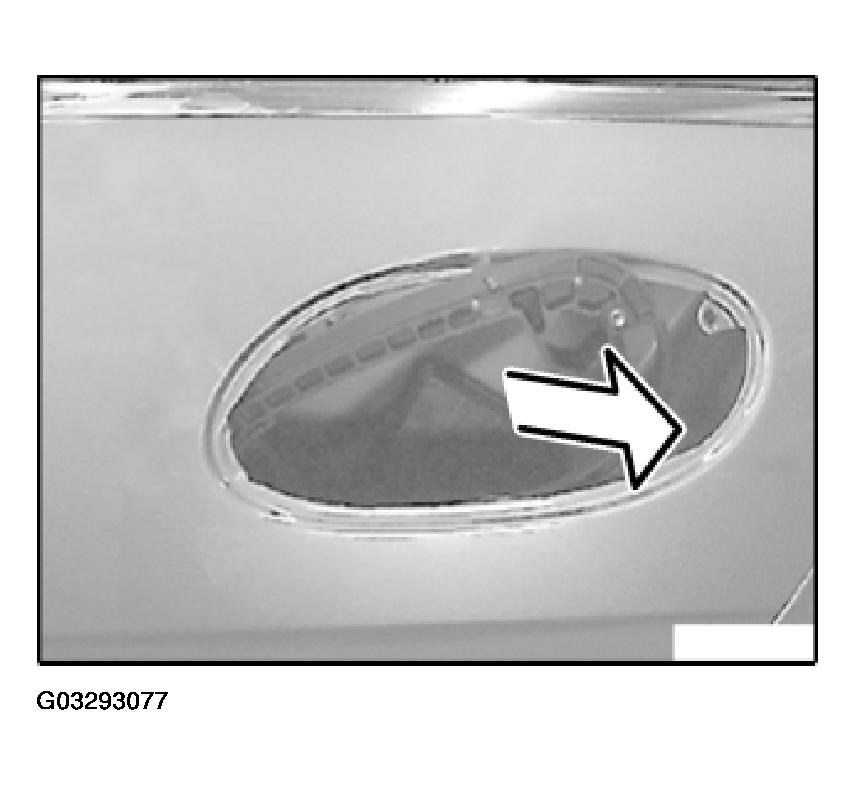

Fig 3: Removing Carrier Through Handle Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Protect door outer skin (e.g. cleaning cloth).

Feed fiber optics cable out of clip (1).

NOTE: No fibre optics cable is fitted from build date 09/2004.

If necessary, withdraw Bowden cable sleeve (2) with clip (3) from retaining fixture.

Feed Bowden cable out of actuating lever (4).

Remove carrier.

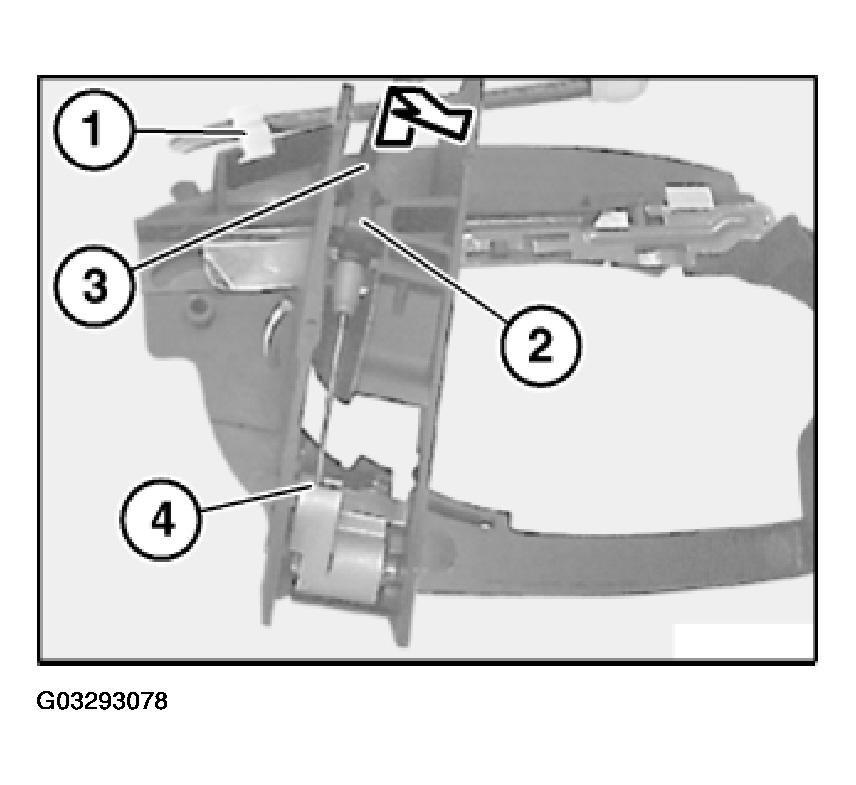

Fig 4: Removing Bowden Cable From Actuating Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip is on fitted on Bowden cables with blue sealing caps (1).

Position of clip on Bowden cable:

2 = small hole side.

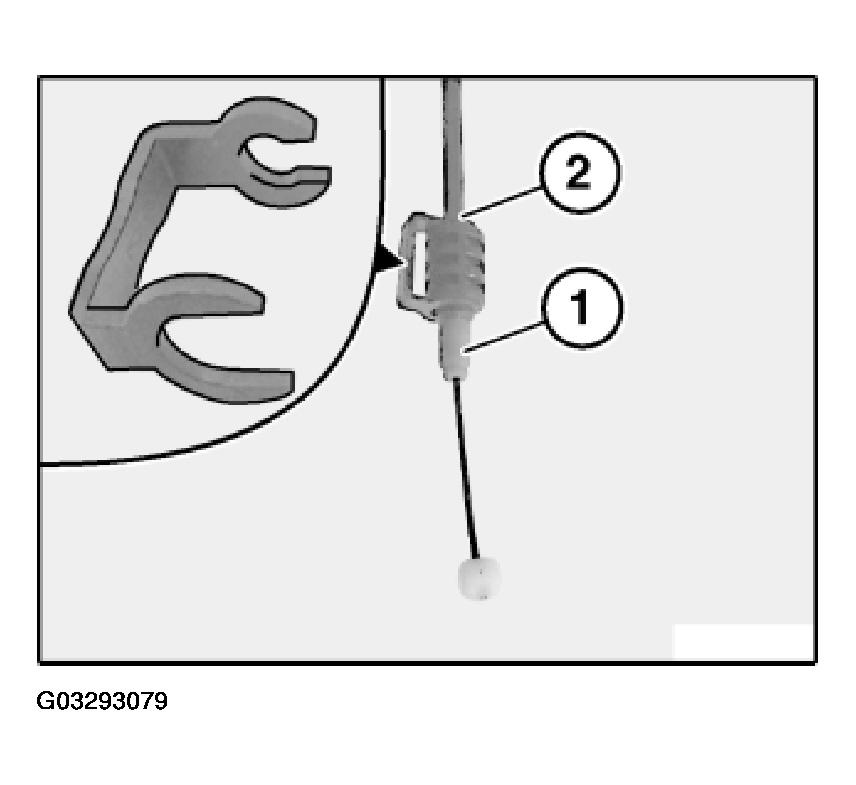

Fig 5: View Of Clip On Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
