51 12 435 Replacing Left Or Right Body Molding From Sides Of Rear Bumper

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

Unclip body molding (1) with special tool 00 9 317 and remove.

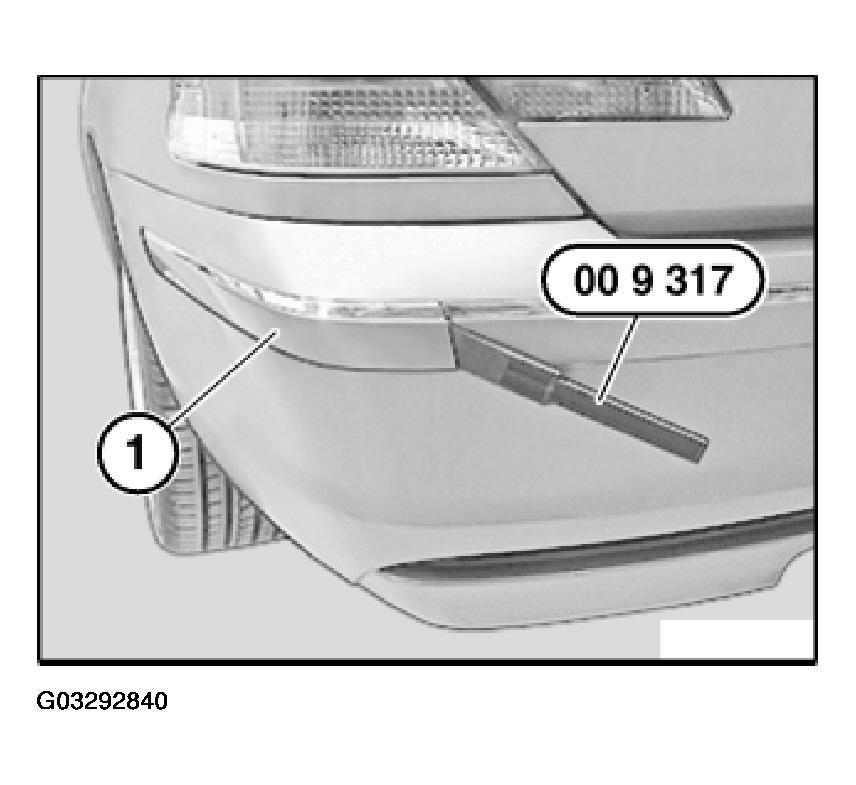

Fig 1: Removing Body Molding With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

If Replacing Version With Chromeline:

Release catches (1) and remove chrome trim from body molding (2).

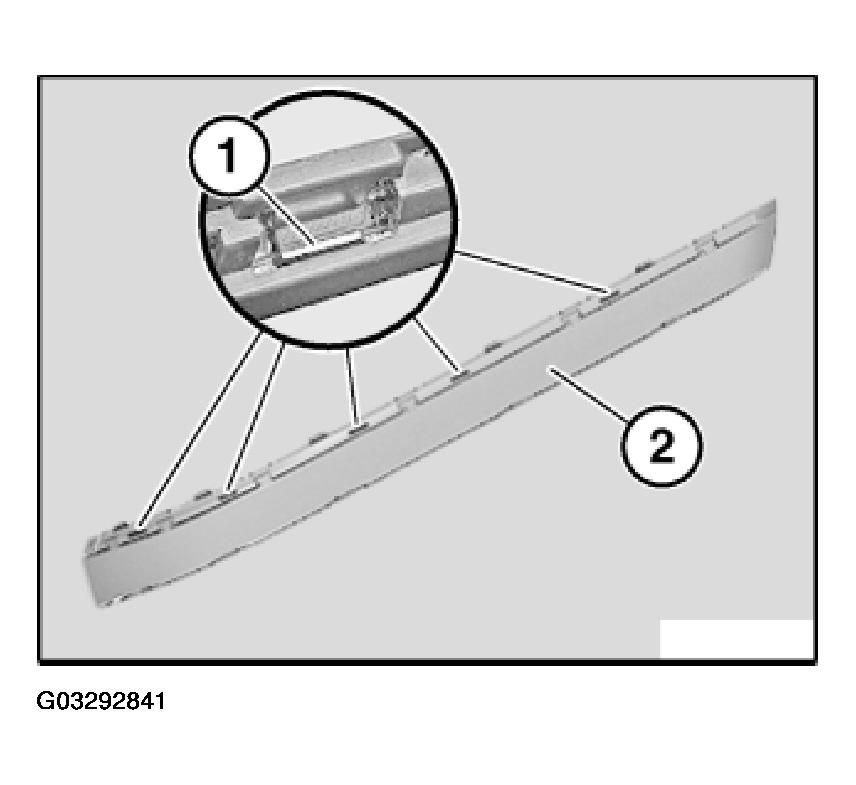

Fig 2: Removing Chrome Trim From Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.
