51 16 040 Removing And Installing/Replacing Housing (Cover) On Left Or Right Door Mirror

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove mirror glass. Refer to 51 16 026 REPLACING MIRROR GLASS .

NOTE: The housing is secured without play by the four multitooth catches (2) in the clips (3).

Unlock catches (1 and 2) with a screwdriver.

Pull on housing and unlock all four clips (3) in succession.

Installation:

Replace all clips (3).

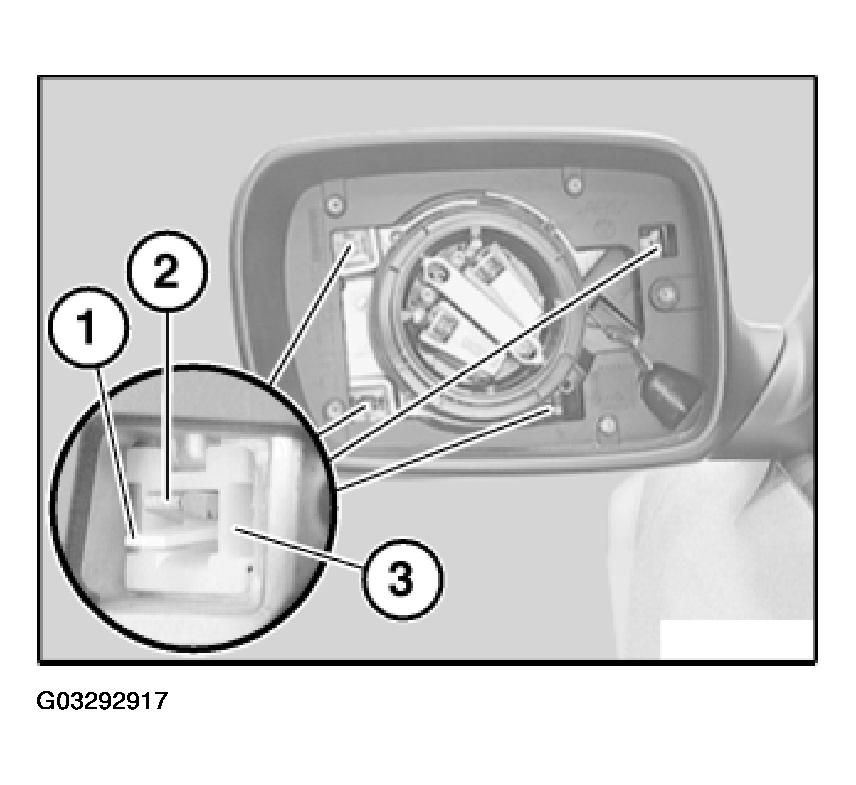

Fig 1: View Of Multitooth Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guides (2) on housing (3) must not be damaged.

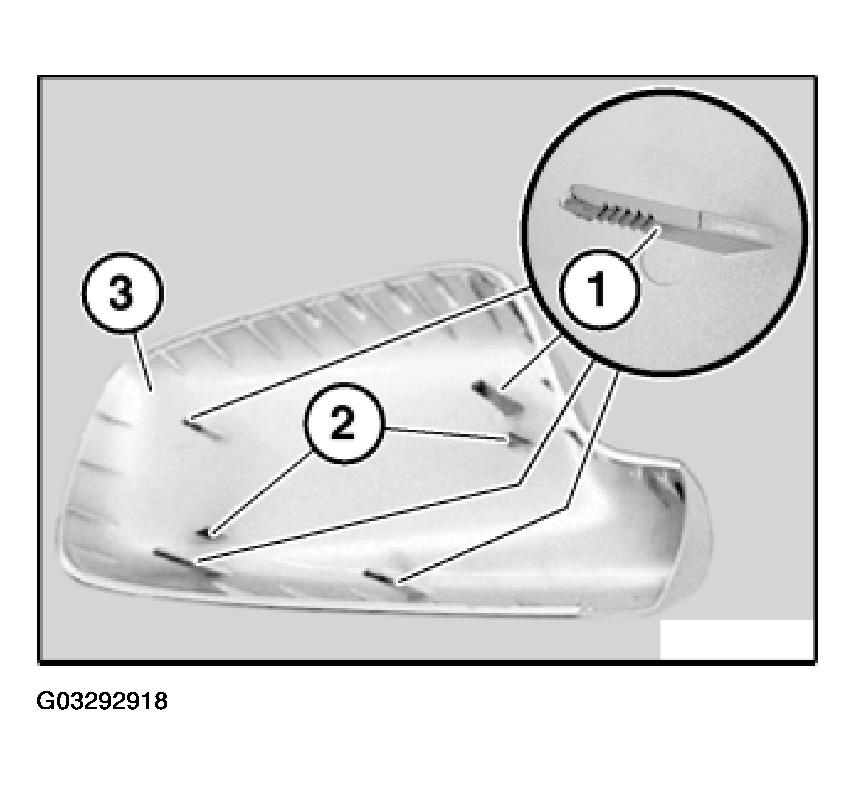

Fig 2: Locating Catches And Guides On Housing

Courtesy of BMW OF NORTH AMERICA, INC.
