51 41 065 Removing And Installing/Replacing Wooden Strip On Left Or Right Door Trim (Front)

Necessary Preliminary Tasks:

• Remove upper section on armrest (front). Refer to 51 41 070 REMOVING AND INSTALLING/REPLACING UPPER SECTION ON LEFT OR RIGHT ARMREST .

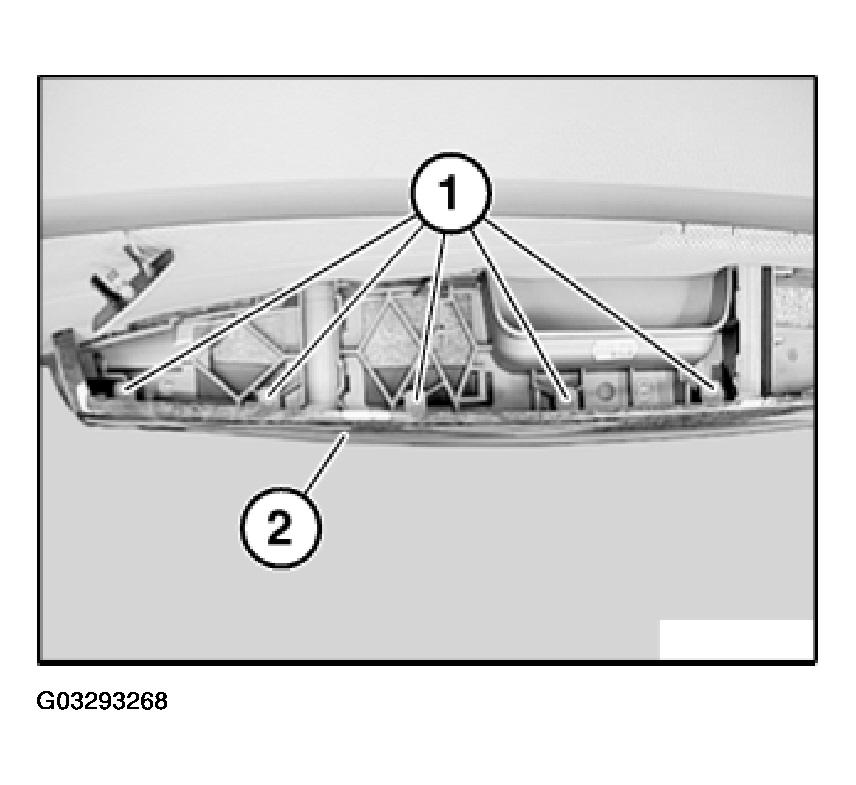

Release screws (1) on wooden strip (2).

Installation:

Tightening torque, refer to 51 41 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Locating Screws On Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

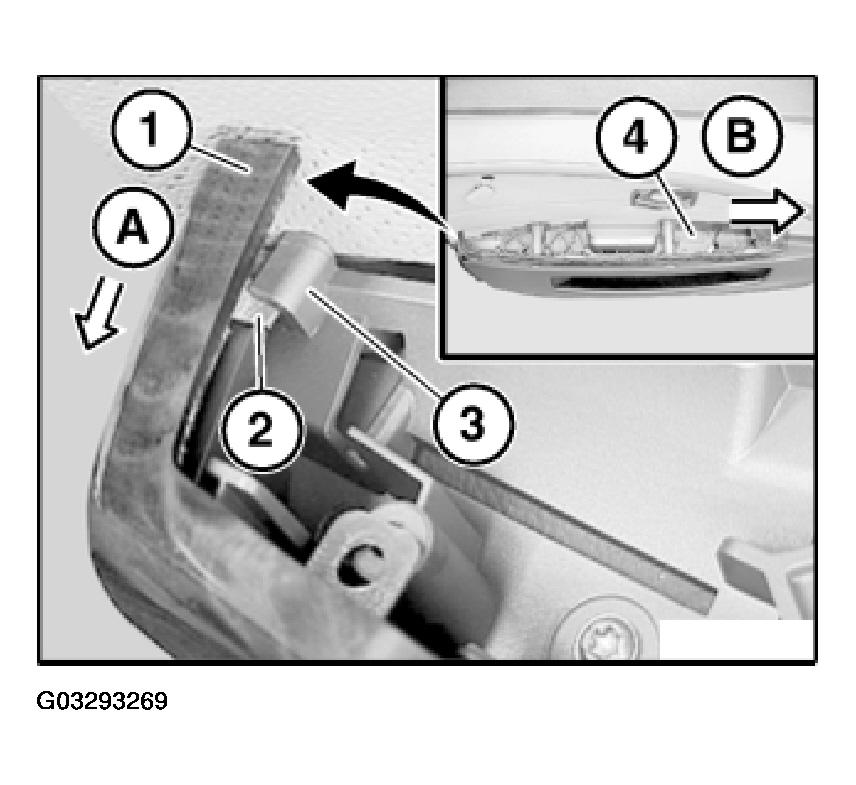

Lever wooden strip (1) out of door trim (4) as follows:

1. At rear lever guide (2) in direction of arrow out of mounting (3).
2. At front pull off in direction of arrow from door trim (4).
   Fig 2: View Of Wooden Strip From Door Trim

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

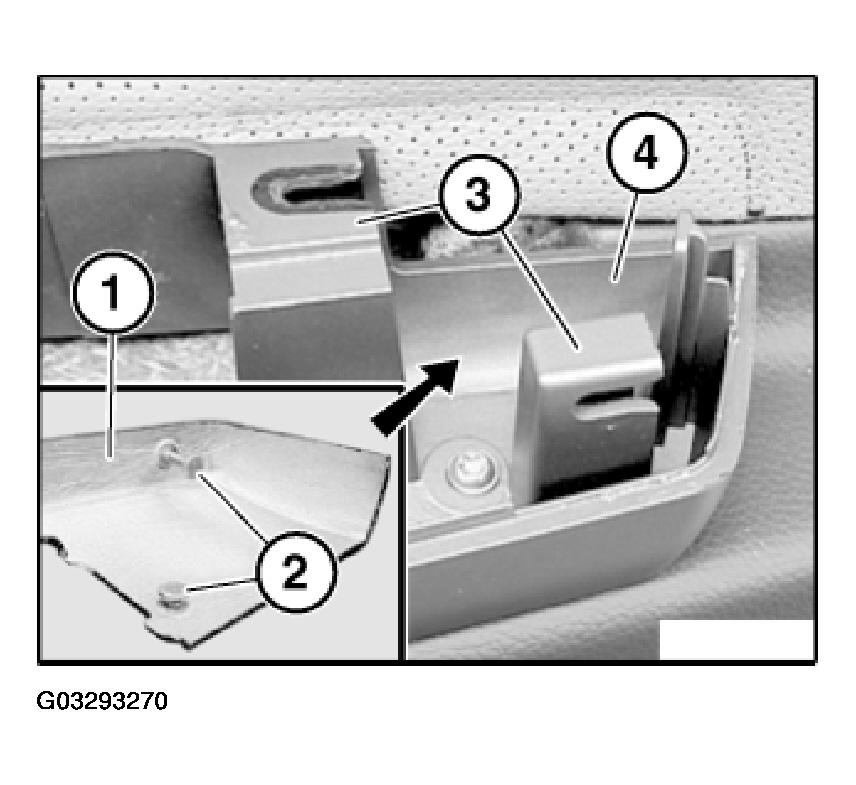

Insert guides (2) of wooden strip (1) correctly into mountings (3) of door trim (4).

Fig 3: Identifying Guides Of Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

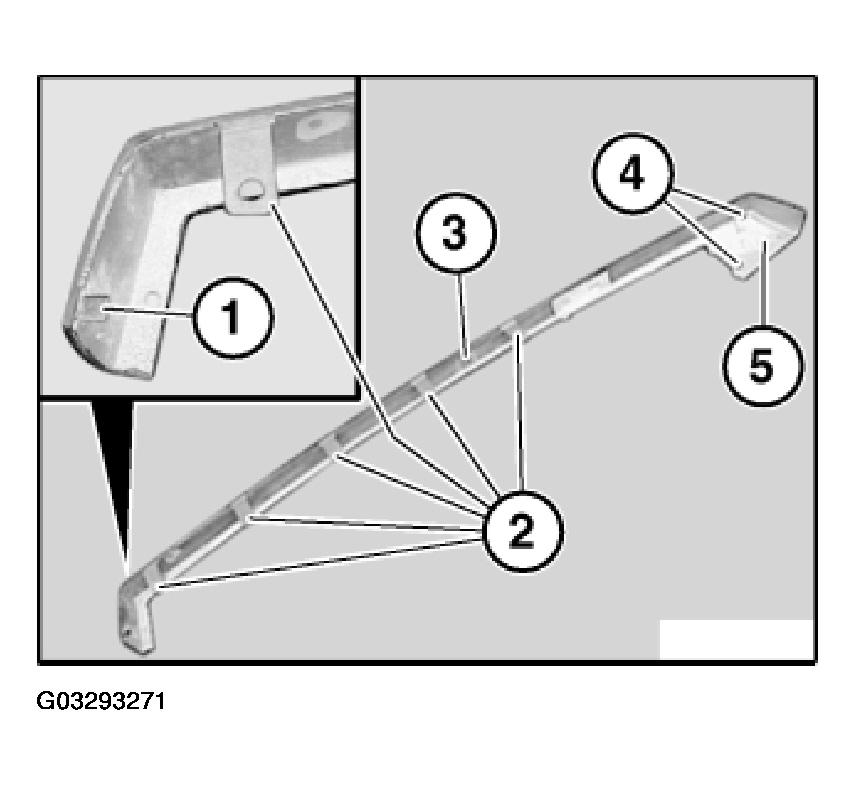

Following parts of wooden strip (5) must not be damaged:

1. Guide (rear).
2. Bracket.
3. Spacer.
4. Guides (front).
   Fig 4: Locating Bracket, Spacer And Guides

   Courtesy of BMW OF NORTH AMERICA, INC.
