51 21 351 Replacing Window Cavity Seal On Left Or Right Front Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Pull off window cavity seal (1) starting at rear in direction of arrow.

Installation:

If necessary, replace faulty clips (2 and 3).

Coat window cavity seal (1) with water before fitting.

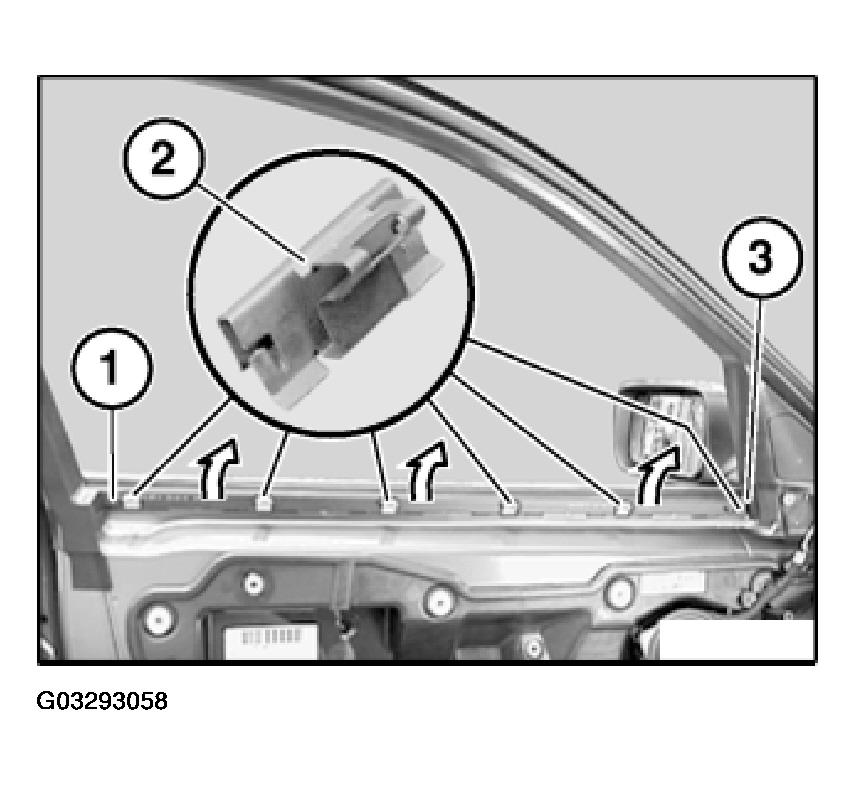

Fig 1: Removing Window Cavity Seal Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Aluminium insert (1) of window cavity seal (2) must not be damaged.

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .

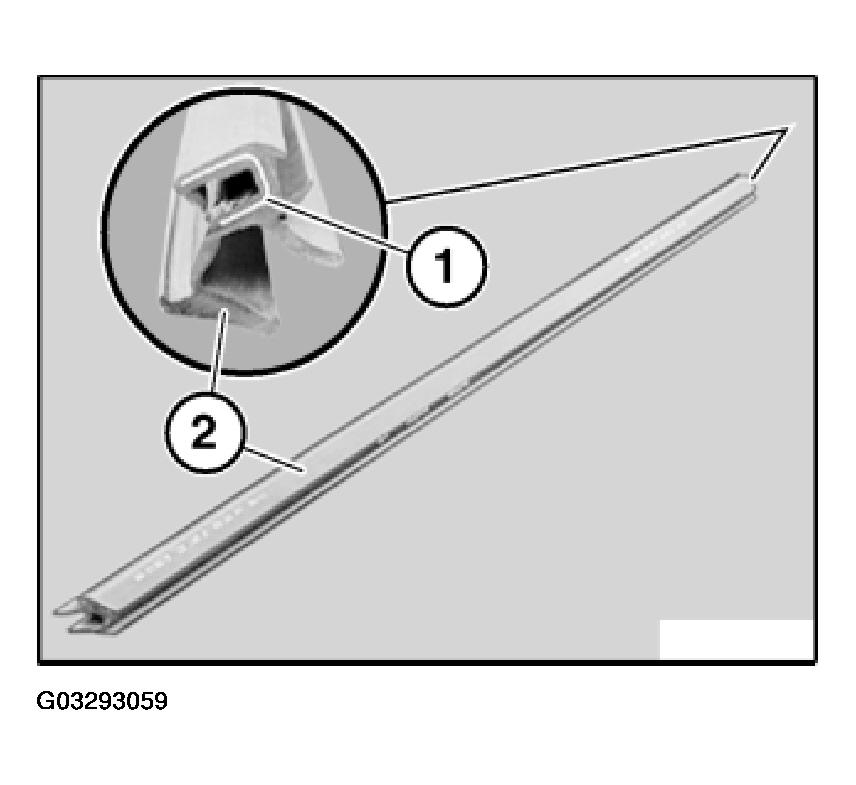

Fig 2: View Of Aluminium Insert Of Window Cavity Seal

Courtesy of BMW OF NORTH AMERICA, INC.
