51 21 225 Removing And Installing Or Replacing Inside Door Opener In Left Or Right Front Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 321
00 9 323

Press on point (A) and tilt cover.

Remove cover and release screw underneath.

Tightening torque, refer to 51 21 6AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

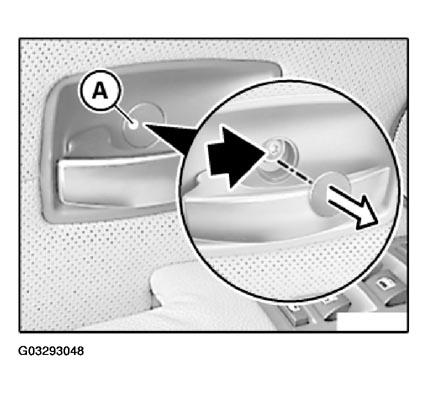

Fig 1: Removing Door Opener Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Raise edge of door opener with cleaning wedge 00 9 323 slightly to be able then to lever out door opener with fishbone 00 9 321.

Carefully feed door opener forwards and downwards out of door trim.

IMPORTANT: If the door opener is pulled out too vigorously, there is a risk of damage to the door opener and the Bowden cable.

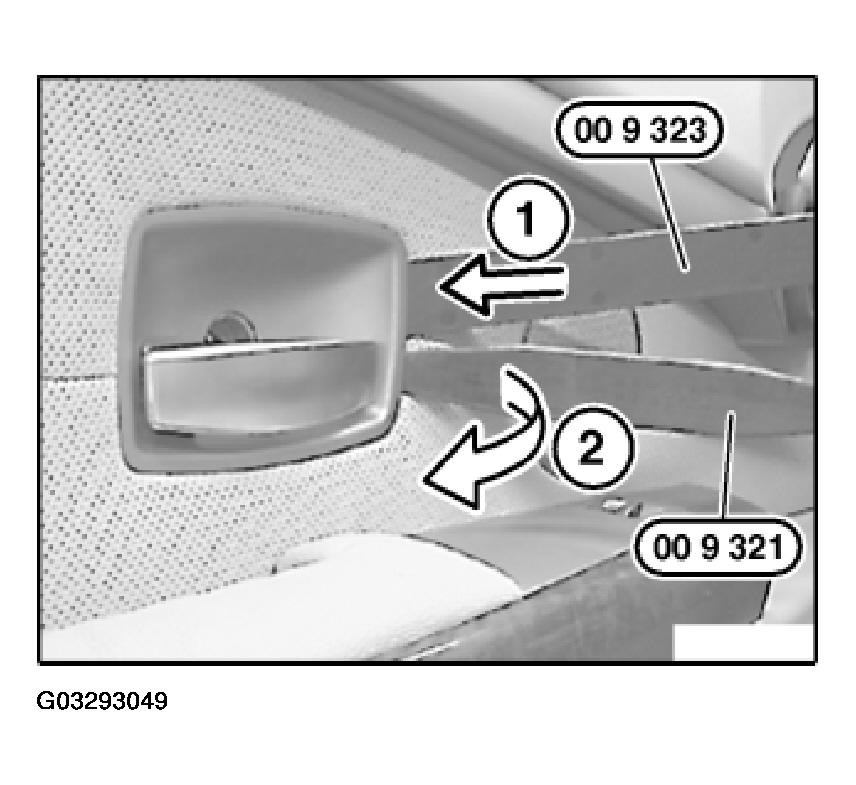

Fig 2: Raising Edge Of Door Opener With Cleaning Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock holder for Bowden cable (1) and remove door opener (2).

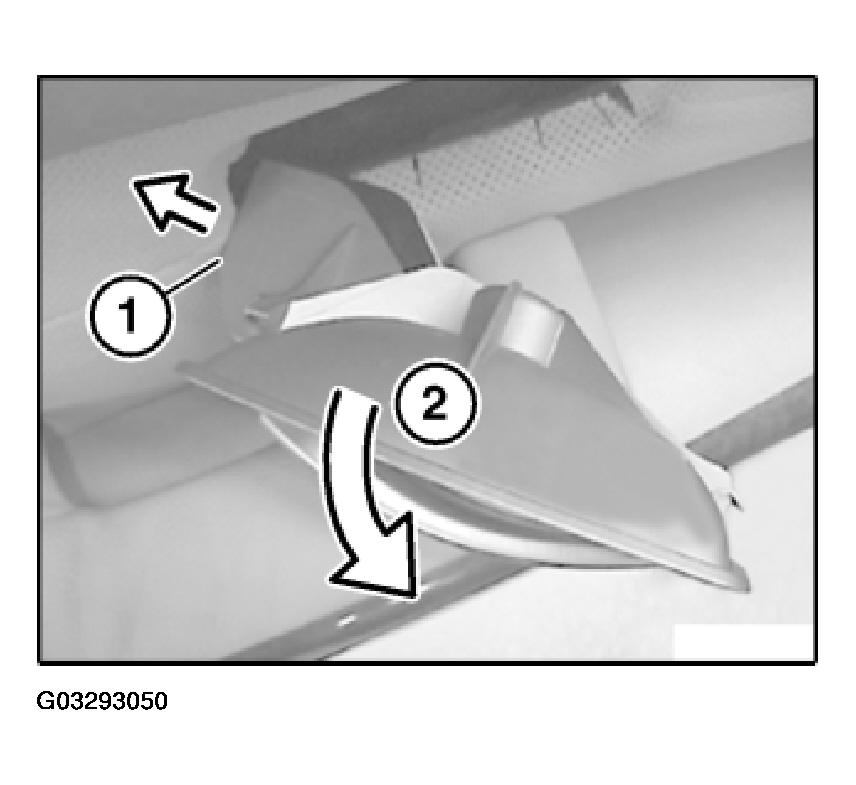

Fig 3: Removing Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place door opener (1) at front on holder for Bowden cable (2) and clip into place.

Lever of door opener must be held "closed" in the process.

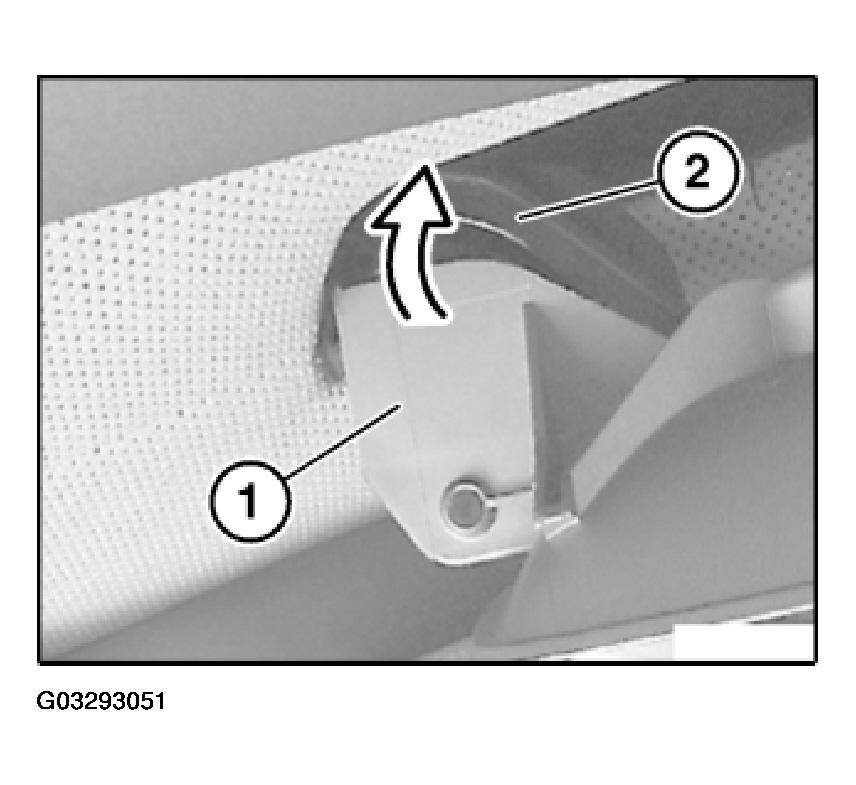

Fig 4: View Of Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.
