51 31 015 Repairing Damage To Windscreens Caused By Pitting (Stone Chips) (Clear And Tinted Laminated Safety Glass)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Field Of Vision (No Repairs Acceptable):

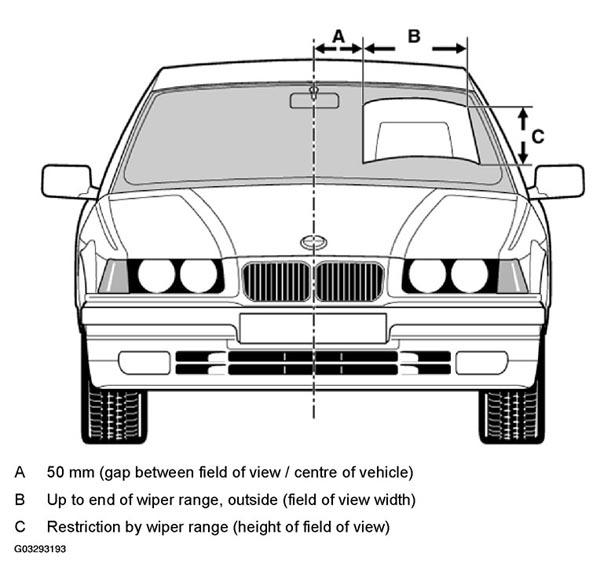

Fig 1: Identifying Field Of Vision (No Repairs Acceptable)
G03293193Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Repairs must only be carried out outside of the field of vision (refer to Fig 1).

If the stone chip damage is outside the field of vision, replace windshield.
