51 47 065 Removing And Installing/Replacing Finishing Strip At Front Left Or Right Entrance

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

Unclip clips (1) for finishing strip (2) with special tool 00 9 317.

Remove finishing strip (2).

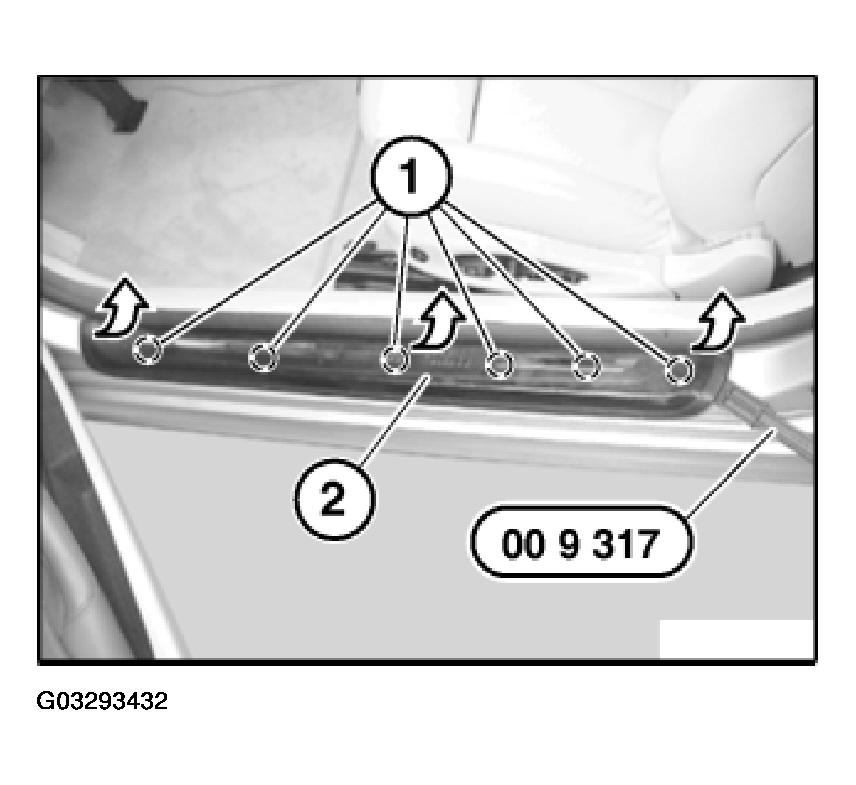

Fig 1: View Of Finishing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1 and 2).

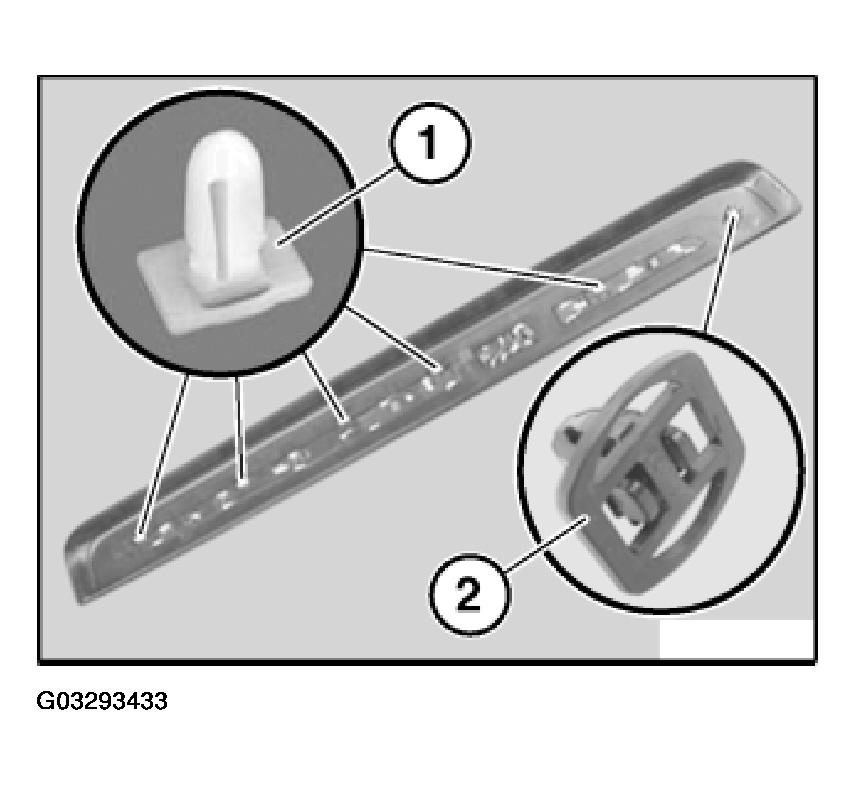

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
