51 47 030 Removing And Installing/Replacing Entrance Cover Strip, Rear (Inside) Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 321

Necessary Preliminary Tasks:

Version With Rear Seat (Normal) Only:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .

Version With Rear Seat (Comfort) Only:

Move rear seat completely towards front and top.

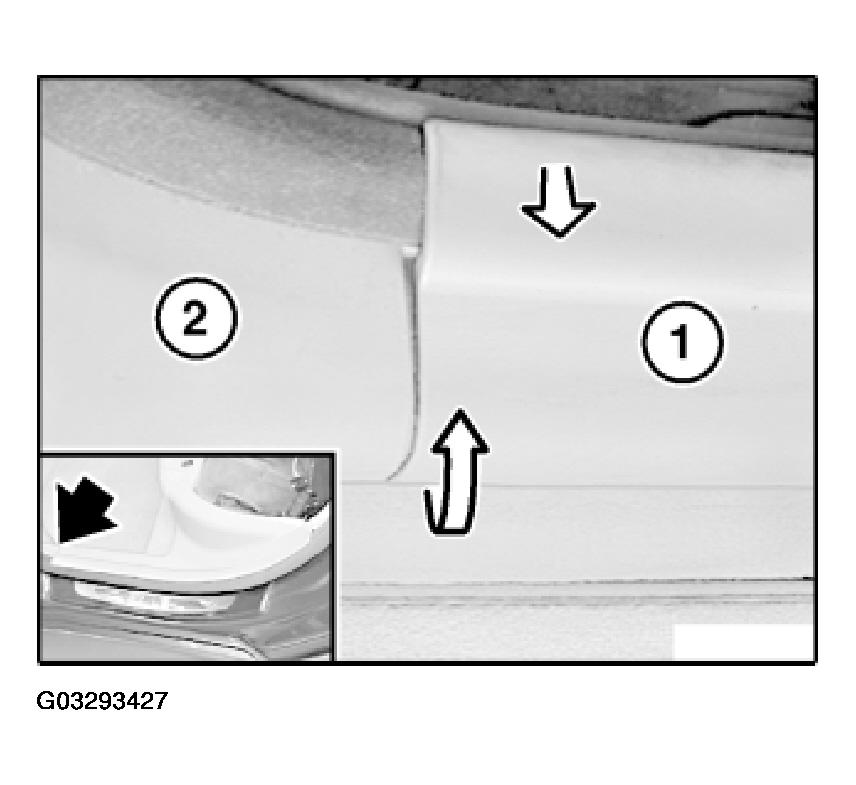

Press entrance cover strip (1) at front towards bottom and feed out from door pillar trim (2).

Fig 1: Removing Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

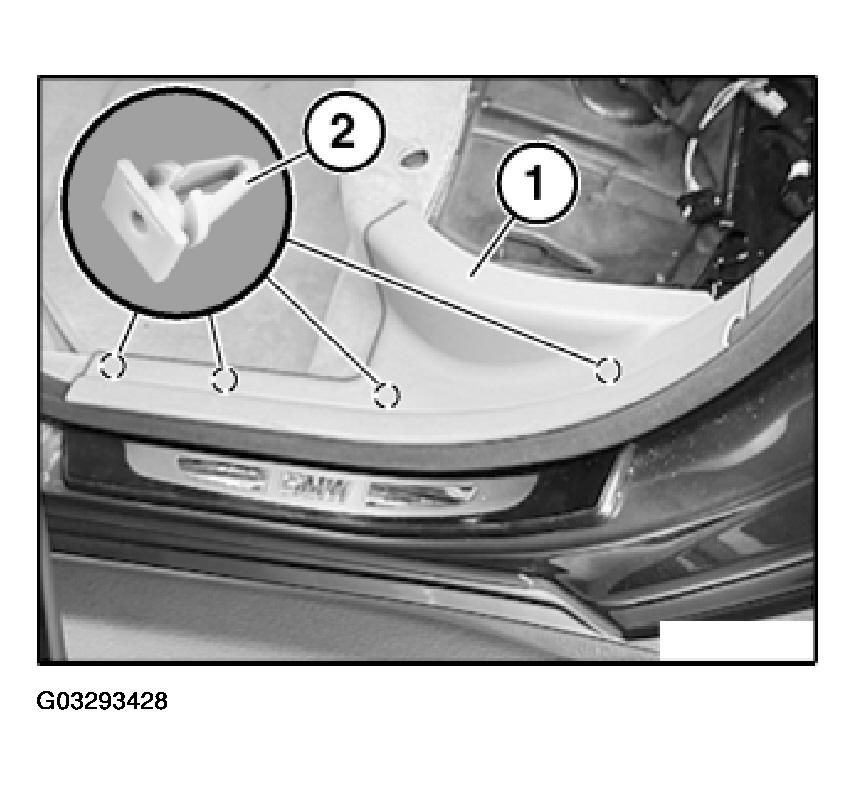

Remove entrance cover strip (1) at front from clips (2) of door pillar.

Fig 2: Locating Entrance Cover Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.

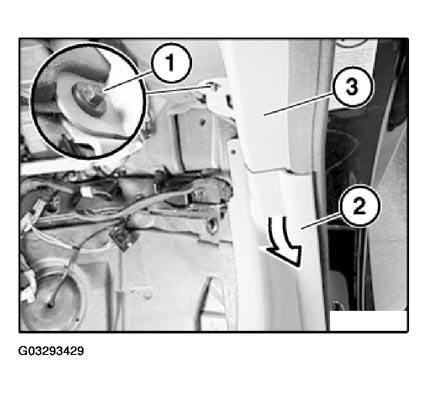

Release plastic nut (1).

Feed cover strip (2) forwards and upwards out of trim (3) if necessary with aid of fishbone 00 9 321 and remove.

If necessary, lever clips with end cutting pliers (head of pliers surface-ground) out of door pillar.

NOTE: If necessary, detach mucket before removing trim on rear comfort seat.

Fig 3: Identifying Plastic Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

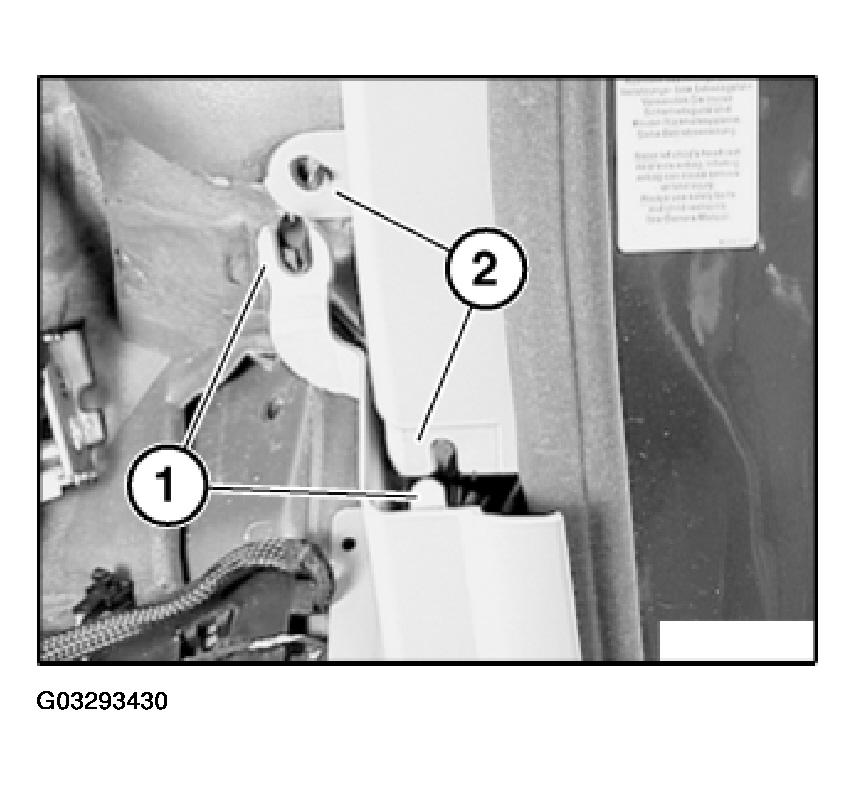

Feed in guide lugs (1) under trim (2).

Fig 4: Installing Guide Lugs Under Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

Clip mounts of entrance cover strip (2) must not be damaged.

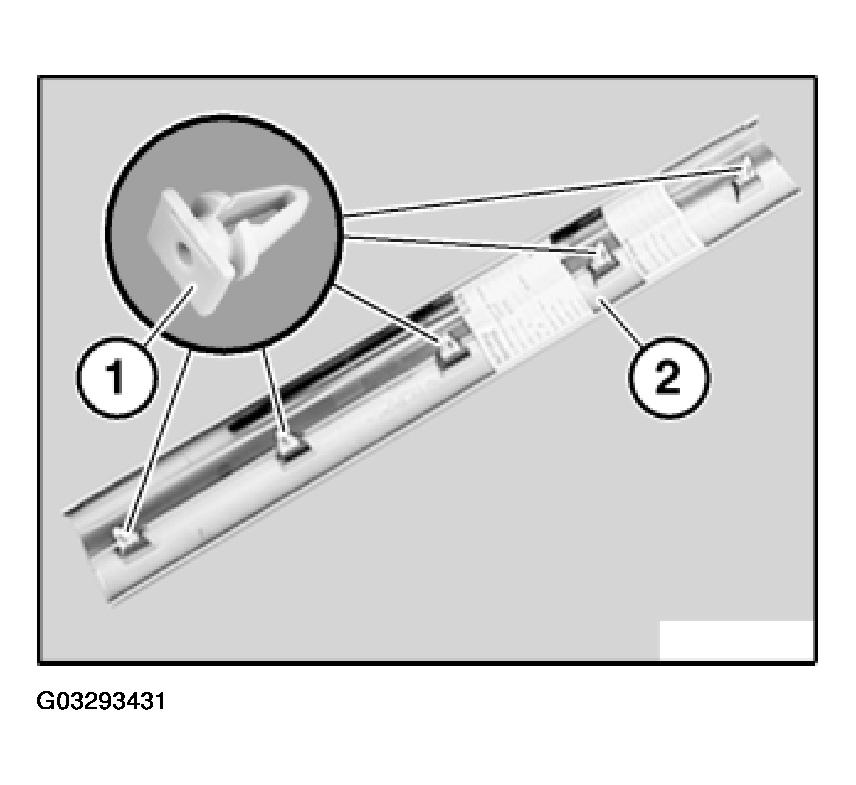

Push clips (1) onto entrance cover strip (2).

Fig 5: View Of Entrance Cover Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
