34 32 980 Replacing Rear Left Or Right Brake Hoses
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Read and comply with General Information. Refer to 34 00 ... GENERAL INFORMATION . Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM
. After completing tasks, bleed brake system. Refer to 34 00 025 REPLACING FLUID IN ABS/ASC+T BRAKE SYSTEM .
Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

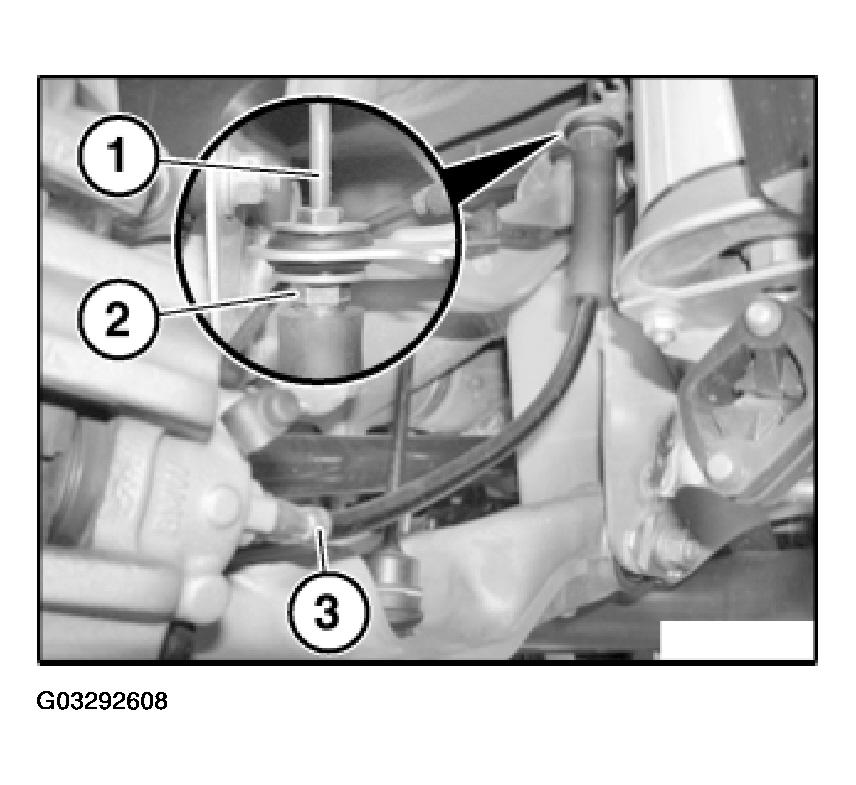

Disconnect brake hose from brake line (1).
Installation:
Tightening torque, refer to 34 32 1AZ in BRAKES - TIGHTENING TORQUES .
IMPORTANT:
Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.
Detach brake hose from brake caliper (3).
Installation:
Tightening torque, refer to 34 32 5AZ in BRAKES - TIGHTENING TORQUES .
