34 33 071 Replacing Vacuum Hose For Brake Booster (N73)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

IMPORTANT:

Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake booster. This makes it easier to remove the PA pipe. Non-return valve and PA pipe are welded together and are replaced together as a single unit.

Remove microfilter (1).

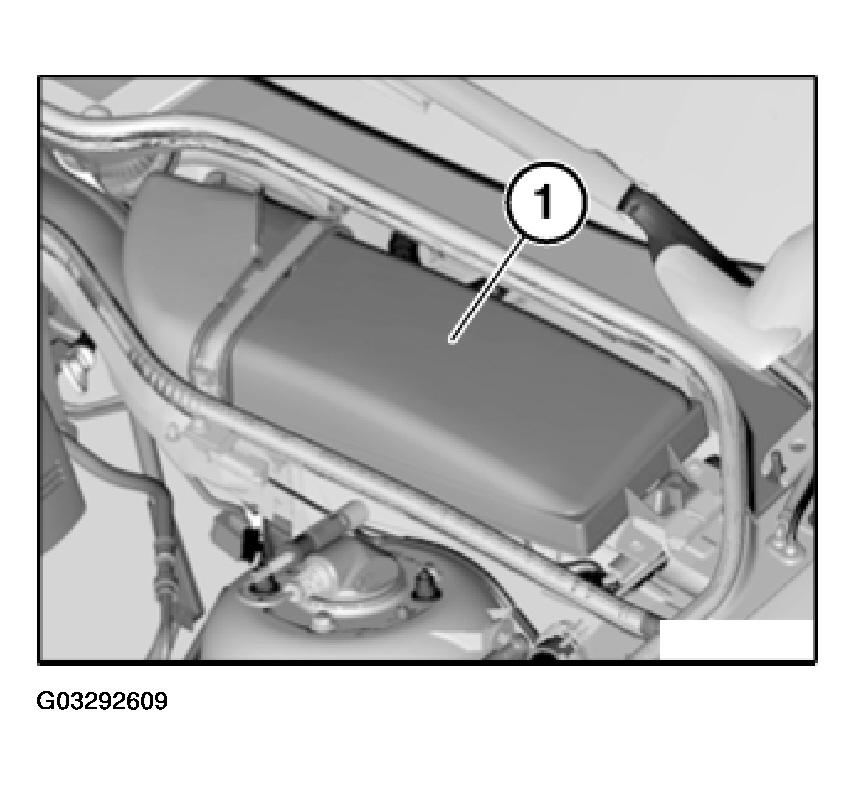

Fig 1: Identifying Microfilter
G03292609Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove cover (1).

Detach non-return valve (2) from brake booster.

Installation:

Check seal in brake booster and replace if necessary.

Make sure cover engages properly.

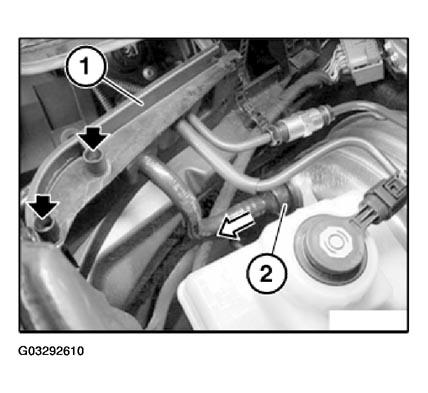

Fig 2: Detaching Non-Return Valve From Brake Booster
G03292610Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clip (1).

Disconnect plug connections (2).

Detach holder (3) from vacuum line.

Installation:

Replace hose clip.

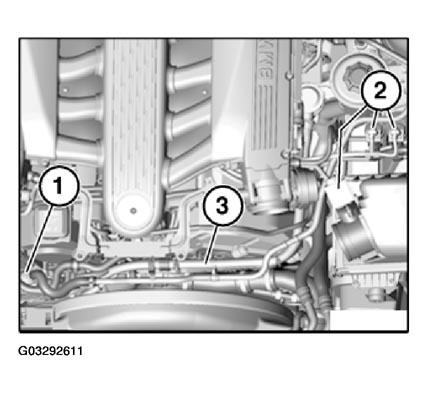

Fig 3: Identifying Hose Clip, Plug Connections And Vacuum Line
G03292611Courtesy of BMW OF NORTH AMERICA, INC.

Detach quick-connect couplings (1) on tank vent valves and line connection.

Unclip purge air line (3) from holder (2) and remove.

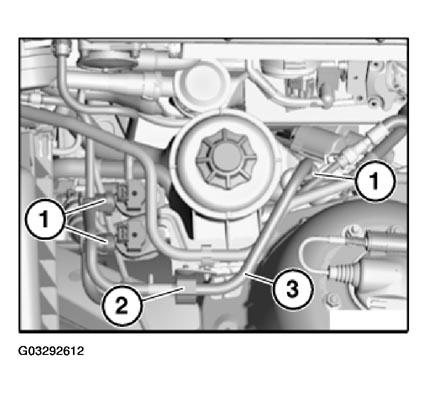

Fig 4: Locating Quick-Connect Couplings
G03292612Courtesy of BMW OF NORTH AMERICA, INC.

Detach holder (1) and feed out vacuum line (2) by twisting upwards.

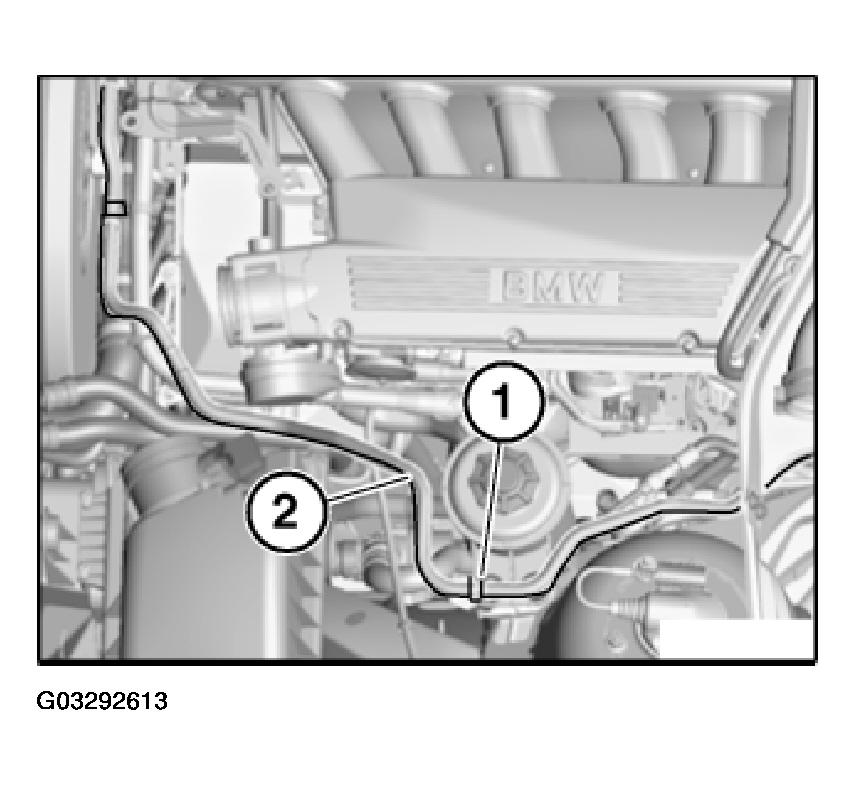

Fig 5: View Of Vacuum Line And Holder
G03292613Courtesy of BMW OF NORTH AMERICA, INC.
