13 90 502 Replacing Tank Vent Valves Cyl. 7 To 12 (N73)

WARNING: This page is about a different car, the 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Read out DME fault memory.

Detach line (1).

Disconnect connector (2).

Detach line (3).

Remove tank vent valve (4) in direction of arrow.

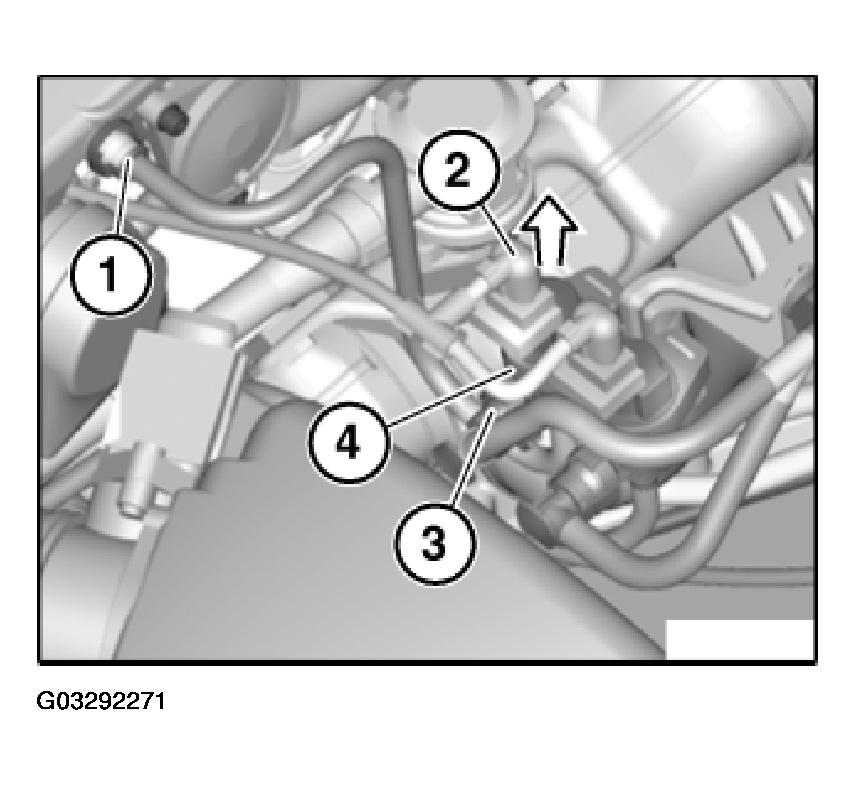

Fig 1: Tank Vent Valve, Lines, Connector And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Check function of DME.
