11 31 070 Checking Camshaft Timing On Left Side (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS .

Special Tools Required:

11 9 190
11 9 461
11 9 462
11 9 463

Cylinders 7 to 12.

Necessary Preliminary Tasks:

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .
Remove left cylinder head cover. Refer to 11 12 005 REMOVING AND INSTALLING/SEALING LEFT CYLINDER HEAD COVER (N73) .
Remove all spark plugs. Refer to 12 12 011 REPLACING ALL SPARK PLUGS (N73) .
Remove fan. Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN CLUTCH (N73) .

Crank engine at central bolt in direction of rotation to firing TDC position of 1st cylinder.

Secure vibration damper with special tool 11 9 190 in firing TDC position of 1st cylinder.

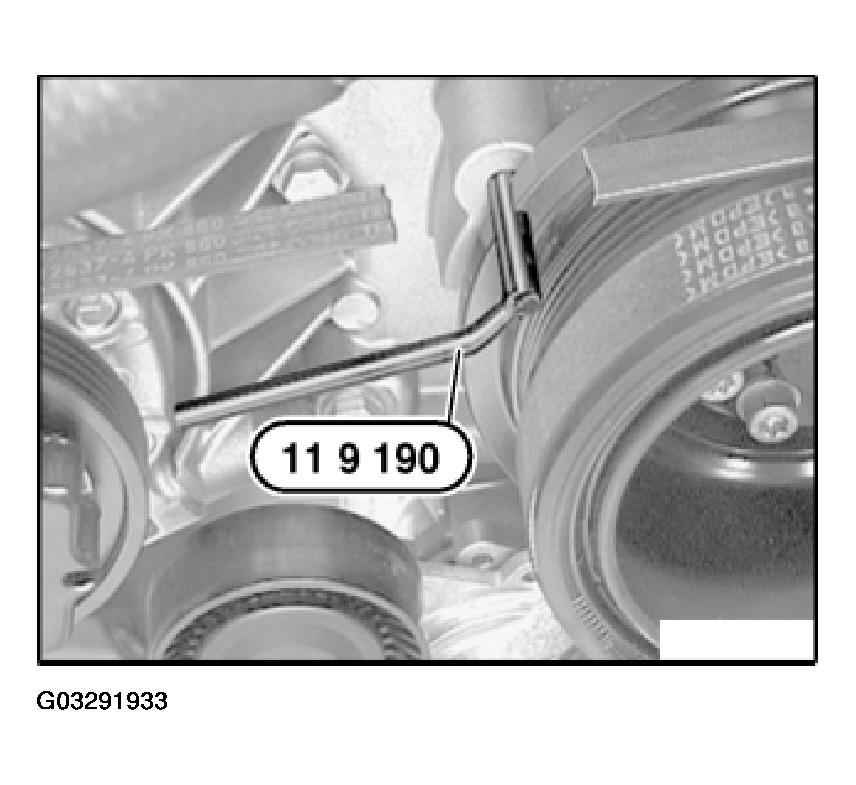

Fig 1: Securing Vibration Damper With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Cams on inlet and exhaust camshafts at 7th cylinder are inclined upwards.

See Fig 2.

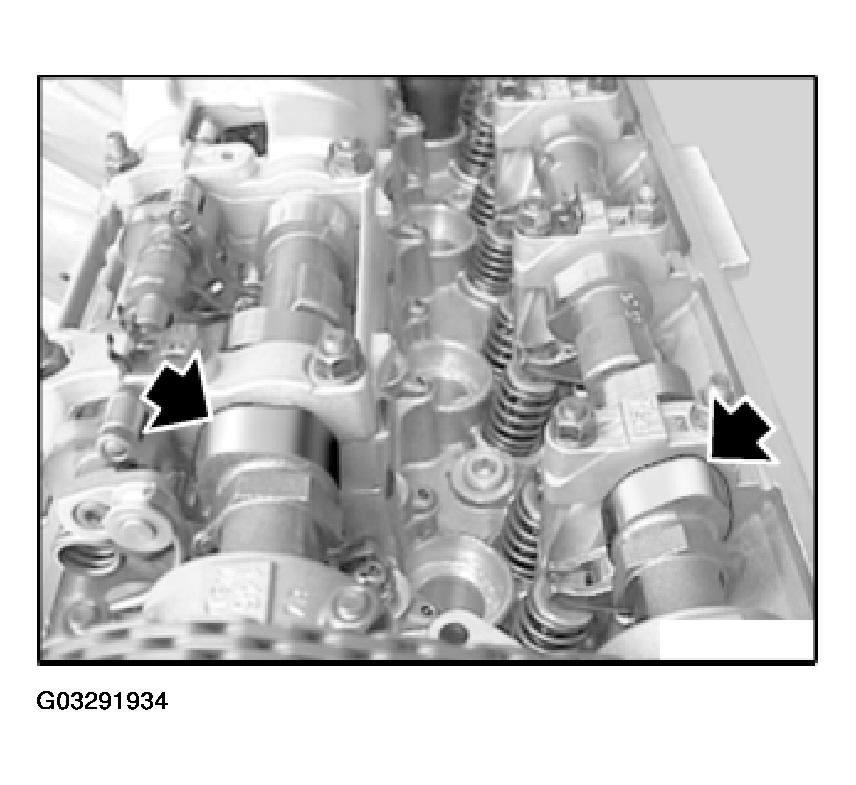

Fig 2: Identifying 7th Cylinder Inlet/Exhaust Camshafts Cam Position

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Screw (1) must not be replaced by an M8 screw (special screw).

Release screw (1).

Unclip oil line (3) from retainer (2) and remove.

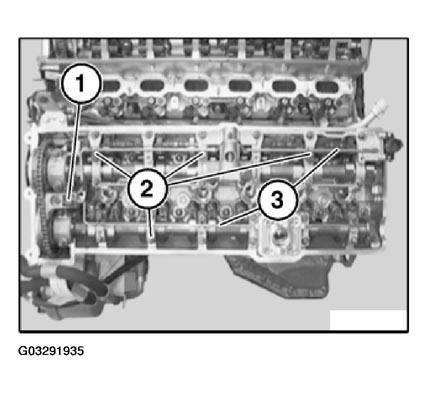

Fig 3: View Of Oil Line In Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The adjustment units are locked in an initial position when the engine is switched off. In individual cases this initial position is not achieved and the camshaft remains rotatable in the VANOS adjustment range. In order to avoid incorrect timing adjustment, it is necessary to check the locking of the VANOS and if necessary perform locking by rotating the camshafts.

Locking Check (Inlet):

Engage hexagon head of camshaft at front and rotate inlet camshaft carefully against direction of rotation.

The inlet VANOS is locked in the initial position when the inlet camshaft is non-positively connected to the inlet VANOS.

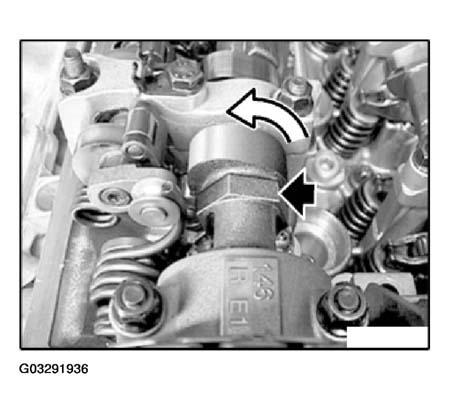

Fig 4: Locking Check (Inlet)

Courtesy of BMW OF NORTH AMERICA, INC.

Locking Check (Exhaust):

Engage hexagon head of camshaft at front and rotate exhaust camshaft carefully in direction of rotation.

The exhaust VANOS is locked in the initial position when the exhaust camshaft is non-positively connected to the exhaust VANOS.

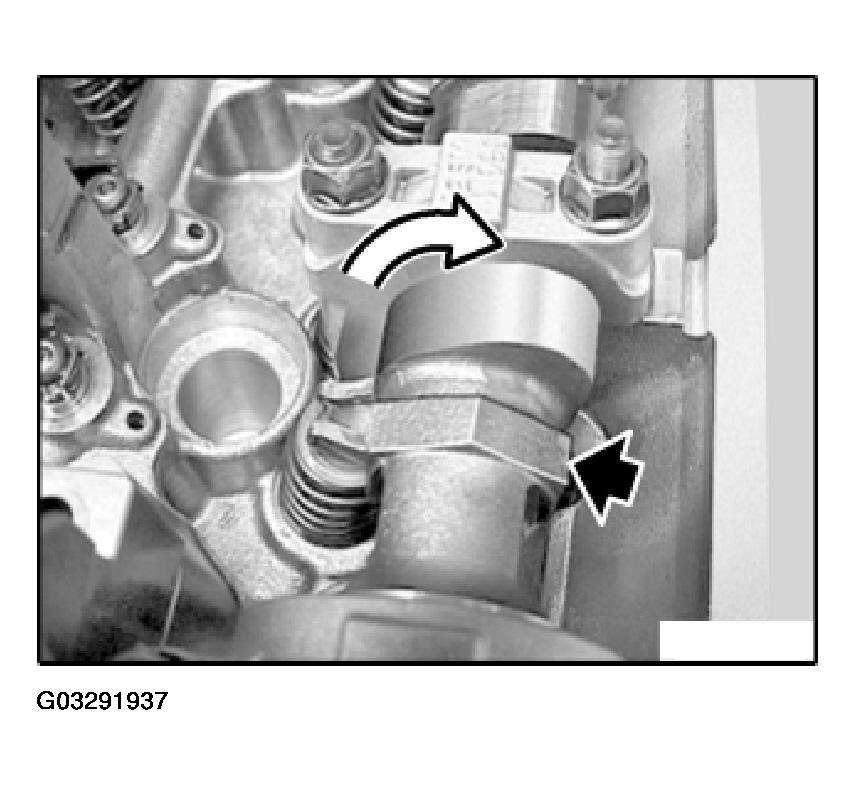

Fig 5: Locking Check (Exhaust)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If the inlet and exhaust VANOS of the camshafts "cannot" be locked as described, the adjustment unit is faulty and must be replaced.

Special tool 11 9 461 for securing inlet camshaft.

Special tool 11 9 462 for securing exhaust camshaft.

Special tool 11 9 463 (holder with screw).

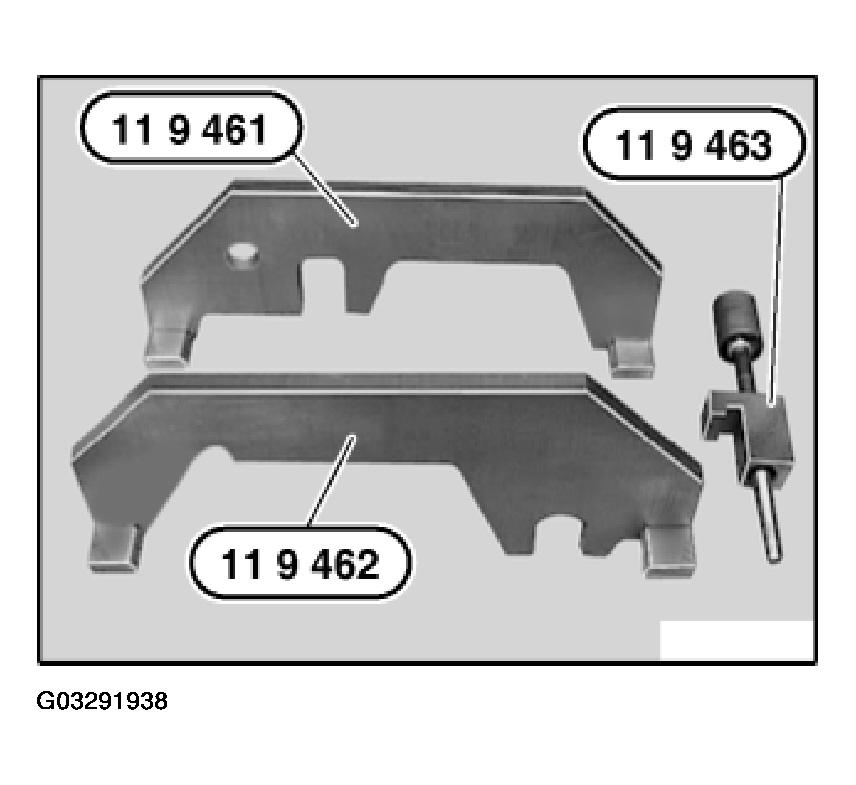

Fig 6: Identifying Gauge With Holder For Securing Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 11 9 461 on inlet camshaft.

Insert special tool 11 9 463 in thread of oil line and tighten down by hand with screw (1).

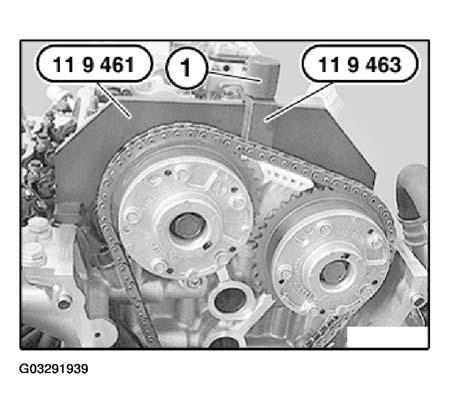

Fig 7: Installing Gauge On Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 9 462 on exhaust camshaft.

Insert special tool 11 9 463 in thread of oil line and tighten down by hand with screw (1).

Fig 8: Installing Gauge On Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The timing is correctly adjusted when special tools 11 9 461 and 11 9 462 rest flat on the cylinder head or protrude by up to 0.5 mm to the exhaust side.

Remove all special tools.

Assemble engine.
