11 31 036 Removing And Installing/Replacing Left Exhaust Camshaft (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Cylinders 7 to 12.

Necessary Preliminary Tasks:

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (N73) .
Remove left cylinder head cover. Refer to 11 12 005 REMOVING AND INSTALLING/SEALING LEFT CYLINDER HEAD COVER (N73) .
Remove exhaust adjustment unit on left side. Refer to 11 36 047 REMOVING AND INSTALLING/REPLACING INLET AND EXHAUST VANOS ON LEFT SIDE (N73) .
Remove timing case cover at top left. Refer to 11 14 080 REMOVING AND INSTALLING TOP LEFT TIMING CASE COVER (N73) .

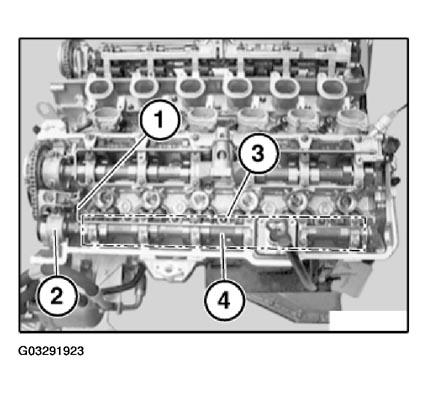

Remove oil line (1).

Bearing cap (2) of exhaust camshaft, release screws and remove.

Release nuts of bearing caps 7 to 12 in area (3) from outside to inside and set down in order.

IMPORTANT: Cylinder head and bearing cap are matched to each other and must not be mixed up. Risk of damage.

Remove exhaust camshaft (4).

Installation:

Tightening torque, refer to 11 31 1AZ in ENGINE - TIGHTENING TORQUES .

Fig 1: Locating Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

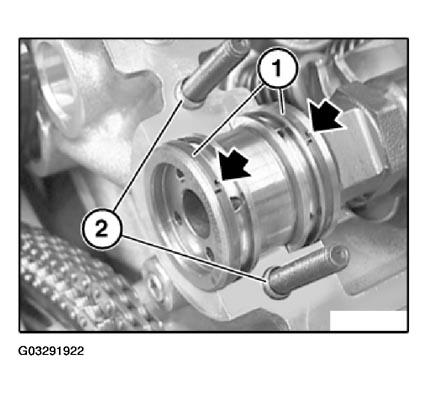

IMPORTANT: Plain compression rings (1) can easily break.

Remove and install/replace plain compression rings (1).

Plain compression rings (1) are engaged at joint.

Press compression ring (1) on one side into groove, press upwards from below on other side and remove catch.

Carefully pull compression ring (1) apart and remove towards front.

Installation:

Install compression rings in reverse sequence to their removal.

Fig 2: Locating Plain Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

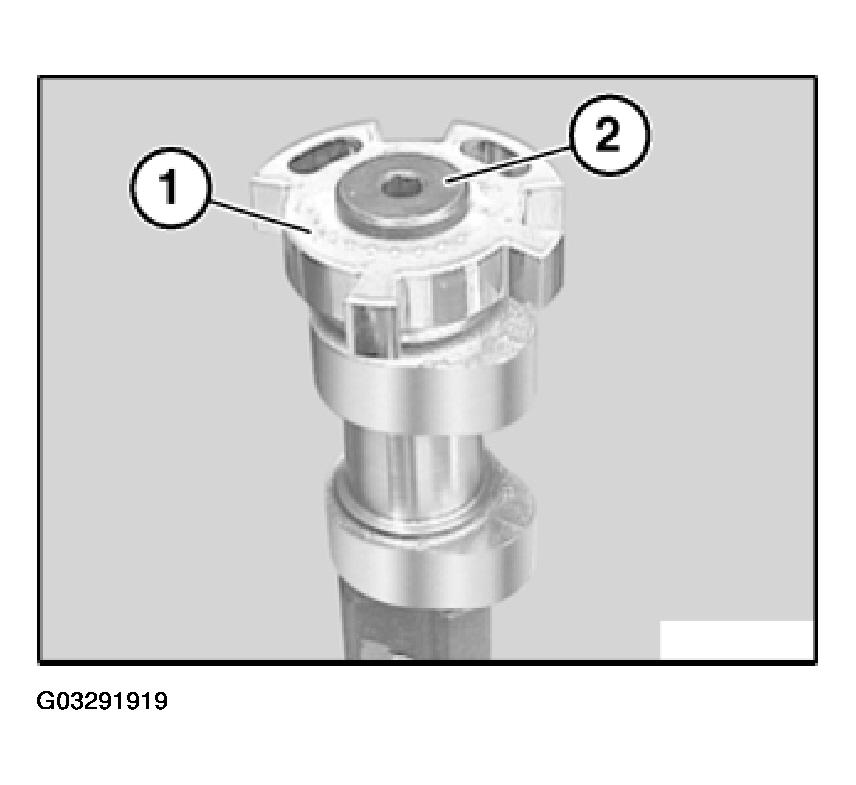

Release screw (2) and remove sensor gear (1).

Installation:

Tightening torque, refer to 11 31 14AZ in ENGINE - TIGHTENING TORQUES .

Fig 3: Identifying Sensor Gear Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

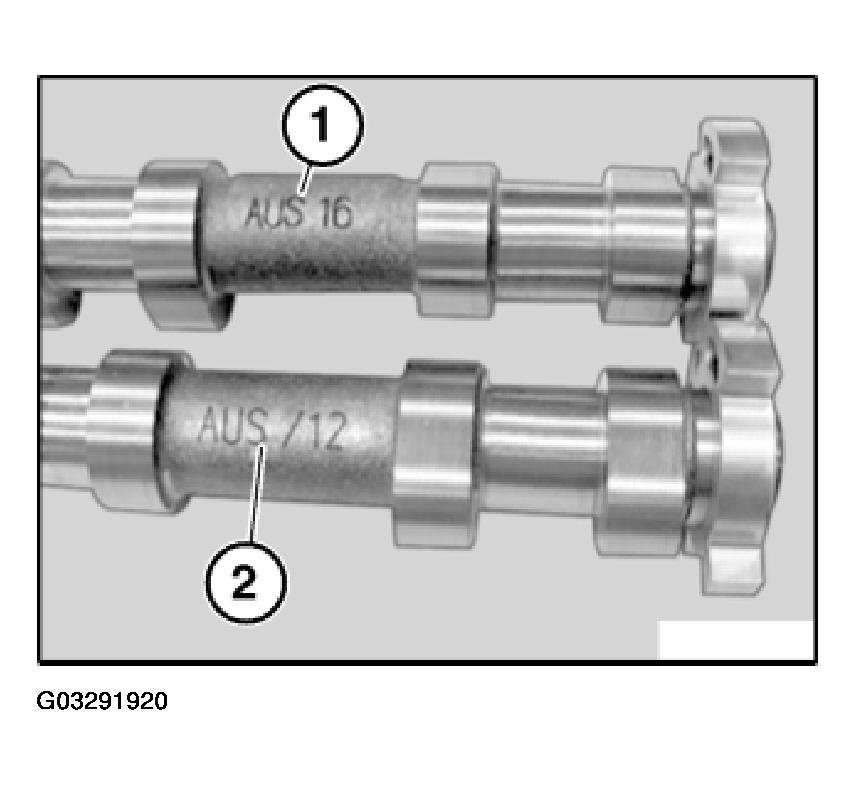

IMPORTANT: Danger Of Mixing Up Exhaust Camshafts.

Exhaust camshaft for cylinders 1 to 6 is marked as shown in illustration with AUS 16.
Exhaust camshaft for cylinders 7 to 12 is marked as shown in illustration with AUS 712.

Fig 4: Identifying Exhaust Camshaft (Cylinders 1 To 6/7 To 12)
Courtesy of BMW OF NORTH AMERICA, INC.

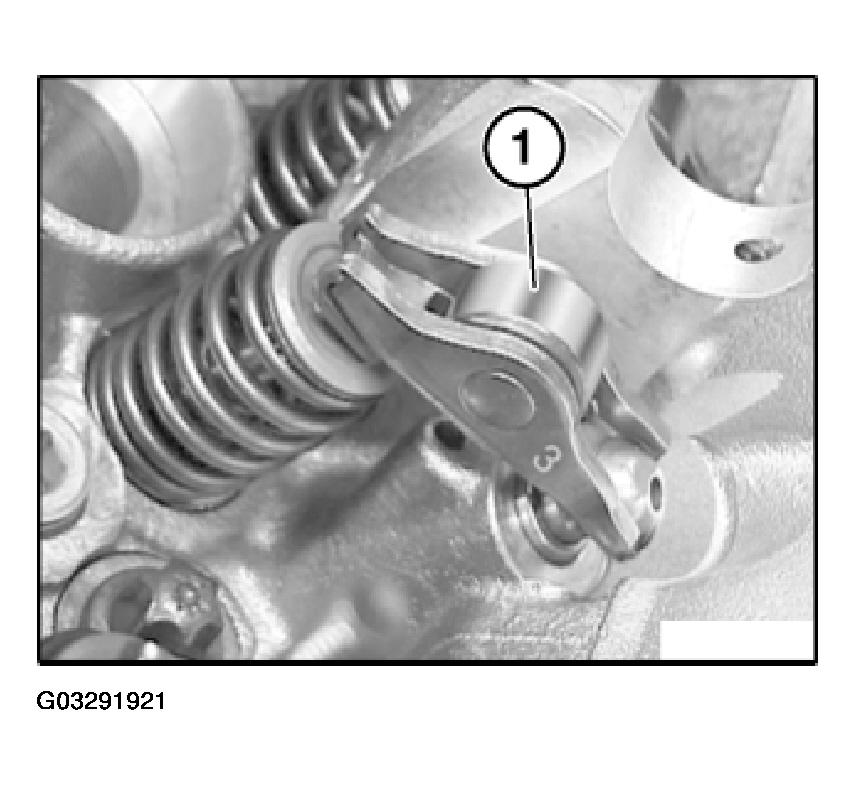

IMPORTANT: Make sure rocker arms (1) are secured as illustrated on hydraulic valve clearance compensating elements and on valves. Used rocker arms may only be reused in the same position.

Fig 5: Identifying Rocker Arms Position

Courtesy of BMW OF NORTH AMERICA, INC.

Check dowel sleeves (2) for damage and correct installation position.

Ends of compression rings point upwards.

Fig 6: Locating Dowel Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Fit bearing cover.

Tighten down nuts of bearing bracket for cylinders 7 to 12 in area (1) from inside to outside.

Fit bearing cap (2) and tighten down.

Installation:

Make sure bucket tappets of high-pressure pump in bearing cap 5 are in correct installation position.

Installation:

Tightening torque, refer to 11 31 1AZ in ENGINE - TIGHTENING TORQUES .

Fig 7: Installing Exhaust Camshaft Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine in reverse sequence to its disassembly.

Installation:

Clean all bearings and cams of exhaust camshaft and lubricate with engine oil.
