11 31 034 Removing And Installing/Replacing Right Inlet Camshaft (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS .

Special Tools Required:

11 9 473

(Cylinder bank 1 to 6)

Necessary Preliminary Tasks:

Remove right cylinder head cover. Refer to 11 12 006 REMOVING AND INSTALLING/SEALING RIGHT CYLINDER HEAD COVER (N73) .
Remove all spark plugs. Refer to 12 12 011 REPLACING ALL SPARK PLUGS (N73) .
Remove inlet and exhaust VANOS on right side. Refer to 11 36 048 REMOVING AND INSTALLING/REPLACING INLET AND EXHAUST VANOS ON RIGHT SIDE (N73) .
Remove right intermediate lever. Refer to 11 37 014 REMOVING AND INSTALLING/REPLACING RIGHT INTERMEDIATE LEVERS (N73) .

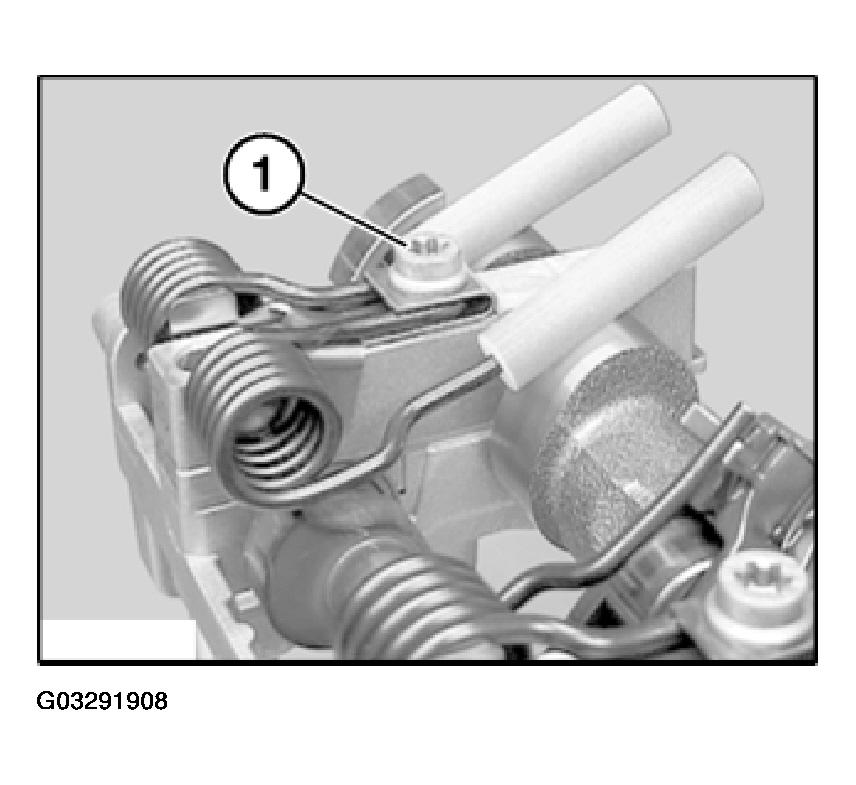

Release screw (1) and remove torsion spring.

NOTE: Remove torsion springs of cylinders 1 to 5 in accordance with same procedure.

Fig 1: Identifying Torsion Spring Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 473.

Mark bearing caps 1 to 6 and remove.

IMPORTANT: Bearing cap and bearing bracket are matched to each other and must not be mixed up. Risk of damage.

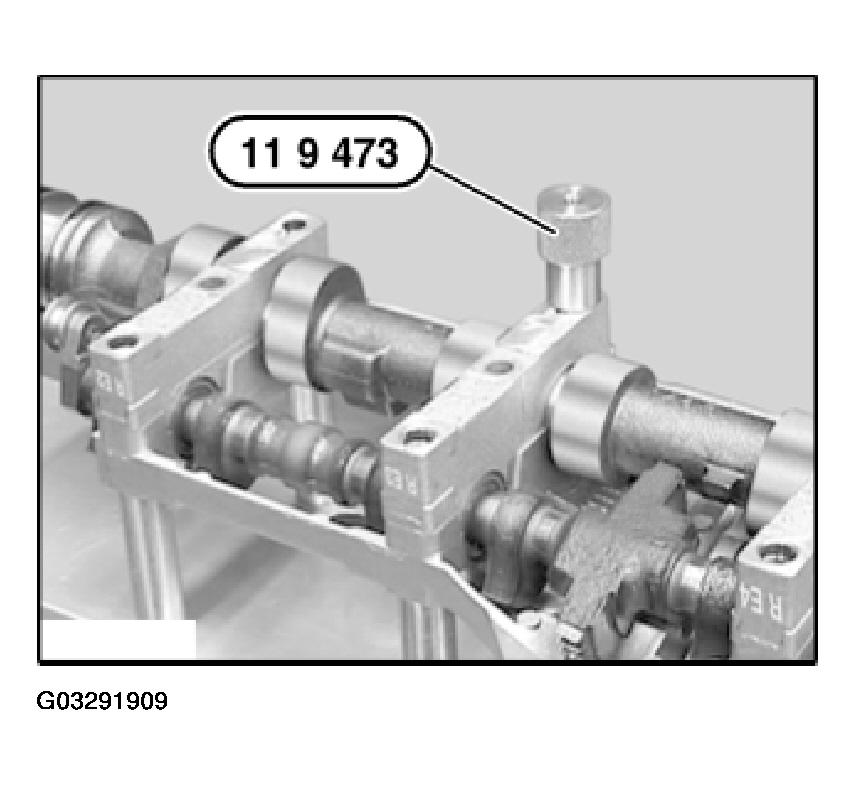

Fig 2: Removing Knurled Nut

Courtesy of BMW OF NORTH AMERICA, INC.

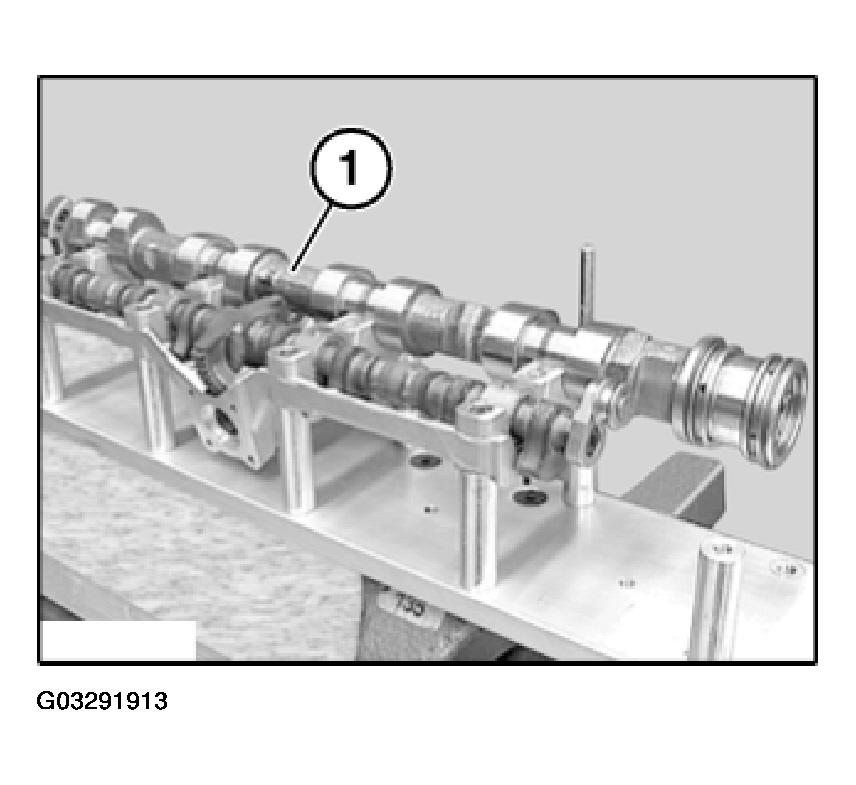

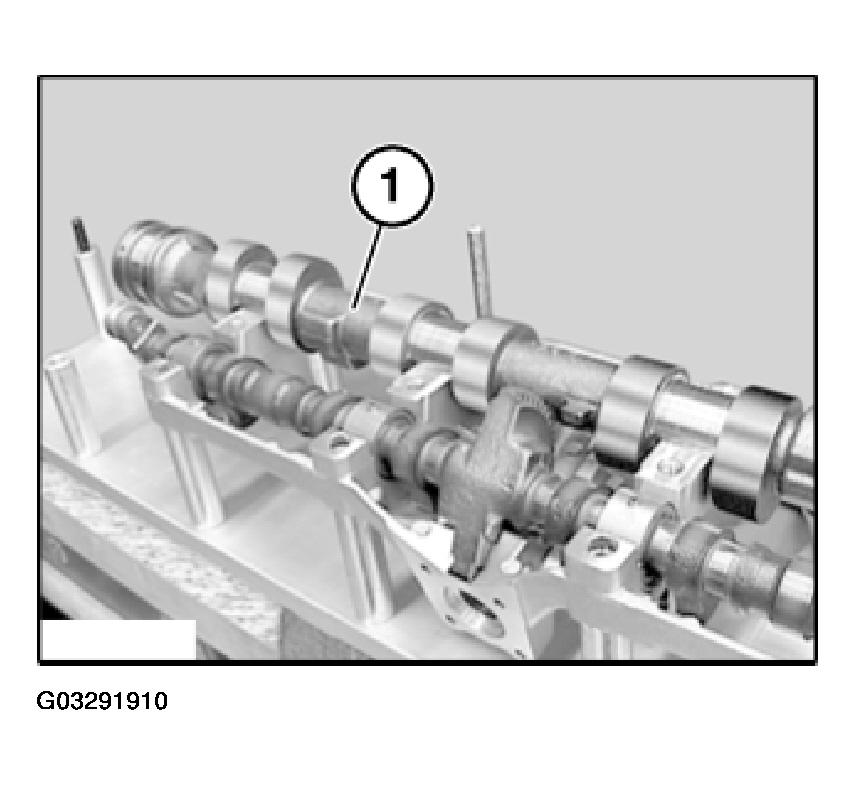

Lift out inlet camshaft (1).

Installation:

Clean all bearings and cams of inlet camshaft and lubricate with engine oil.

Fig 3: Removing Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

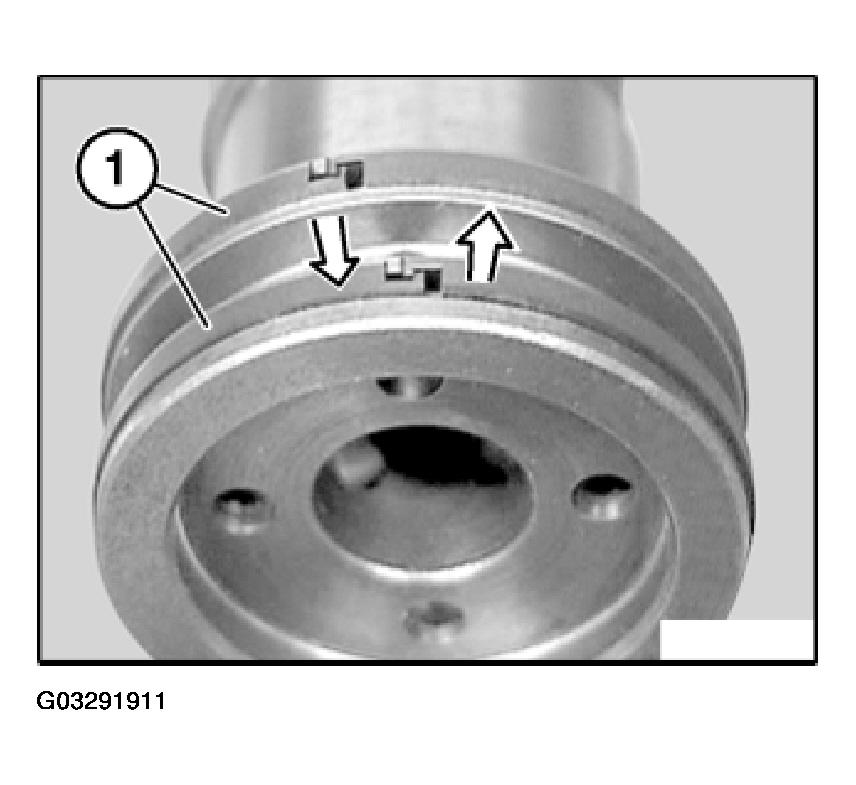

IMPORTANT: Plain compression rings (1) can easily break.

Remove and install/replace plain compression rings (1).

Plain compression rings (1) are engaged at joint.

Press compression ring (1) on one side into groove, press upwards from below on other side and remove catch.

Carefully pull compression ring (1) apart and remove towards front.

Installation:

Install compression rings in reverse sequence.

Fig 4: Locating Plain Compression Rings

Courtesy of BMW OF NORTH AMERICA, INC.

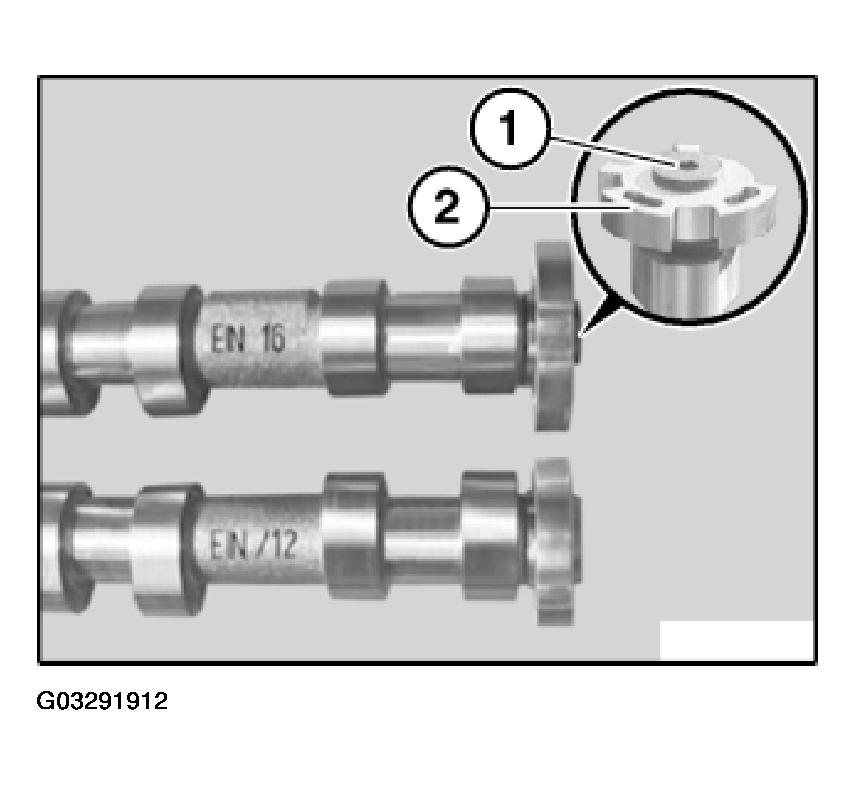

Release screw (1) and remove sensor gear (2).

Installation:

Inlet camshaft of cylinders 1 to 6 is marked with Ein 16.

Sensor gear (2) has a lug for locating in the inlet camshaft.

Tightening torque, refer to 11 31 14AZ in ENGINE - TIGHTENING TORQUES .

Fig 5: Locating Sensor Gear Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure bearing shells (1) of eccentric shaft are engaged in bearing bracket.

Graphic representation N62.

Fig 6: View Of Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

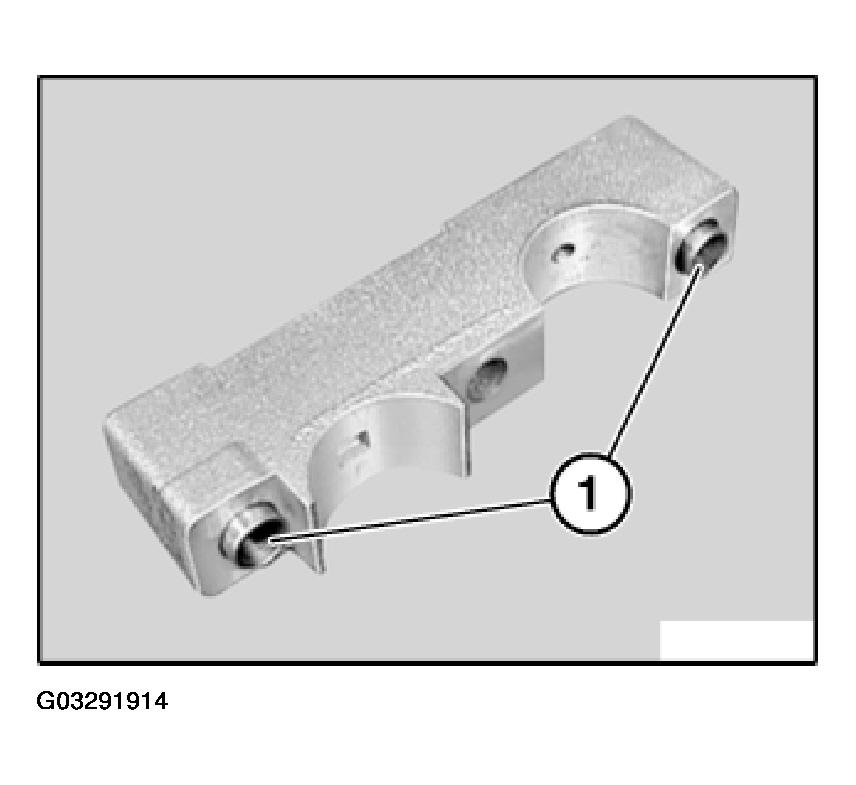

Check dowel sleeves (1) for damage.

Fig 7: Locating Dowel Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Fit bearing caps 2 to 7.

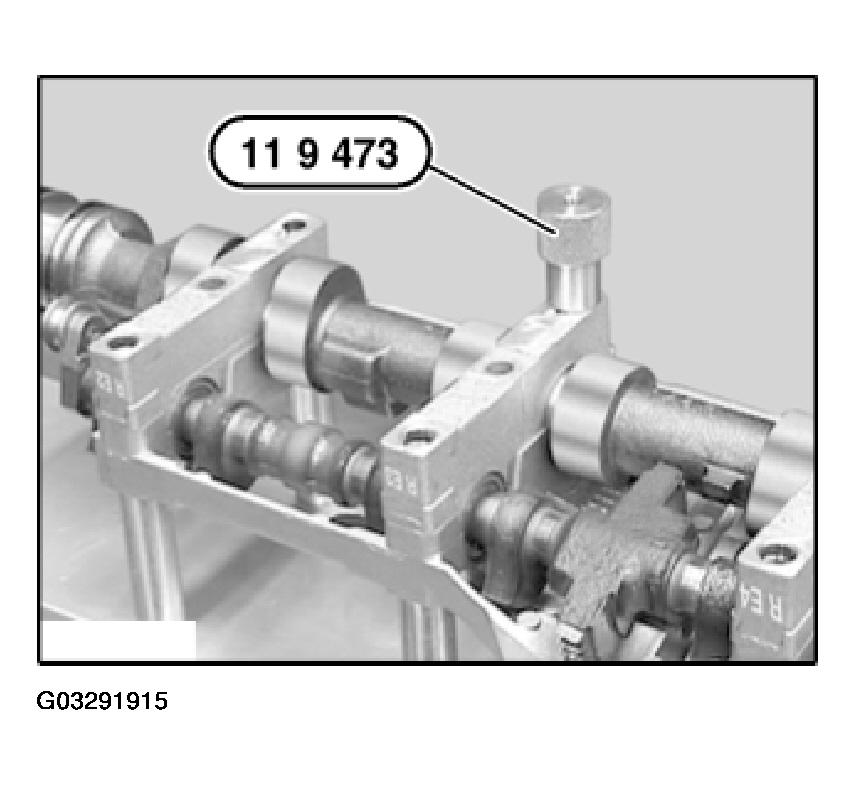

Screw on special tool 11 9 473 and secure bearing bracket.

Fig 8: Installing Knurled Nut

Courtesy of BMW OF NORTH AMERICA, INC.

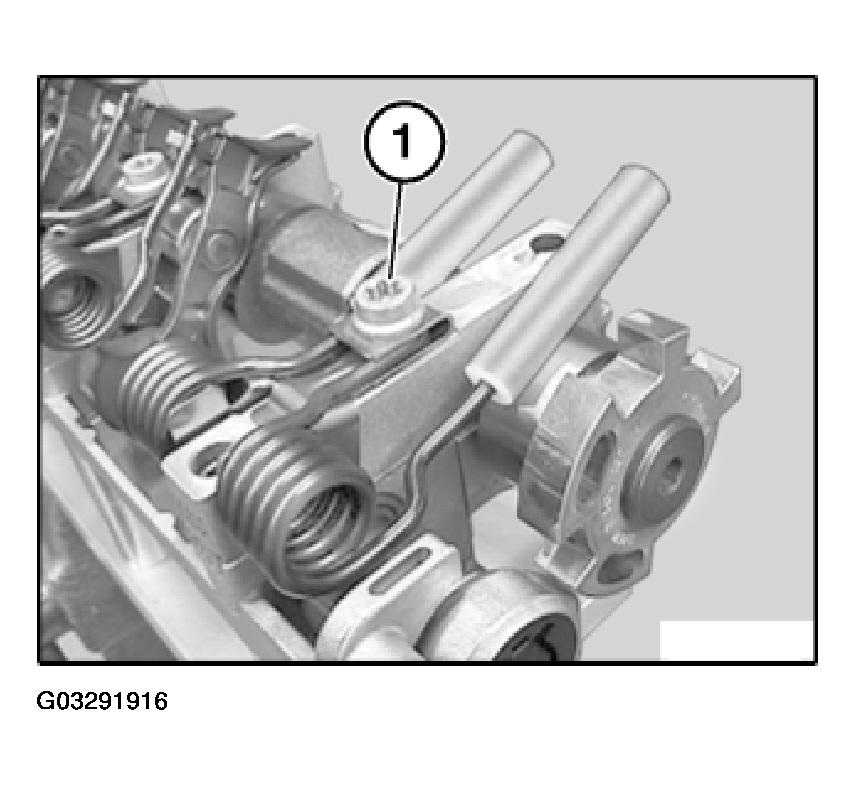

Insert all torsion springs with screw (1) and tighten down.

Fig 9: Identifying Torsion Spring Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine in reverse sequence to its disassembly.

Installation:

Clean all bearings and cams of inlet camshaft and lubricate with engine oil.
