84 50 050 Removing and installing/replacing basic antenna

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Remove warning triangle.

Unlock plug connection (1) and disconnect.

Release cap nuts (2).

Remove basic antenna (3) in direction of arrow.

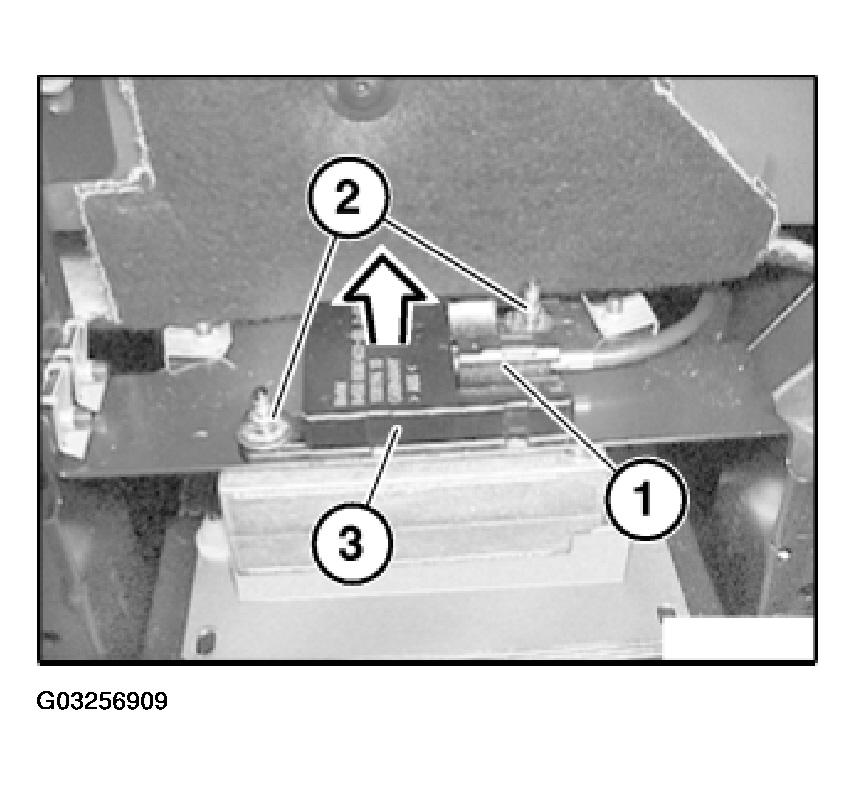

Fig 1: Removing Basic Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace cap nuts (2).
