67 31 511 Removing and installing/replacing drive for seat tilt adjustment (front seat removed)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (4).

NOTE: Secure drive for seat tilt adjustment (5) against falling out.

Loosen screws (1).

Remove drive for seat tilt adjustment (5) with fixture for plug connection (3) in direction of arrow from flange (2).

If necessary, remove inner drive shaft from drive for seat tilt adjustment (5).

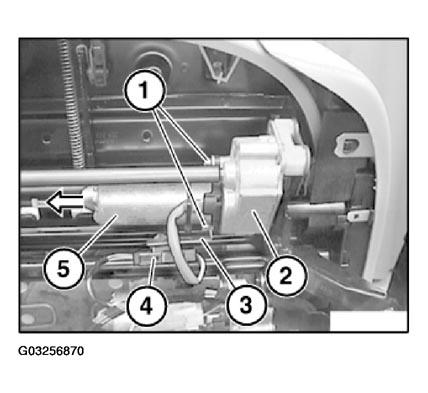

Fig 1: Removing Drive For Seat Tilt Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure drive shaft (1) is correctly seated.

Ensure fixture for plug connection (3) and drive for seat tilt adjustment (4) on flange (2) are correctly seated.

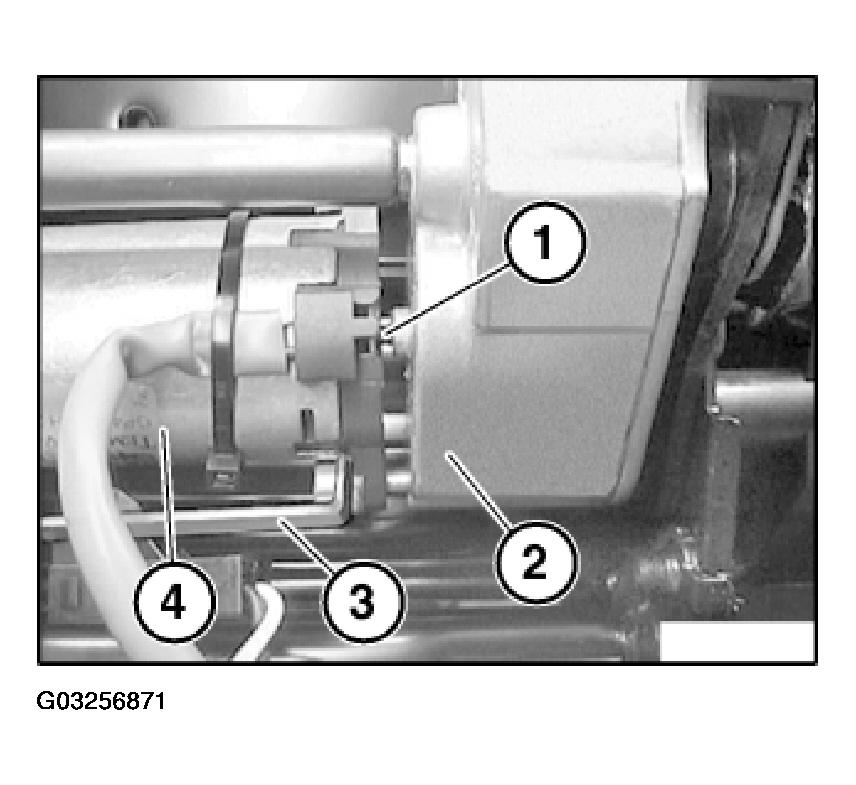

Fig 2: Locating Fixture For Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
