65 52 013 Removing and installing complete on-board monitor (widescreen)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

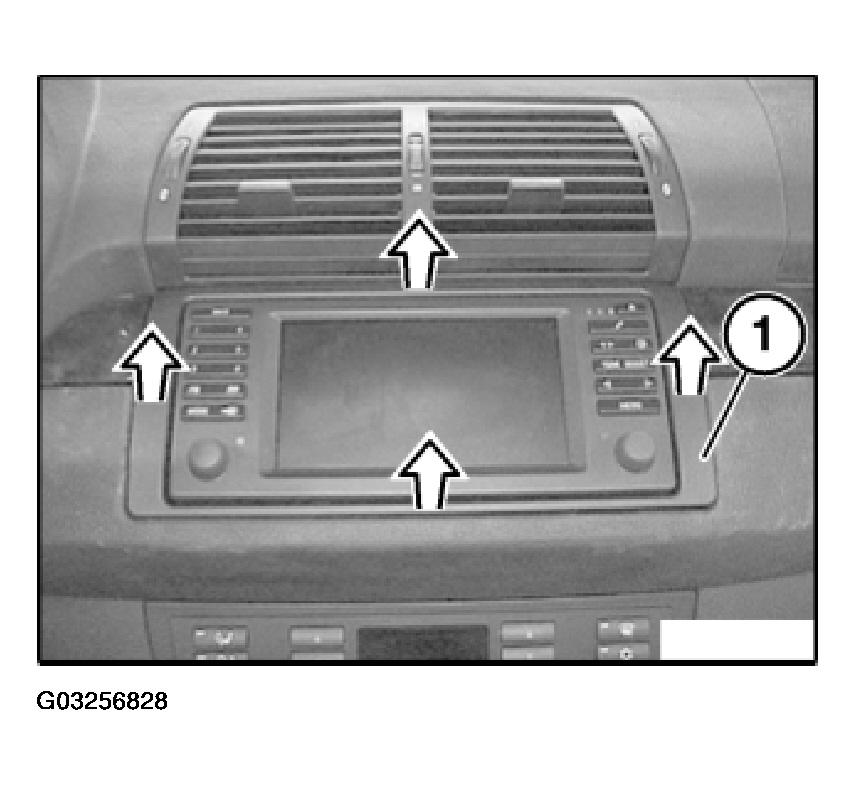

Unclip frame of on-board monitor (1) in direction of arrow and remove.

Fig 1: Removing Frame Of On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

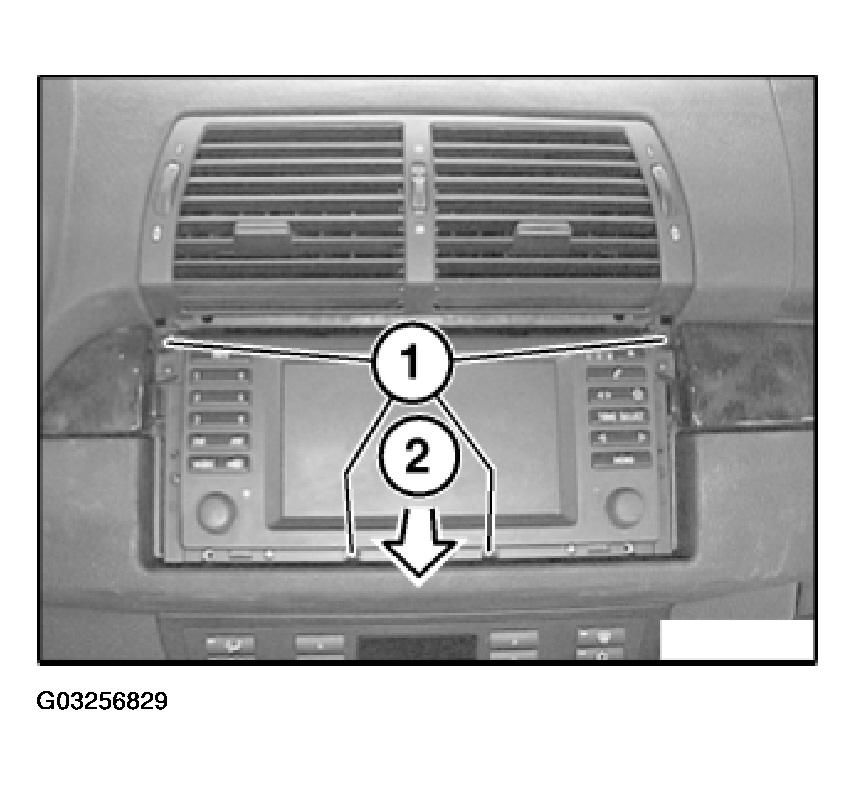

Loosen screws (1).

Pull out complete on-board monitor (2) in direction of arrow.

Fig 2: Pulling Out On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

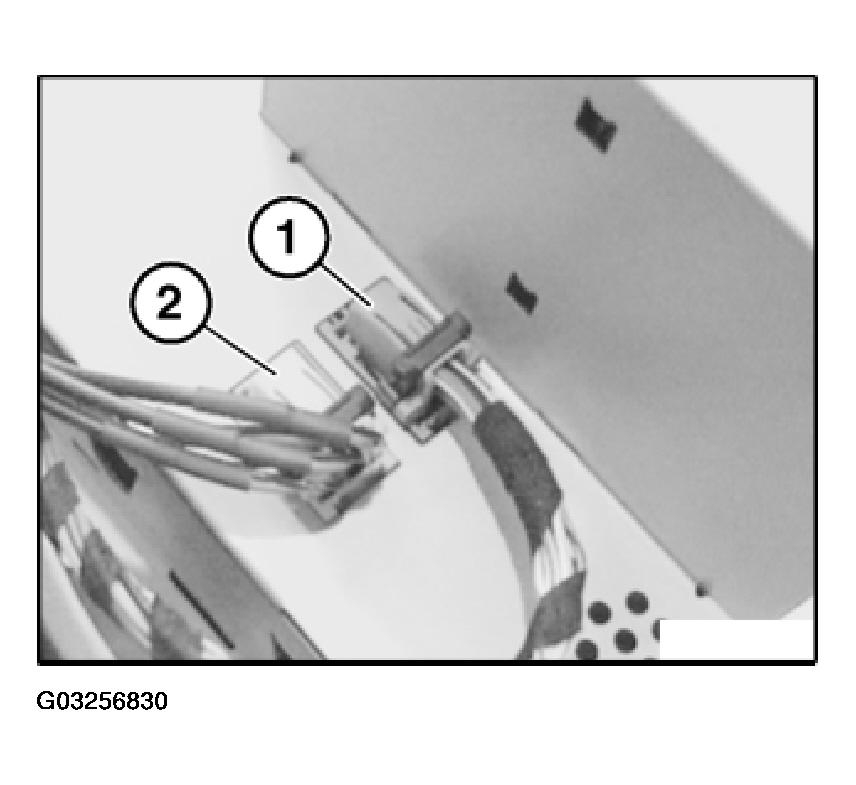

Unlock plug connections (1) and (2) and disconnect.

Remove complete on-board monitor.

Fig 3: Unlocking Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
