65 77 551 Removing and installing impact sensor for left or right side airbag (multiple restraint system 4)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS . Incorrect handling can activate airbag and cause injury.

Turn ignition key to 0 position.

Remove left or right front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) or 52 17 000 REMOVING AND INSTALLING FRONT SE AT (COMFORT) .

Remove entrance cover strip. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Lift carpet floor (1) in area of front seat.

Disconnect plug connection (2) in direction of arrow.

Release screws (3) and remove impact sensor for side airbag (4).

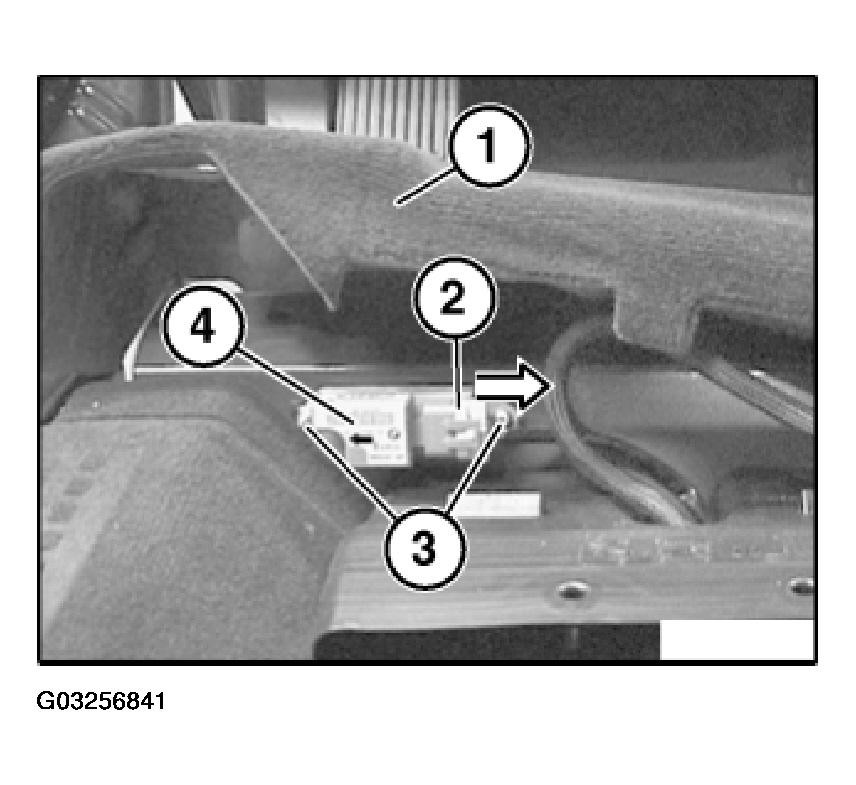

Fig 1: Removing Impact Sensor For Side Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Arrow on impact sensor for side airbag (4) must point to sill.

Observe tightening torque, (5.5 N.m.).
