64 53 550 Removing and installing or replacing condenser for air conditioner

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

A/C system is drawn off. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .

Remove intake hood. Refer to 17 11 031 REPLACING FAN COWL (M62/M54) .

M54, M62 Only:

Remove intake filter housing. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54) .

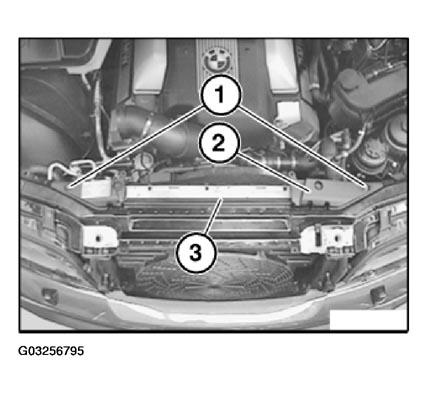

Release screws (1) and remove radiator bracket (2). Detach rubber strip (3).

Fig 1: Identifying Radiator Bracket Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

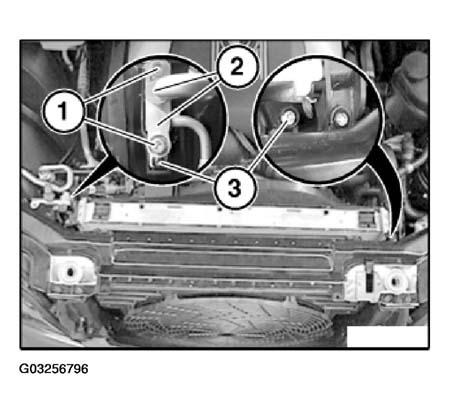

Release screws (1) and detach lines (2).

Fig 2: Locating Screws For Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

Release screws (3).

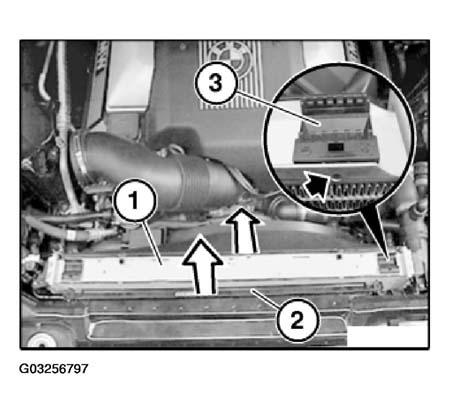

Gently press cooler (1) towards rear and lift out A/C condenser (2).

Installation:

Lugs of plastic guides (3) must be securely engaged in bores.

Replace faulty plastic guides.

Fig 3: Locating Lugs Of Plastic Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If A/C system is opened for more than 24 hours:

Replace desiccator insert. Refer to 64 53 515 REPLACING DRIER INSERT FOR A/C SYSTEM .
