63 99 451 Replacing light bulb for luggage compartment lighting

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Move lens cover (1) in direction of arrow and remove.

Lever out bulb (2).

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.

Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E53 .

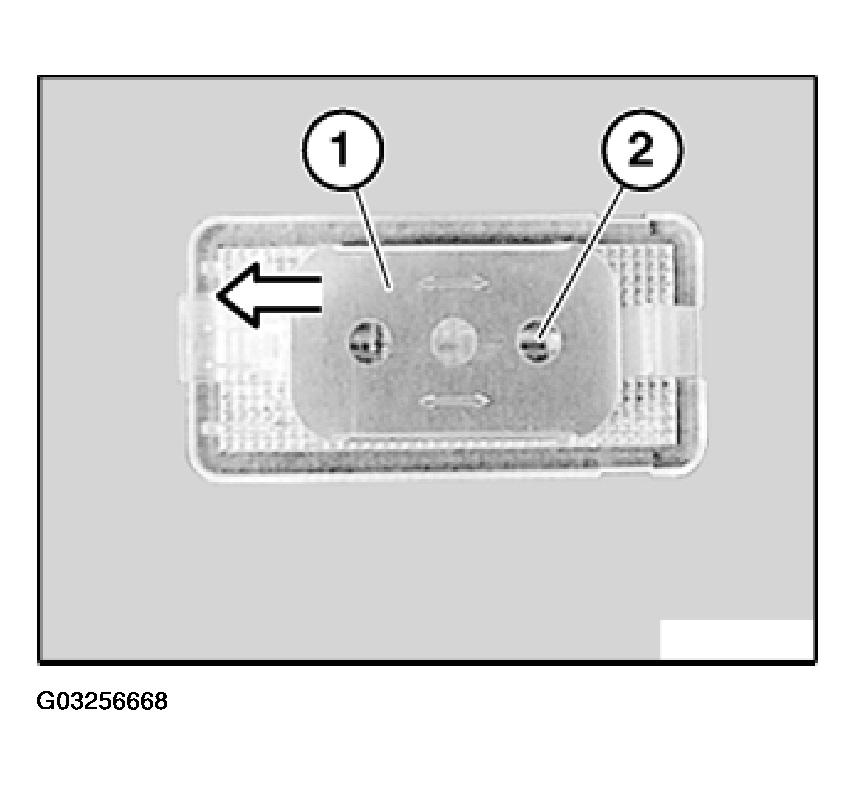

Fig 1: Removing Lens Cover

Courtesy of BMW OF NORTH AMERICA, INC.
