63 99 071 Replacing halogen-light bulb for left or right headlight

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Up To 10/2003:

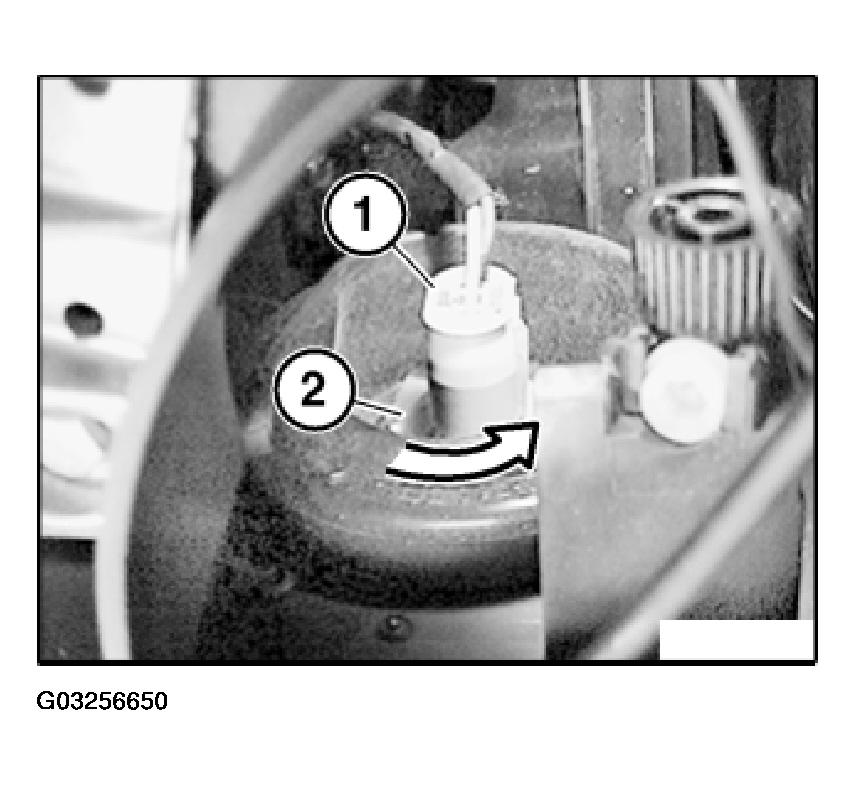

Disconnect plug connection (1).

Turn bulb holder (2) approx. 45° in direction of arrow and remove.

Remove bulb.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

From 10/2003:

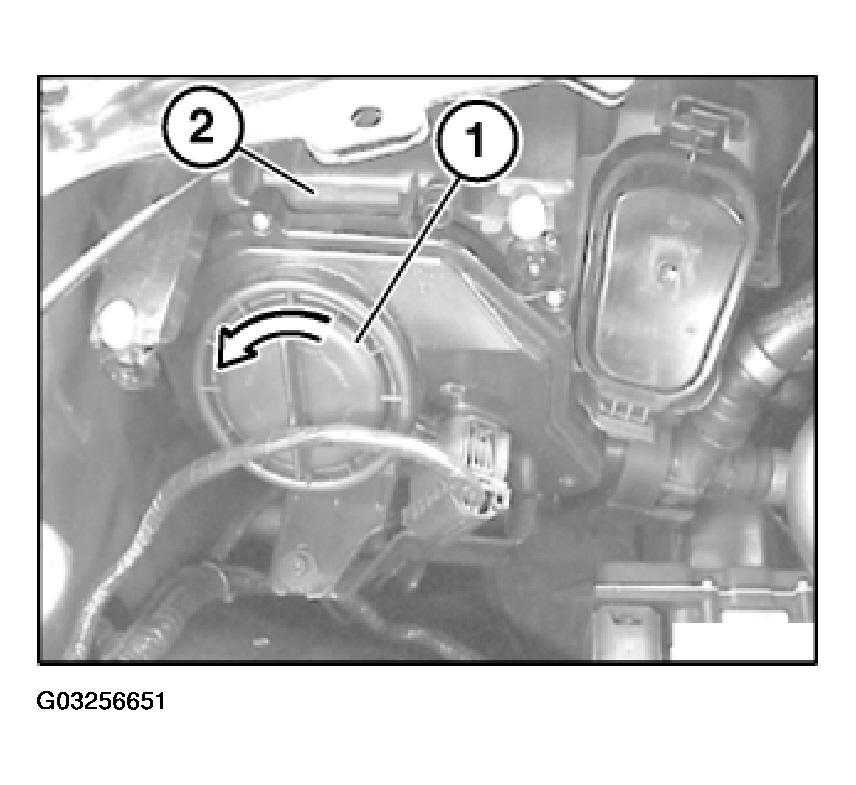

Turn cover (1) in direction of arrow and remove from headlight (2).

Installation:

Make sure seal of cover (1) is correctly seated.

Fig 2: Checking Seal Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

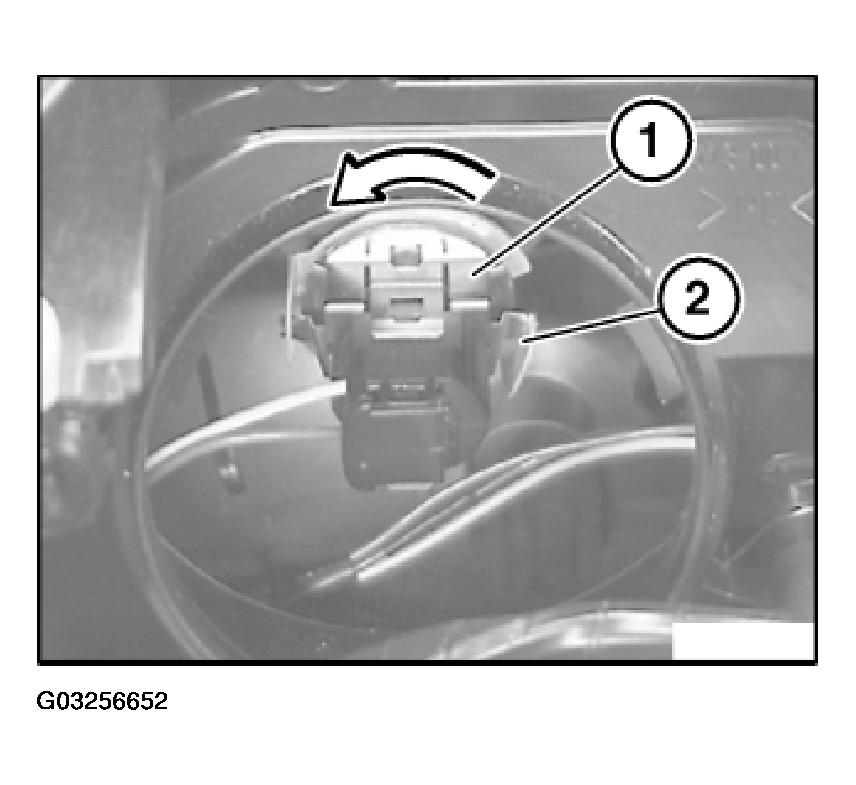

Turn bulb holder (1) in direction of arrow and remove towards rear from carrier (2).

Detach bulb from bulb holder (1).

Fig 3: Detaching Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb. Refer to 63 12 HEADLIGHTS, HEADLIGHT ASSEMBLY E53 .
