63 31 150 Removing and installing/replacing glovebox light

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Lever out glovebox light (1) in direction of arrow.

Disconnect plug connection and remove glovebox light (1).

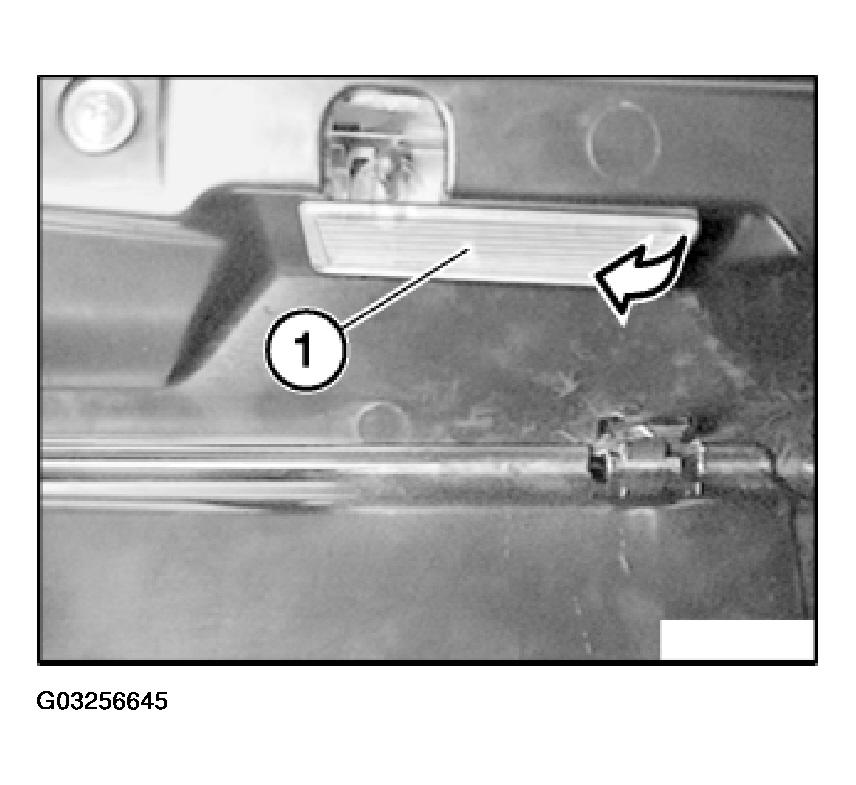

Fig 1: Levering Out Glovebox Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove bulb.

Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E53 .
