63 12 870 Replacing ignition unit for left xenon headlight (from 10/2003)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

M54 Only: Remove suction filter housing. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54) .

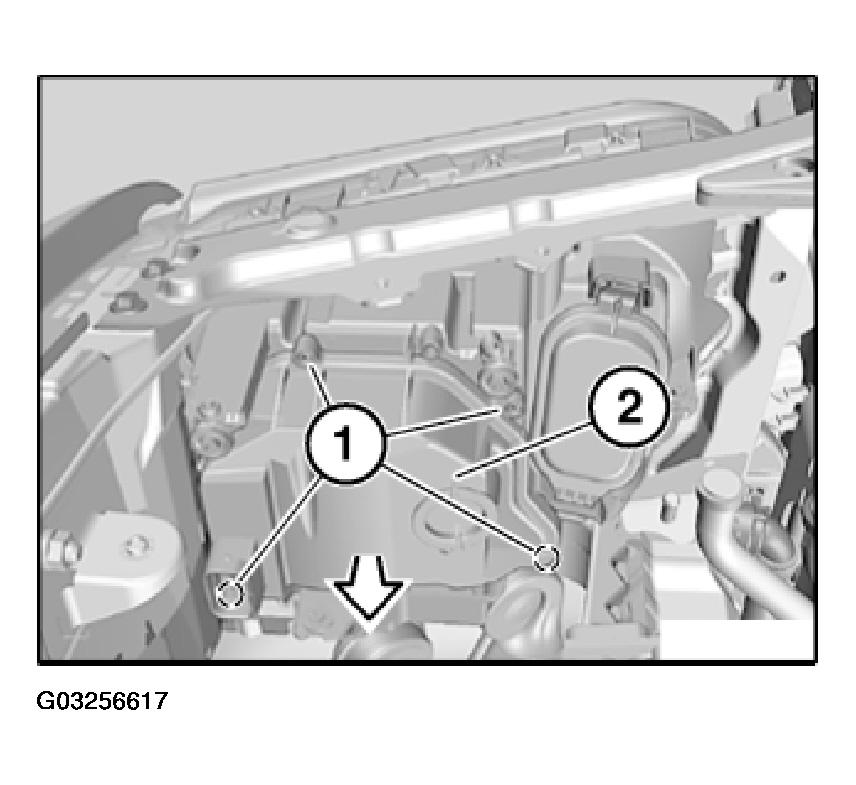

Release screws (1) and remove cover (2) in direction of arrow.

Installation:

Make sure seal of cover (2) is correctly seated.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

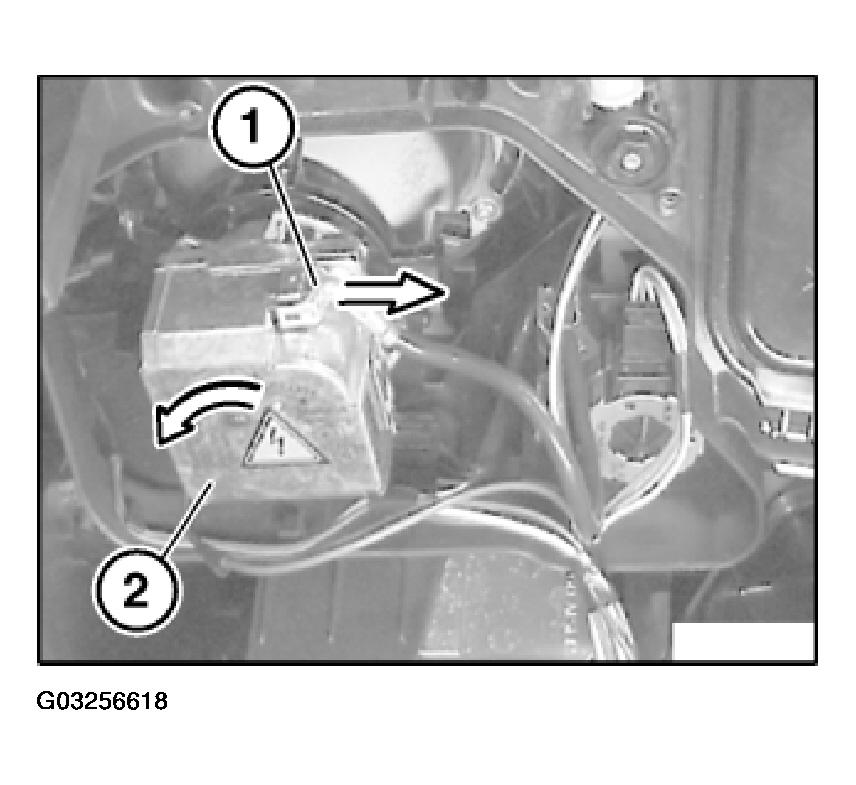

Disconnect plug connection (1) in direction of arrow.

Turn ignition unit for xenon headlight (2) in direction of arrow and remove.

Fig 2: Removing Ignition Unit For Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
