63 12 860 Replacing control unit for left xenon headlight

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove headlight. Refer to63 12 010 REMOVING AND INSTALLING LEFT HEADLIGHT (XENON HEADLIGHT) .

Up To 10/2003:

Release screws (1) and hose clip (2).

Remove protective cap (3).

Installation:

If necessary, replace seal for protective cap (3).

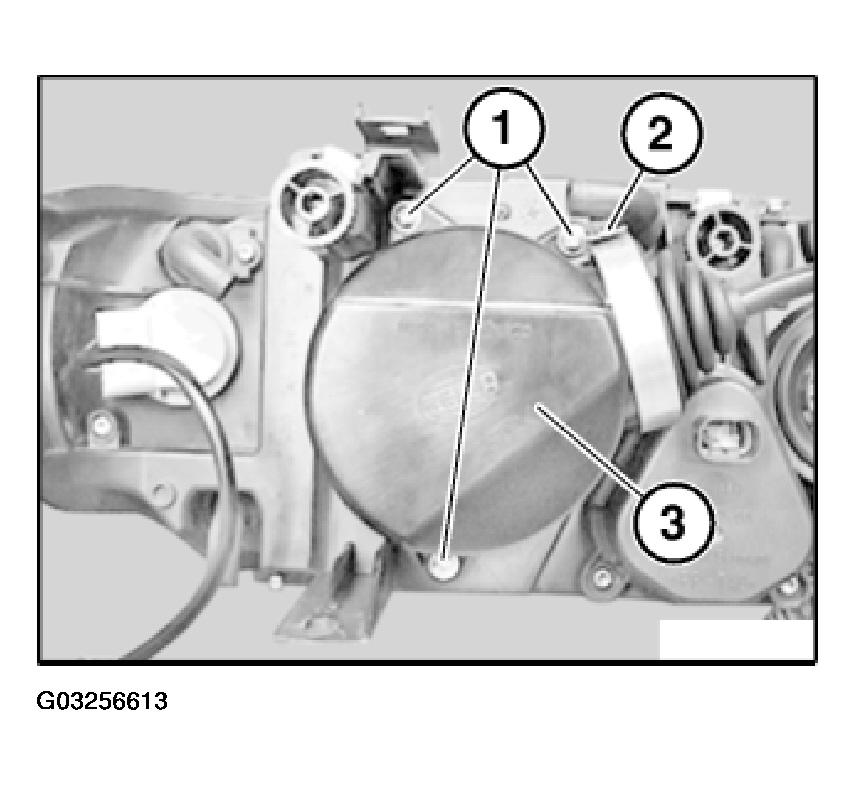

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Turn ignition unit of xenon lamp (1) counterclockwise through approx. 45° and remove.

Pull out ignition unit of xenon lamp (1) through opening in protective cap.

Remove control unit for xenon headlight.

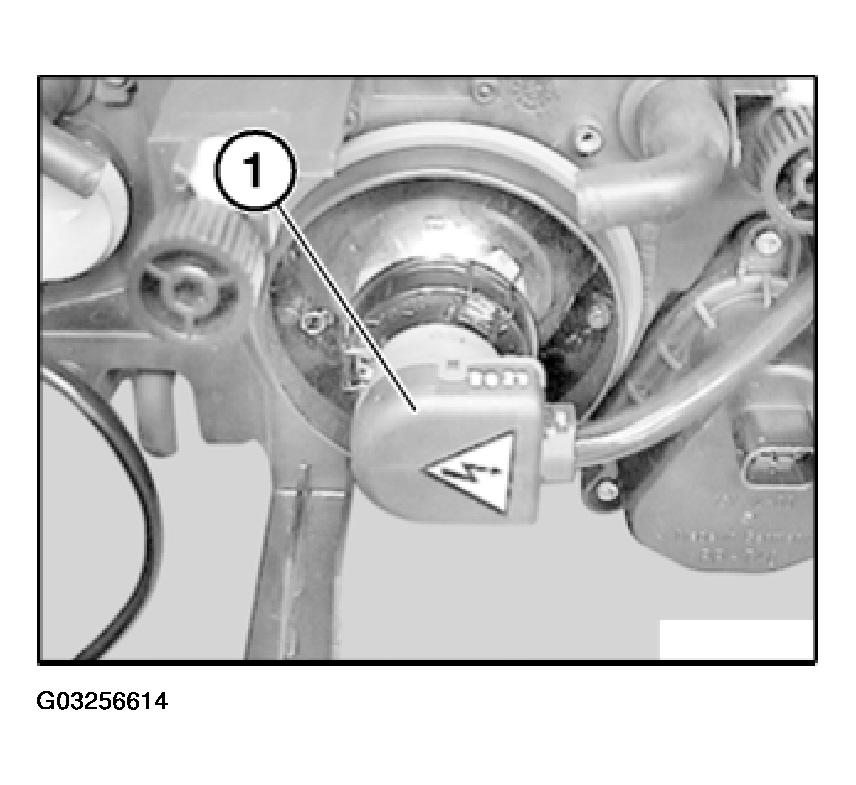

Fig 2: Identifying Ignition Unit For Xenon Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

From 10/2003:

Release screws (1).

Remove control unit for xenon headlight (2) from xenon headlight (3).

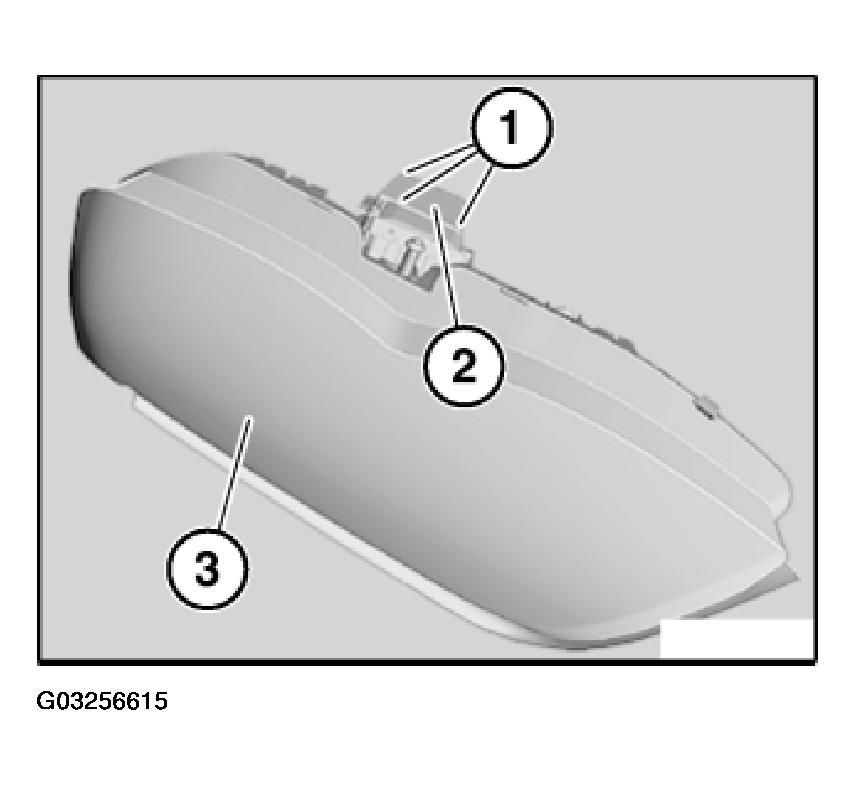

Fig 3: Locating Screws For Control Unit For Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
