63 17 061 Replacing left or right fog lamp

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove fog lamp. Refer to 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (FROM 10/2003) or 63 17 060 REMOVING AND INSTALLING LEFT OR RIGHT FOG LAMP (UP TO 10/2003) .

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Up To 10/2002:

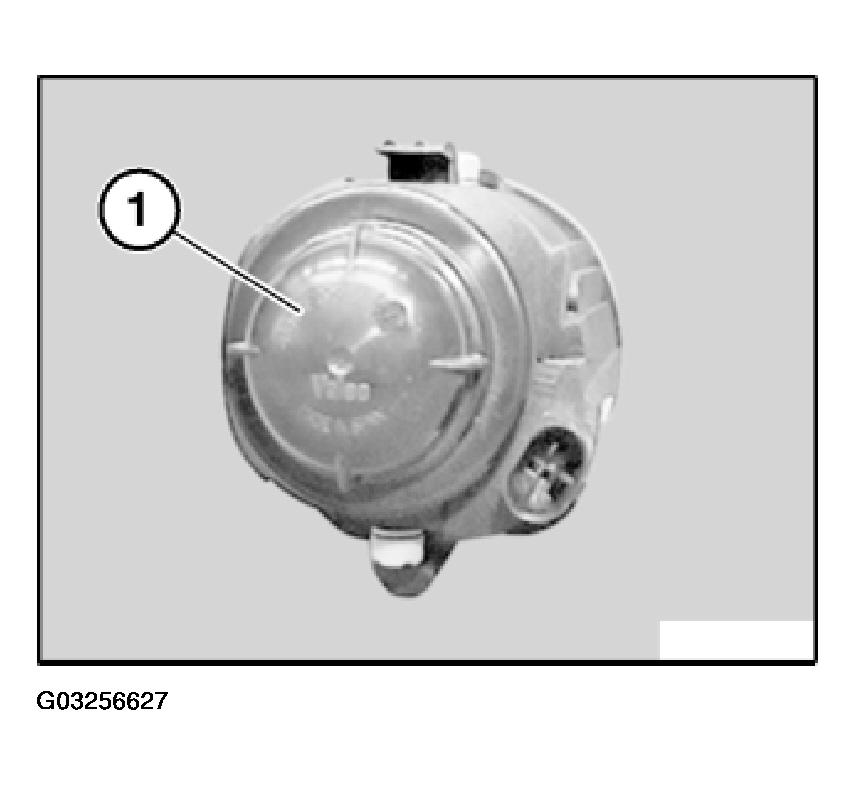

Turn cover (1) counterclockwise through approx. 45° and remove.

Fig 1: Identifying Fog Lamp Cover

Courtesy of BMW OF NORTH AMERICA, INC.

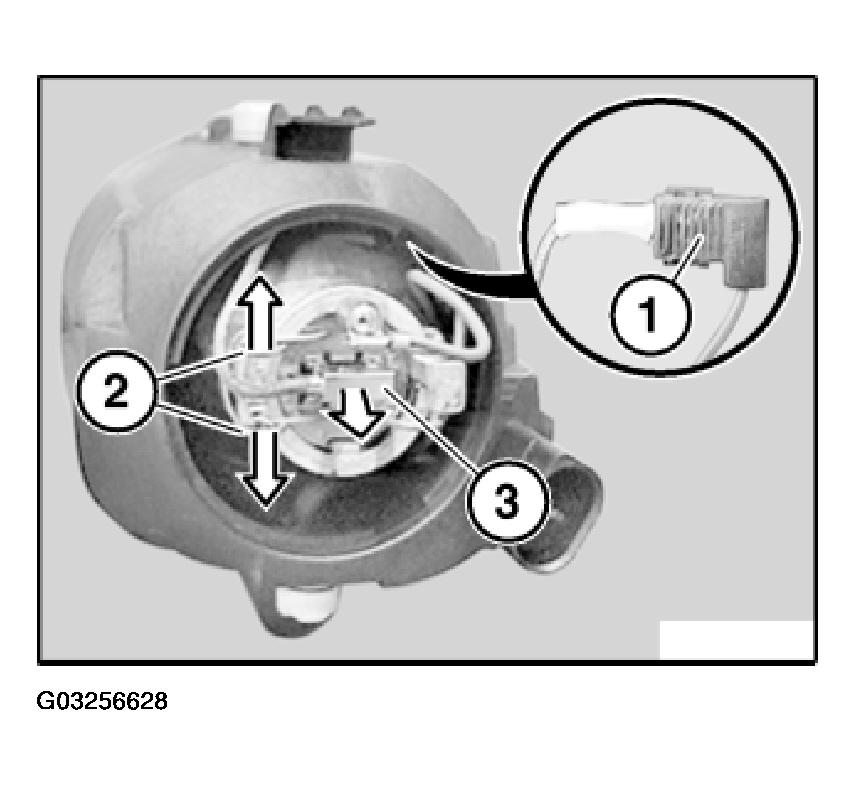

Pull plug connection (1) out of housing and disconnect.

Press retainers (2) in direction of arrow and remove bulb (3).

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

From 10/2002:

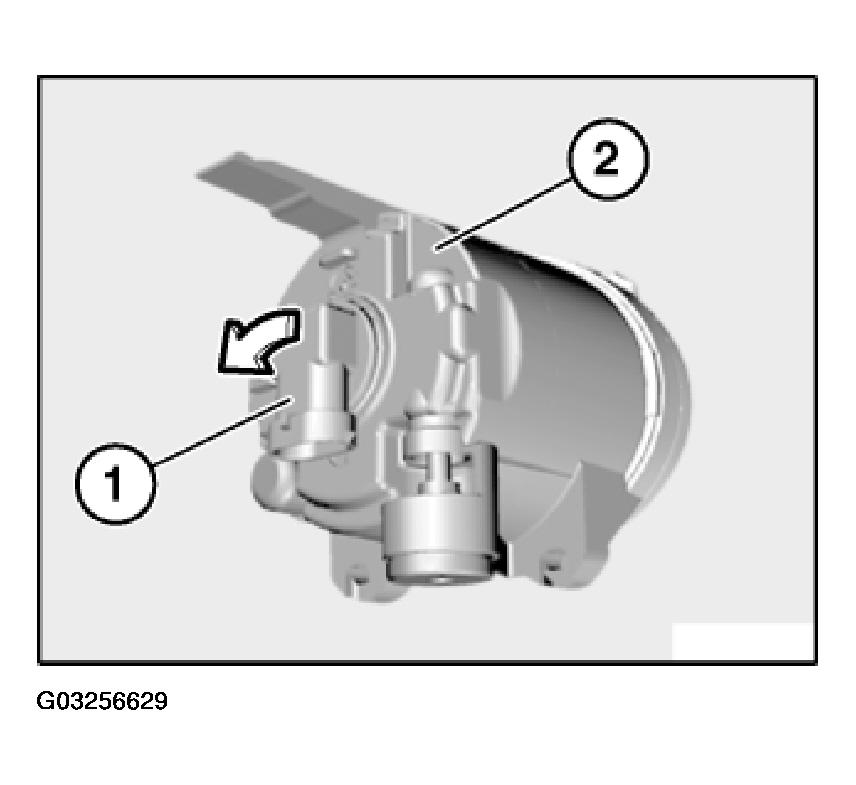

Turn bulb holder (1) in direction of arrow and remove from fog lamp (2).

Fig 3: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note bulb type. Refer to 63 17 FRONT FOG LAMPS, ADDITIONAL LAMPS E53 .
Adjust fog lamps. Refer to 63 10 014 ADJUSTING FOG LAMPS .
