61 13 ... DME master relay connector

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Unlock locking flap (1) of corresponding cable.

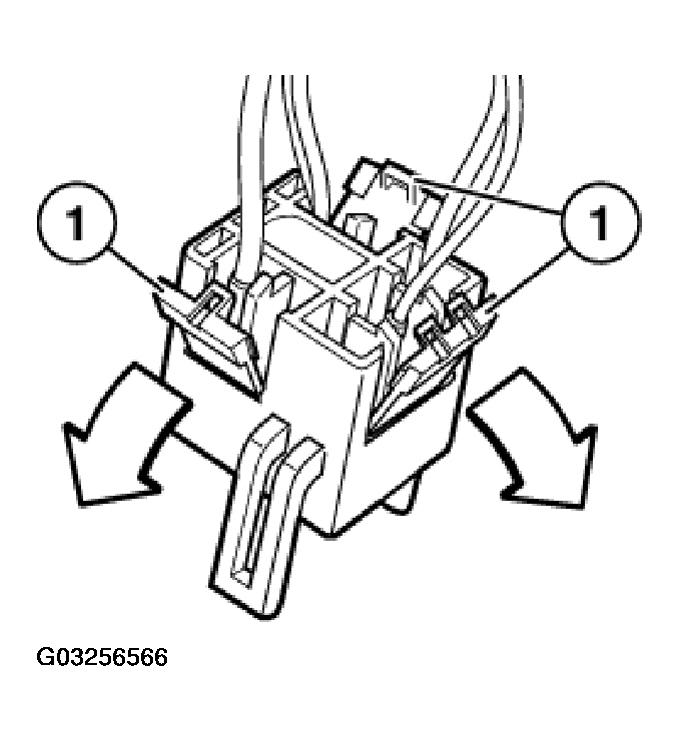

Fig 1: Identifying Unlock Locking Flap Of Corresponding Cable

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.

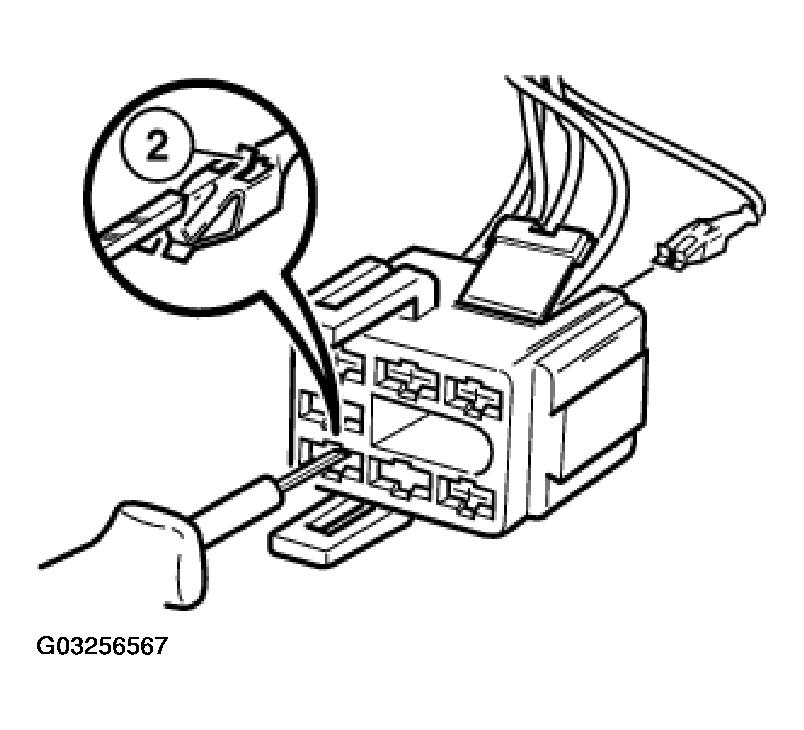

Fig 2: Pressing Back Arrester Hook Using Ejector

Courtesy of BMW OF NORTH AMERICA, INC.
