54 10 160 Replacing left or right gaiter for glass slide/tilt sunroof
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Close glass slide/tilt sunroof.
IMPORTANT:
Risk of damage!

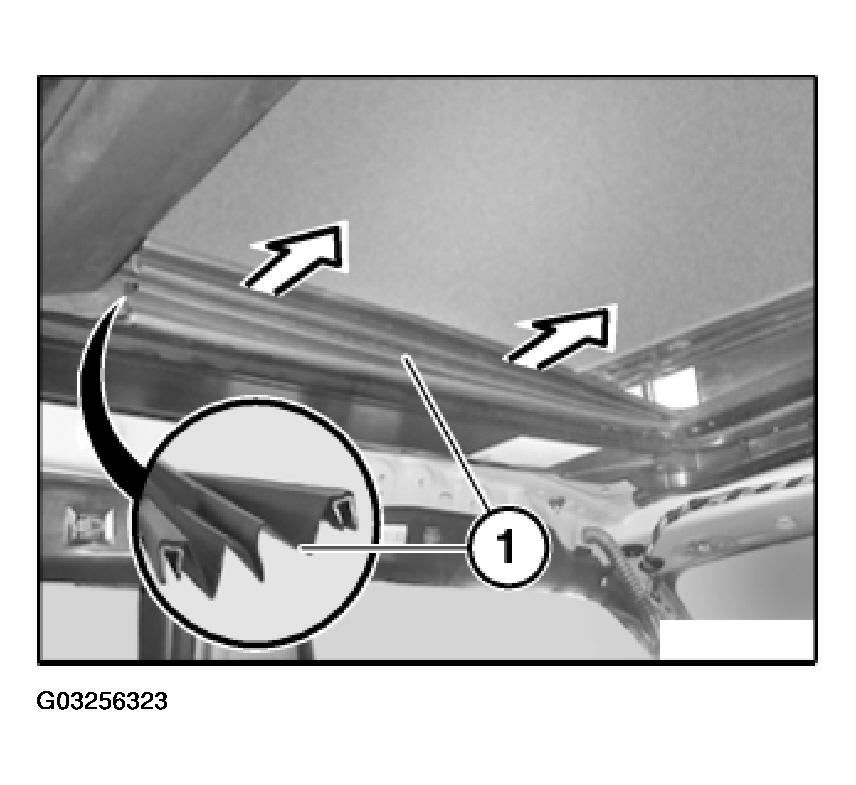

Carefully detach gaiter (1) from guide.
Installation:
Gaiter has an aluminum section inlay.
Check that aluminum section inlay is firmly seated on guide.
If necessary, replace faulty gaiter.
