54 12 496 Removing and installing or replacing wind deflector

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open slide/tilt sunroof.

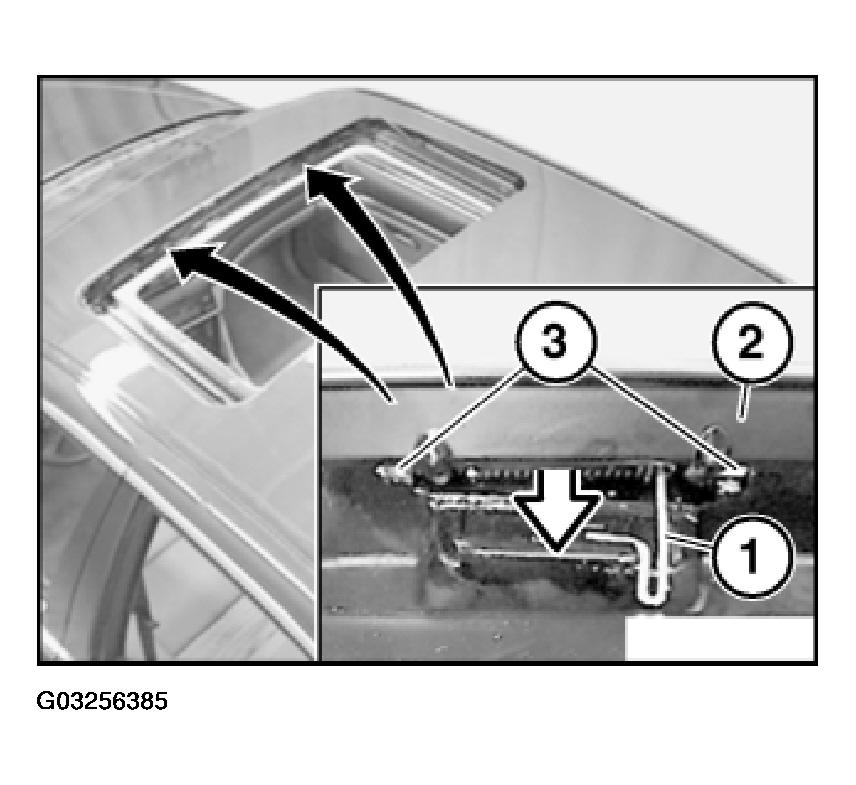

Lift out left/right spring (1) and pull wind deflector (2) backwards slightly to remove from mount (3).

Installation:

Install spring (1) correctly.

Fig 1: Aligning Wind Deflector Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

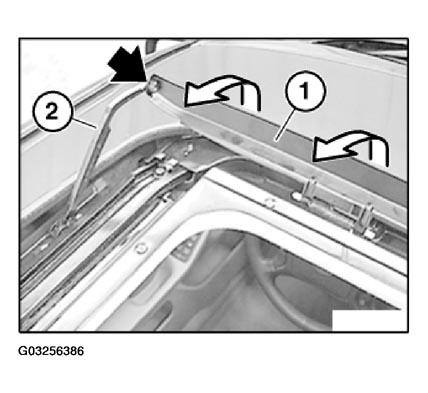

Raise wind deflector (1) slightly, turn and pull off left/right lever (2).

Fig 2: Removing Deflector Off Left/Right Lever

Courtesy of BMW OF NORTH AMERICA, INC.

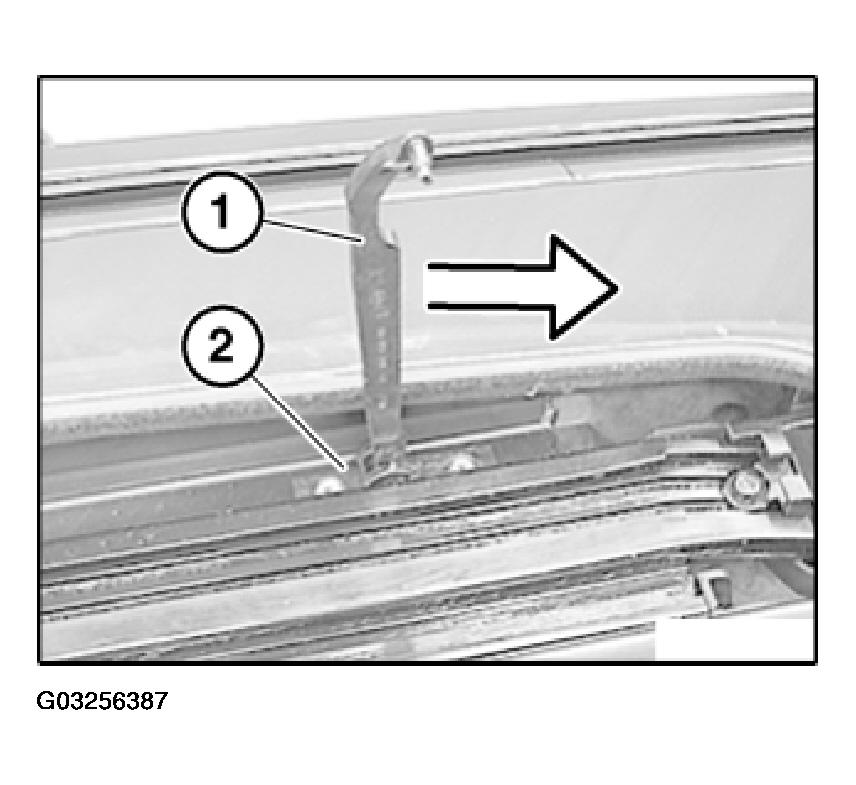

Move left/right lever (1) into vertical position and pull forwards off mount (2).

Fig 3: Removing Left/Right Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function.
