54 12 132 Removing and installing/replacing headliner for sun-roof lid

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, apply light coat of Renax GL 1 (Fuchs) grease to guide duct.

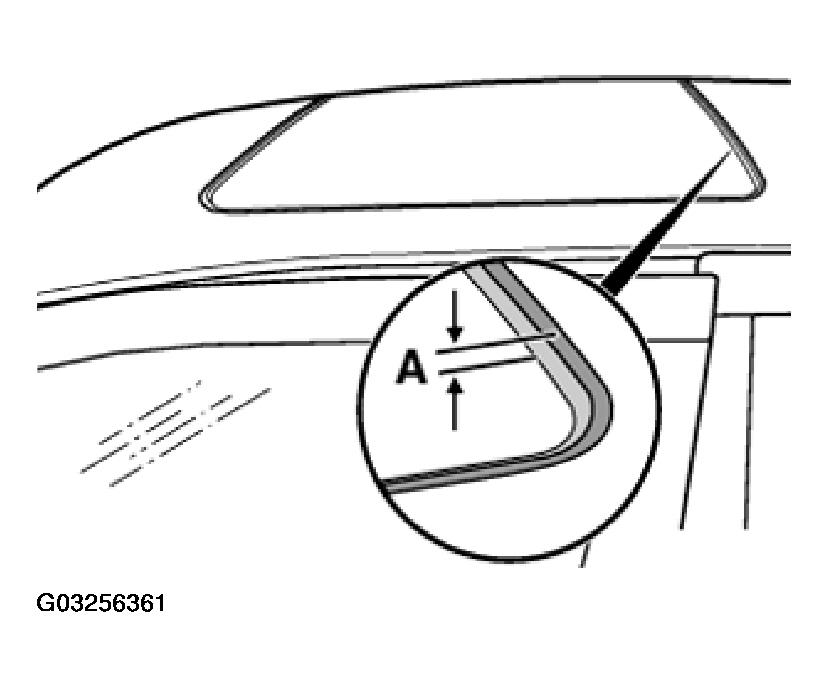

Fig 1: Identifying Slide/Tilt Sunroof Dimension (A)

Courtesy of BMW OF NORTH AMERICA, INC.

The mechanism must be lowered at the back by dimension (A).

If necessary, lower as with the installed slide/tilt sunroof cover.

Distance (A) = 2 to 3 mm.

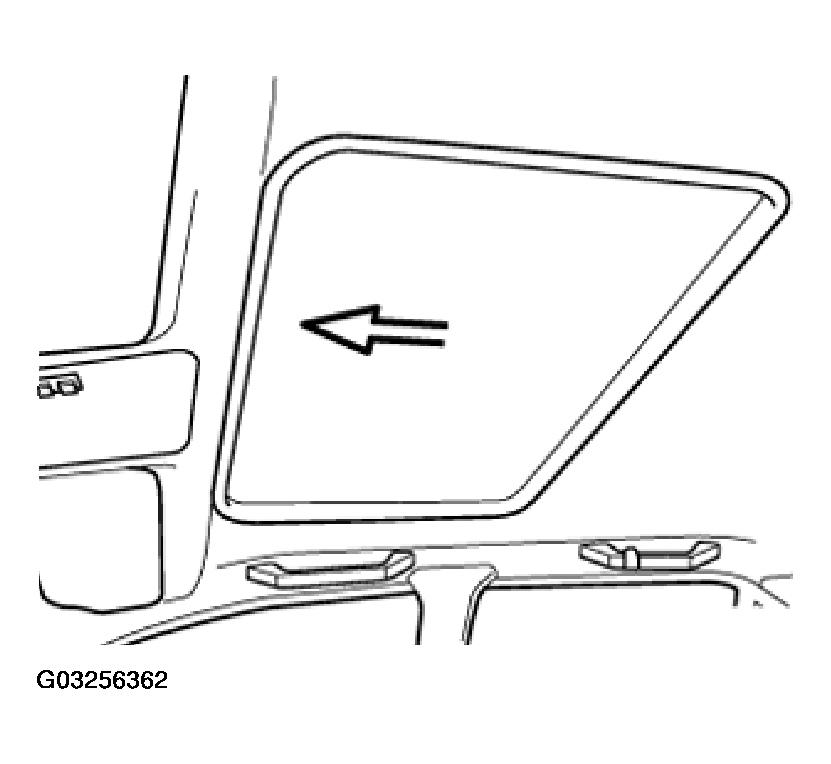

Fig 2: Pulling Headliner Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

Pull headliner slowly forwards (with clean hands or wearing protective gloves).

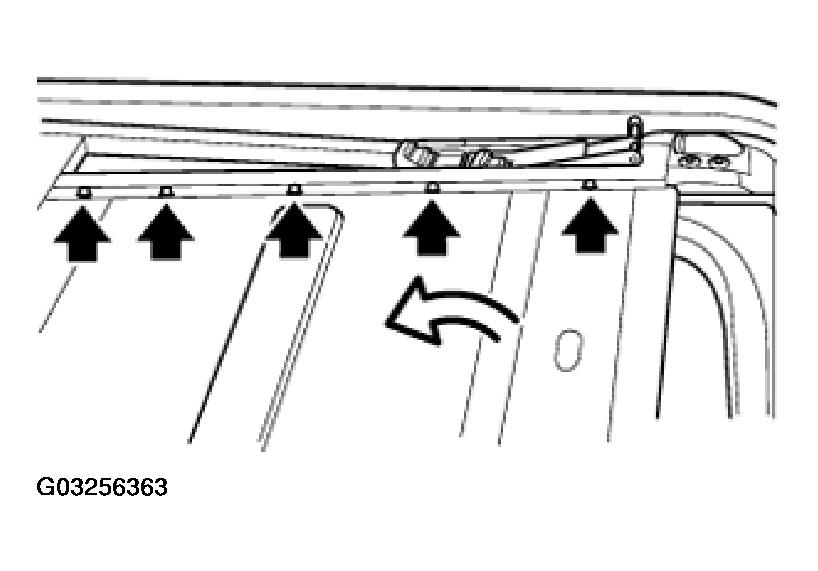

Fig 3: Locating Torx Screws In Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right Torx screws and pull headliner forwards/upwards to remove.

NOTE: After dismantling the headliner, do not move the mechanism, otherwise the bending/fulcrum pad slides backwards.
