54 13 105 Removing and installing/replacing rear drip moulding

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove complete glass slide/tilt sunroof. Refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF .
Remove glass slide/tilt sunroof lid at rear. Refer to 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE/TILT SUNROOF COVER .

Unlock tab (2) and remove drip moulding (1) towards top.

NOTE: 2 springs are loosely connected to guide for drip moulding.

Installation:

Make sure springs are reinstalled on drip moulding carriers.

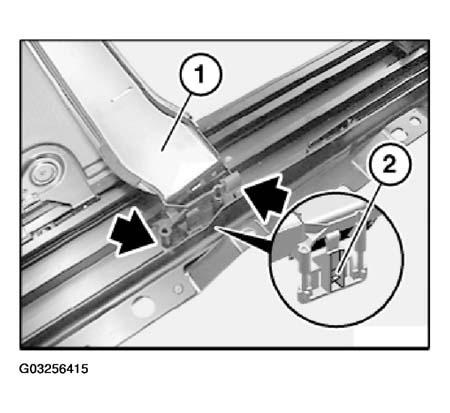

Fig 1: Identifying Tab On Drip Moulding

Courtesy of BMW OF NORTH AMERICA, INC.

Removing Drip Moulding Carrier:

NOTE: Drip moulding carrier cannot be removed without incurring damage.

Break out tabs with a screwdriver and lever out carrier.

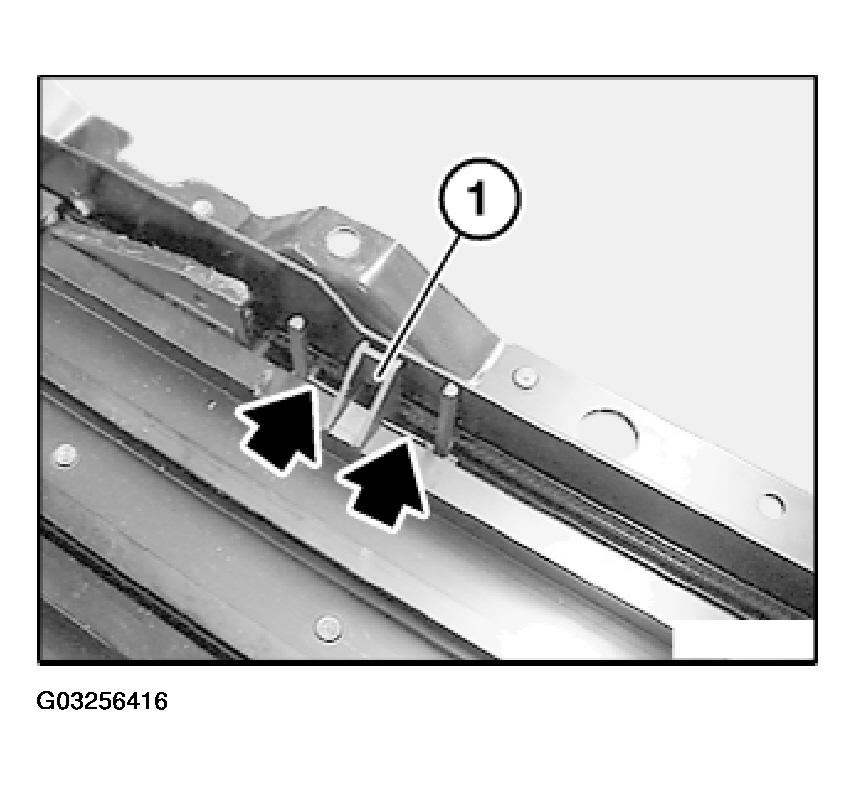

Fig 2: Removing Drip Moulding Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace drip moulding carrier and hook into place.
