54 13 095 Replacing/cleaning net for wind deflector

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open slide/tilt sunroof.

Cleaning:

The wind deflector net can be cleaned while installed as follows:

Accelerate vehicle with glass slide/tilt sunroof open to over 5km/h.
Stop vehicle and turn ignition key to position 2.

NOTE: This prevents the wind deflector from retracting, and thereby leaving it fully open. Net is now accessible and easy to clean.

Replacement:

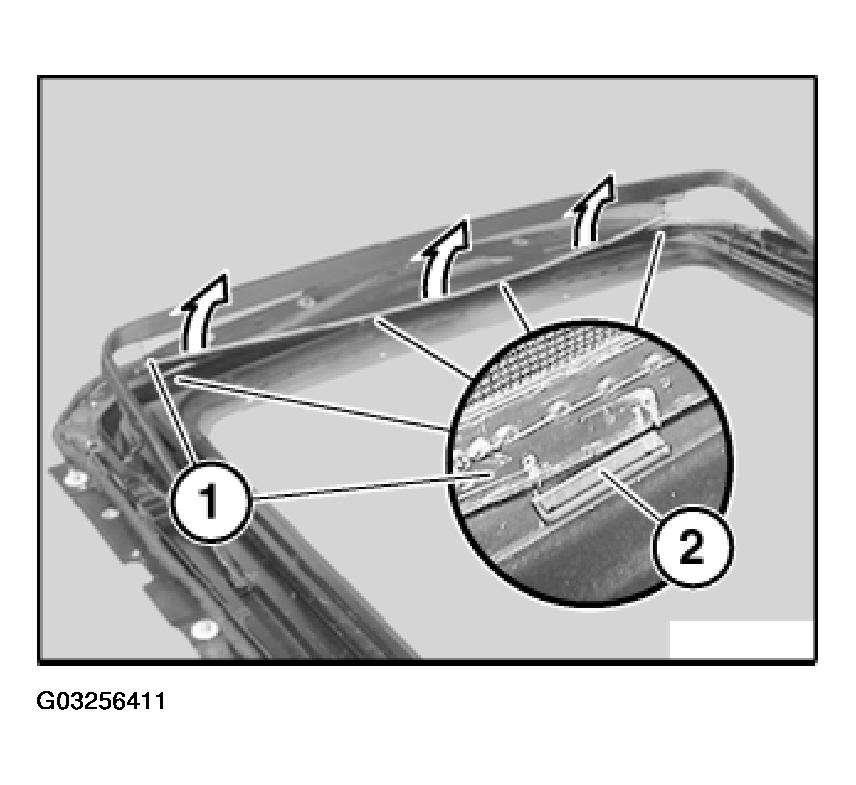

Pull plastic strip (1) out of retainers (2) on panorama glass sunroof and wind deflector.

Fig 1: Pulling Plastic Strip Out Of Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, reinstall retainers.

Clip new net into place.
