54 13 090 Removing and installing/replacing wind deflector

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open slide/tilt sunroof

NOTE: Shown removed here for purposes of clarity. Pull plastic strip (1) on net of wind deflector out of retainers (2).

IMPORTANT: Do not pull on the net so as to avoid tearing the net.

Installation:

If necessary, reinstall retainers in frame.

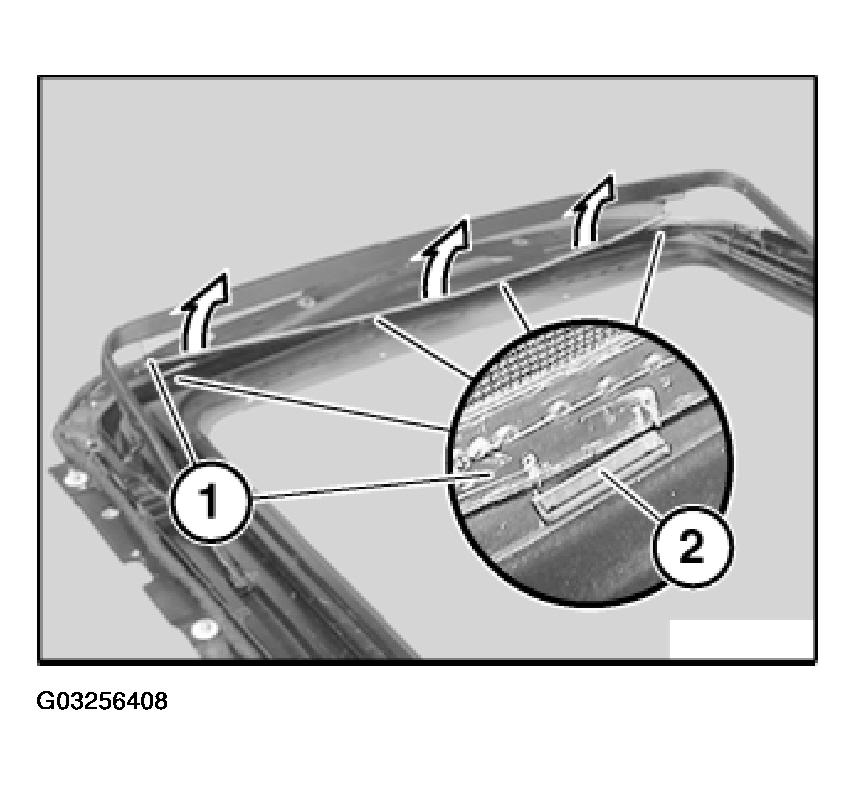

Fig 1: Removing Plastic Strip On Net Of Wind Deflector Out Of Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Tape off paintwork in working area.
Avoid bending wind deflector (1).

NOTE: Pictures show removal on the left side, proceed in the same way for the right side. Slide control carriage (4) for wind deflector with plastic wedge towards front. Carefully lift wind deflector (1) in direction of arrow with guide (2) out of rail (3).

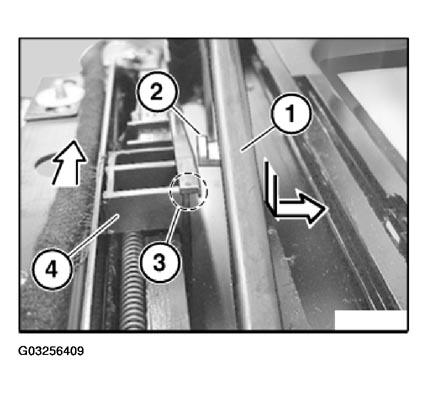

Fig 2: Lifting Wind Deflector With Guide Out Of Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure clamping elements are correctly seated.

Tilt wind deflector (1) into vertical position and remove.

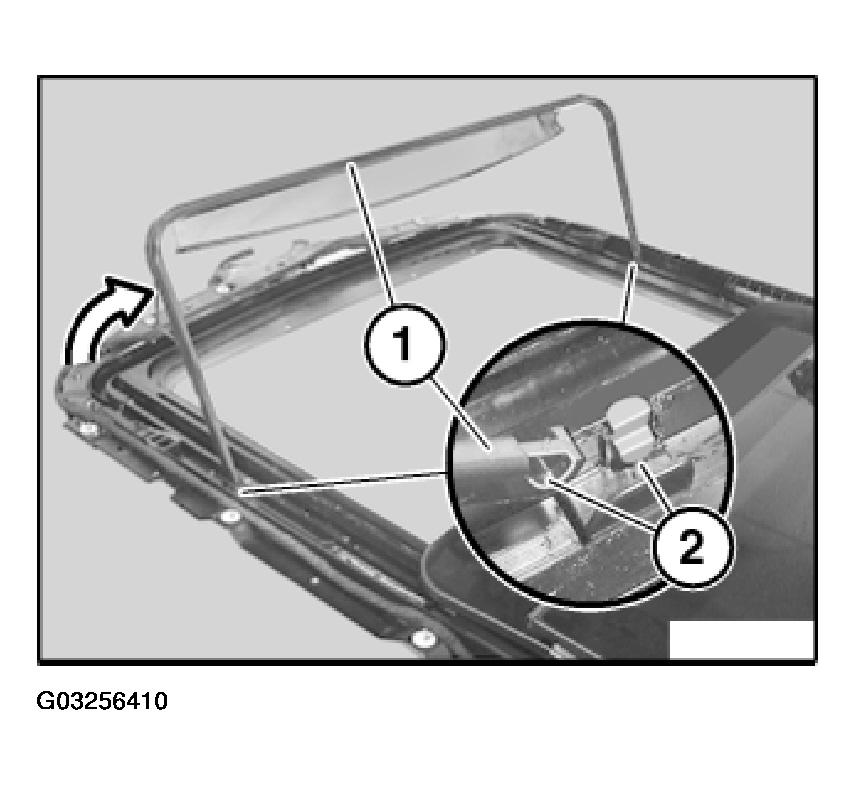

Fig 3: Identifying Wind Deflector And Pivot Point

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wind deflector (1) is correctly seated in pivot point (2).
