54 13 055 Replacing seal for slide/tilt sunroof frame

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove glass slide/tilt sunroof lid at rear. Refer to 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE/TILT SUNROOF COVER .
Lower (open) glass slide/tilt sunroof lid at front.

NOTE: Follow repair instructions for bonded seals on glass slide/tilt sunroof. Refer to 54 0 ... REPAIR INSTRUCTIONS FOR BONDED SEALS .

Pull off seal of sunroof cut-out at contact edge starting from body. (Peel off).

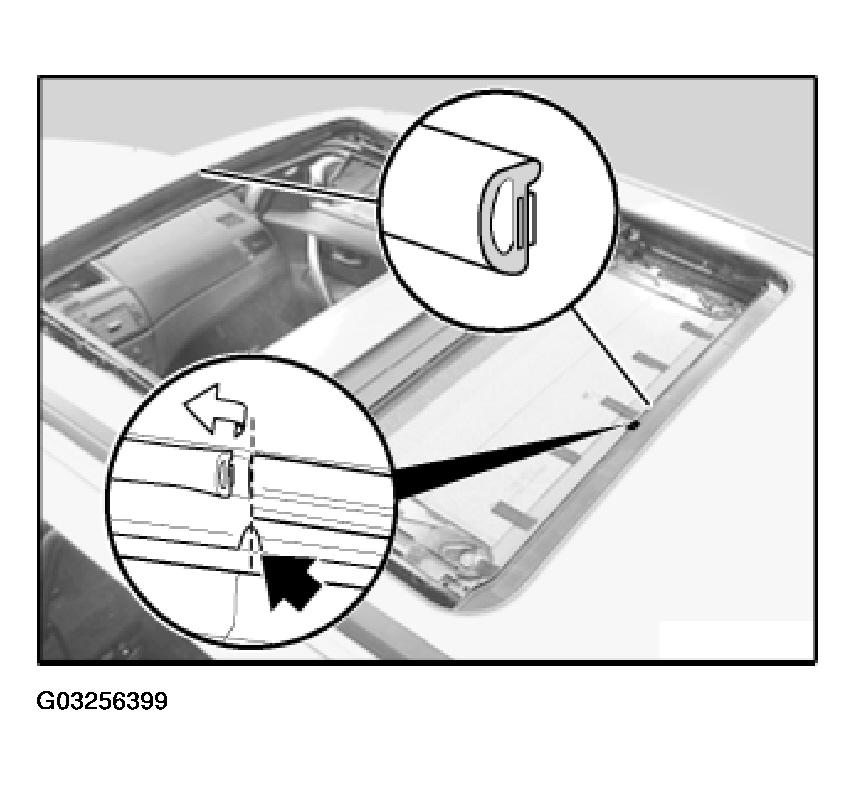

Fig 1: Replacing Seal For Slide/Tilt Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bonding surface with adhesive remover.

Press seal without stretching (squashing).

Stick on seal in sections.

Establish seal joint.

IMPORTANT: Do not touch bonding surface. Surface temperature > = 20 °C. Incorrect bonding of the seal will result in leakage.
