54 13 050 Replacing seal for slide/tilt sunroof lid at rear

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open glass slide/tilt sunroof.

NOTE: Follow repair instructions for bonded seals on glass slide/tilt sunroof. Refer to 54 0 ... REPAIR INSTRUCTIONS FOR BONDED SEALS .

Detach seal (1) from slide/tilt sunroof lid.

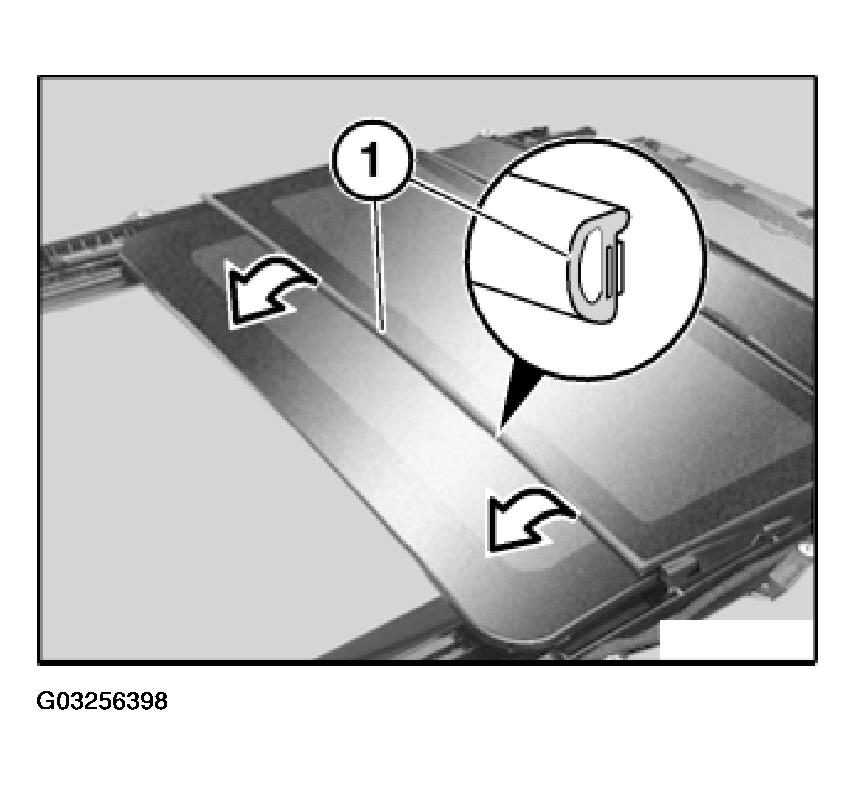

Fig 1: Detaching Seal From Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bonding surface with adhesive remover.

Press seal without stretching (squashing).

IMPORTANT: Do not touch bonding surface. Surface temperature 20° C. Incorrect bonding of the seal will result in leakage.
