Master Cylinder: Removal
WARNING: This page is about a different car, the 2003 BMW Z8 and 2002 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
- Remove brake fluid from reservoir. Remove clutch hydraulic hose (if equipped).

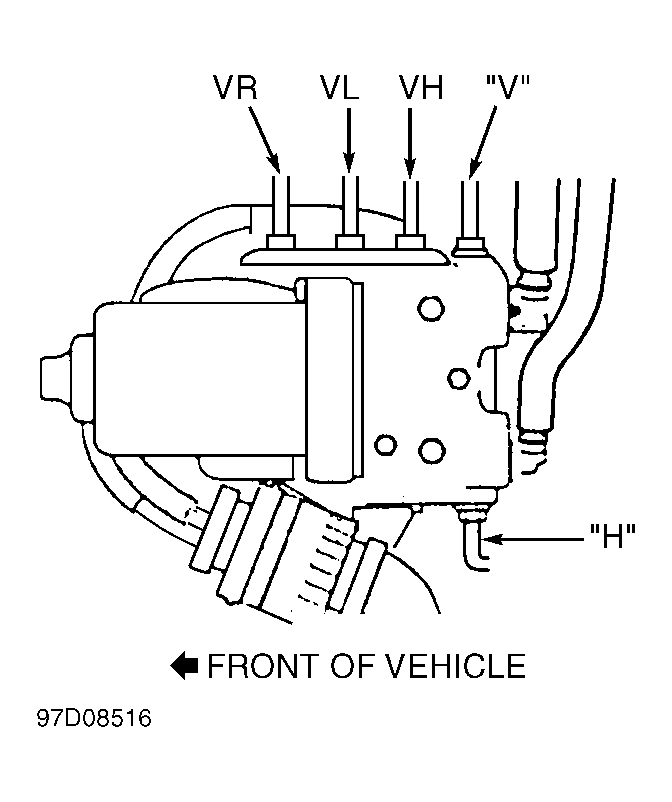

- Disconnect all hydraulic lines from master cylinder. See Fig 1. Remove master cylinder-to-power booster nuts. Remove support and master cylinder.
