52 26 309 Removing and installing/replacing lock for left rear seat backrest (through-loading system)

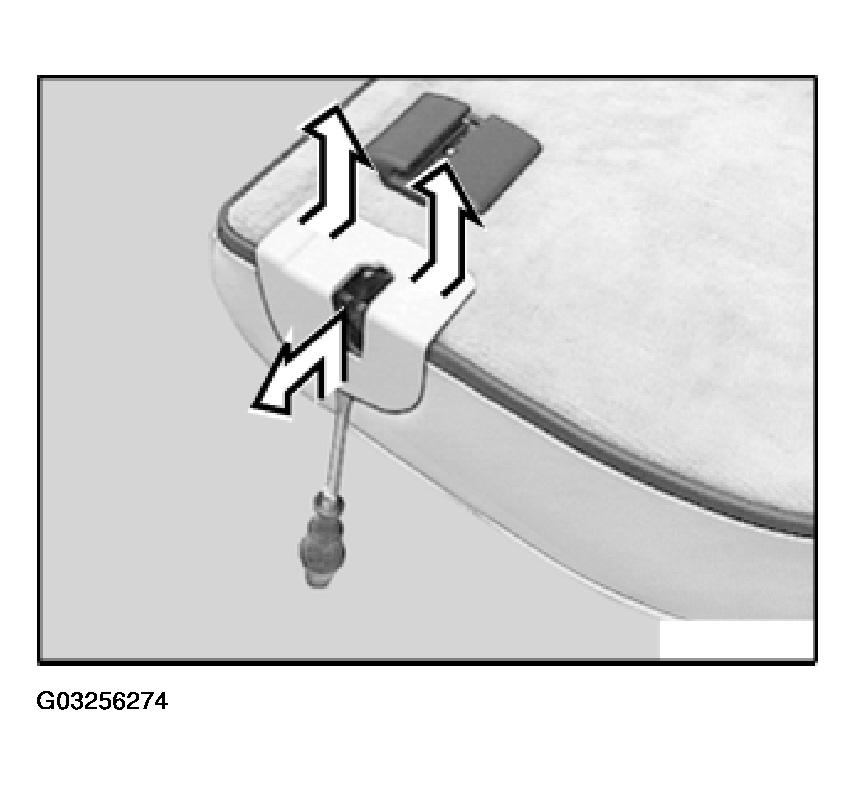

Slide lock trim on edge of backrest side upwards slightly and clip out to one side, then slide trim section on rear side slightly to center, unclip and remove.

Fig 1: Identifying Lock Trim On Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

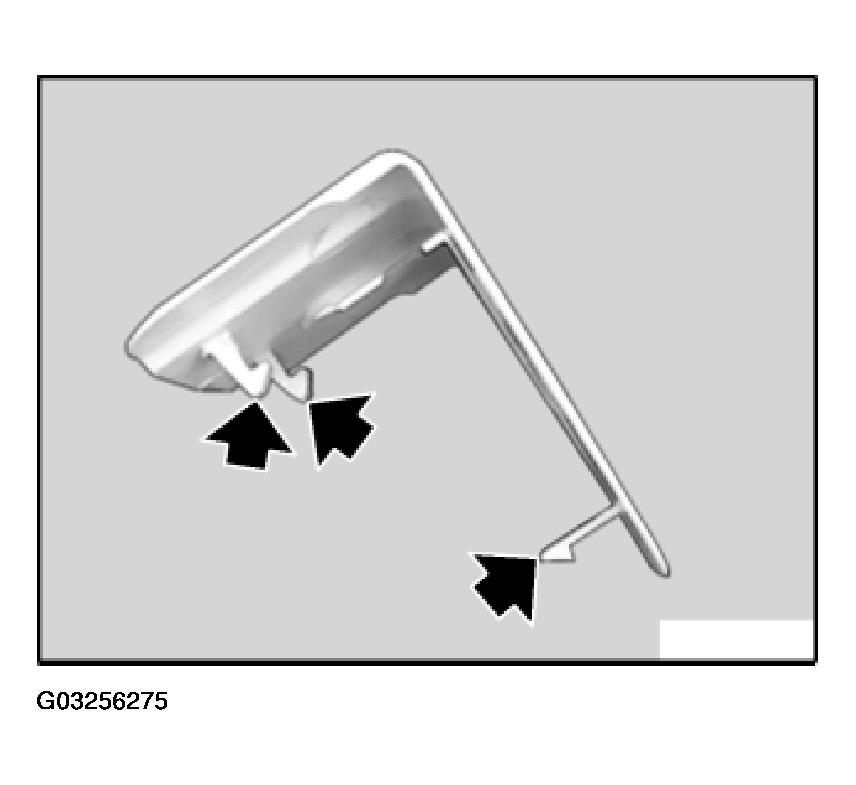

Clips of trim must not be damaged.

Fig 2: Identifying Clips Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

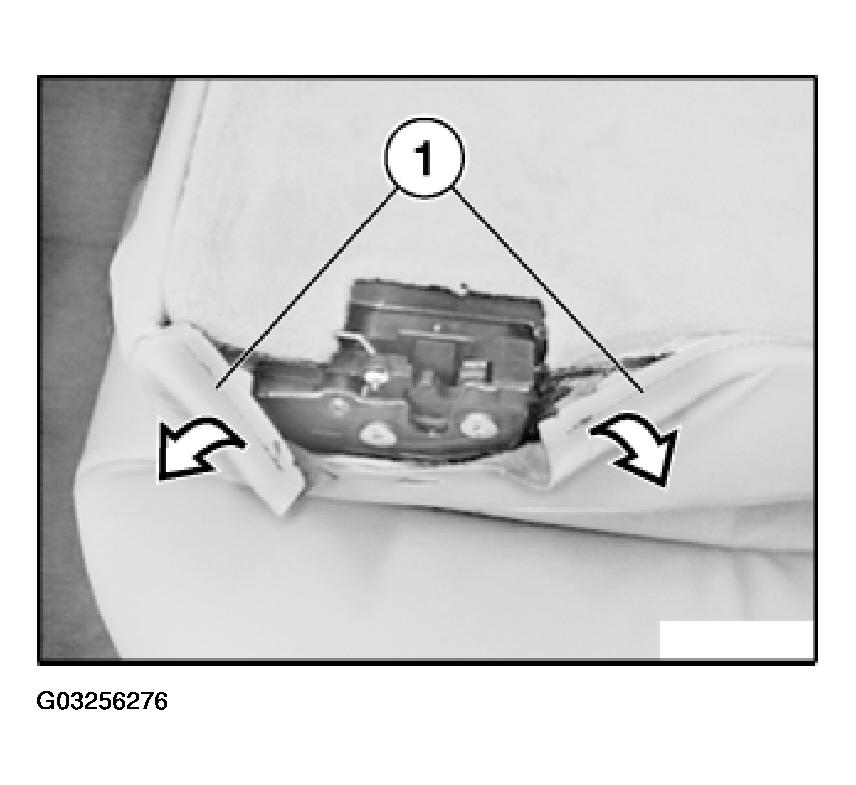

Partially lift cover (1) off rear seat backrest.

Fig 3: Aligning Cover Of Rear Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit bush (3) and new lockplate (1).

Perform function check with rear seat back-rest folded forward.

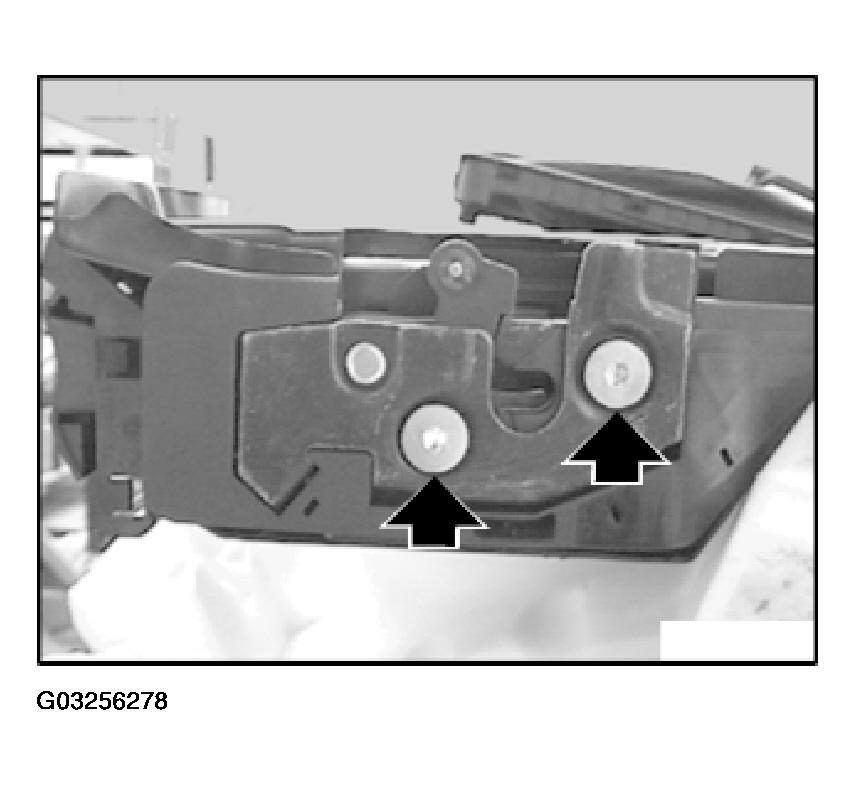

Release screws and fold back backrest lock.

Fig 4: Locating Screws On Backrest Lock

Courtesy of BMW OF NORTH AMERICA, INC.

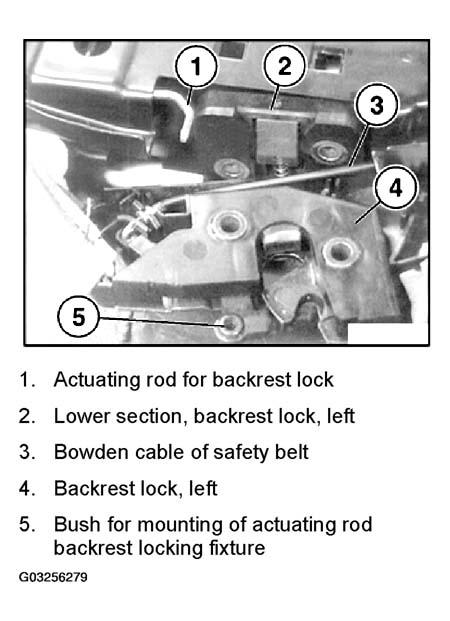

Summary, backrest lock, left:

1. Actuating rod for backrest lock.
2. Lower section, backrest lock, left.
3. Bowden cable of safety belt.
4. Backrest lock, left.
5. Bush for mounting of actuating rod backrest locking fixture

Fig 5: Identifying Backrest Lock Components

Courtesy of BMW OF NORTH AMERICA, INC.

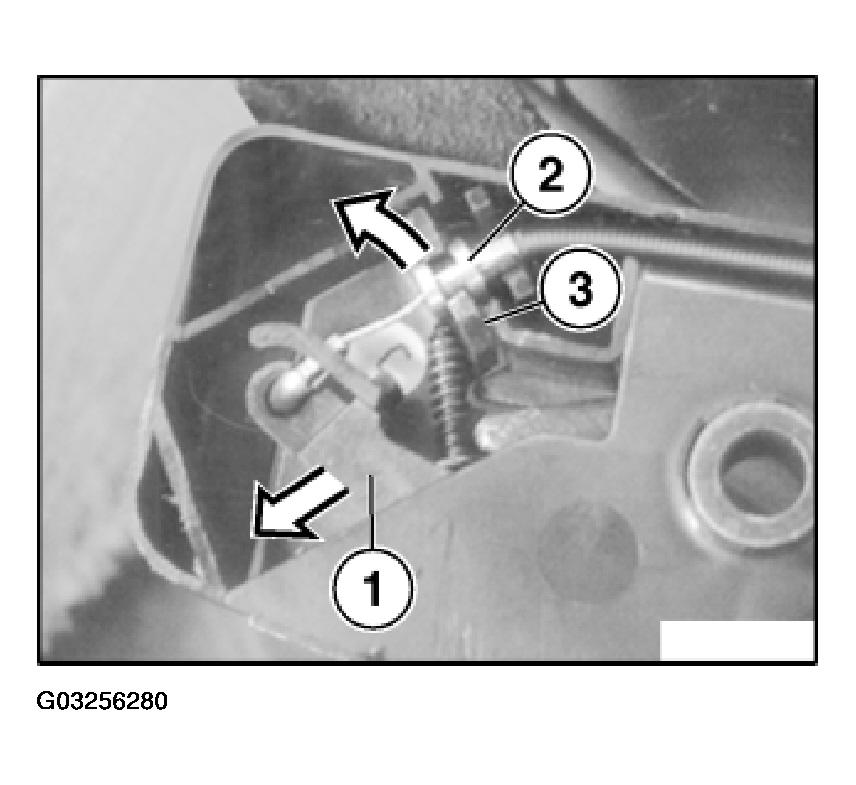

Unhooking seat belt Bowden cable from backrest lock:

Press lever (1) forwards in direction of arrow.

Remove sleeve for Bowden cable (2) from holder (3) in backrest lock.

Unhook Bowden cable from lever (1).

Fig 6: Unhooking Bowden Cable From Lever

Courtesy of BMW OF NORTH AMERICA, INC.

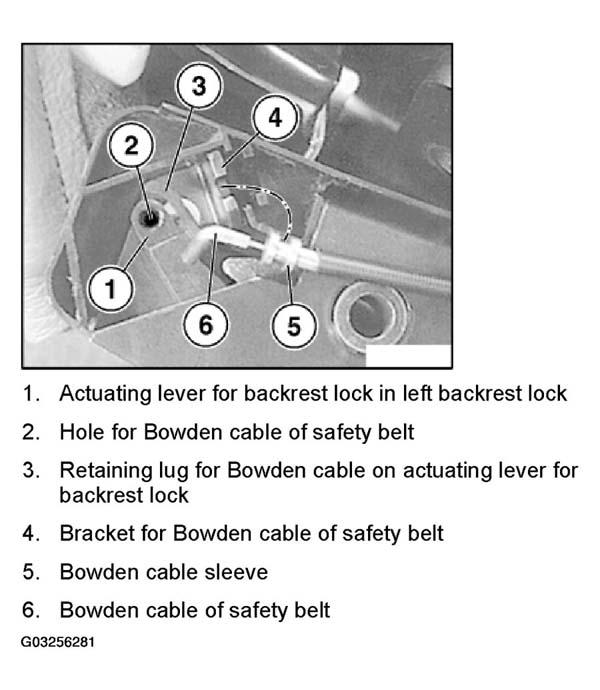

Summary, backrest lock, left:

1. Actuating lever for backrest lock in left backrest lock.
2. Hole for Bowden cable of safety belt.
3. Retaining lug for Bowden cable on actuating lever for backrest lock.
4. Bracket for Bowden cable of safety belt.
5. Bowden cable sleeve.
6. Bowden cable of safety belt.
   Fig 7: Identifying Backrest Lock Components (Left)

   Courtesy of BMW OF NORTH AMERICA, INC.
