52 17 ... Replacing first aid kit with holder

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

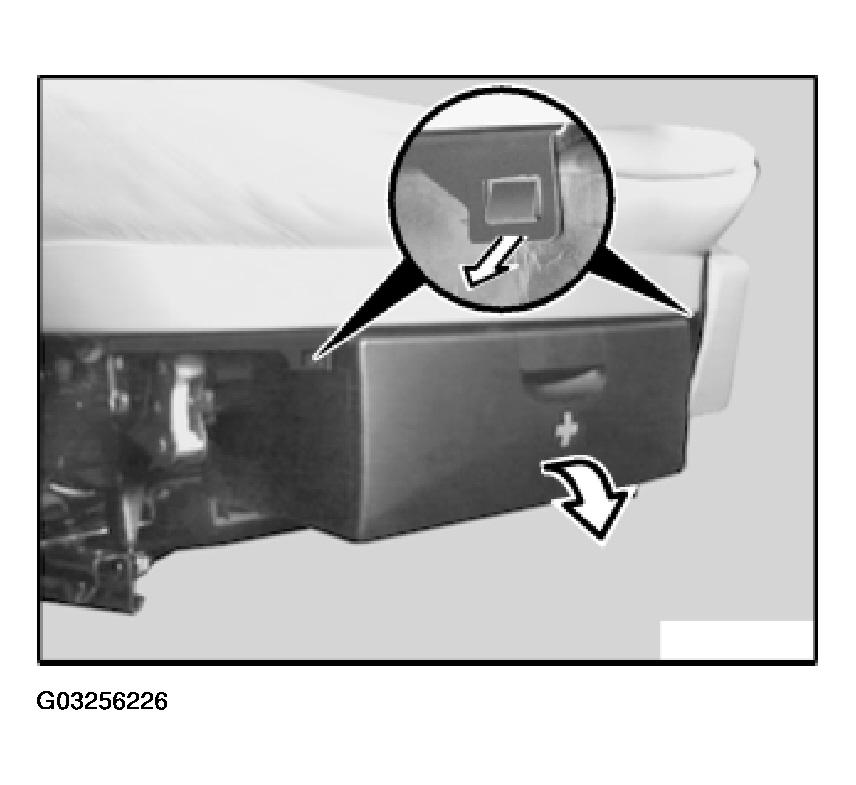

Unclip first aid kit on both sides and remove downwards towards front.

Fig 1: Unclipping First Aid Kit
G03256226Courtesy of BMW OF NORTH AMERICA, INC.

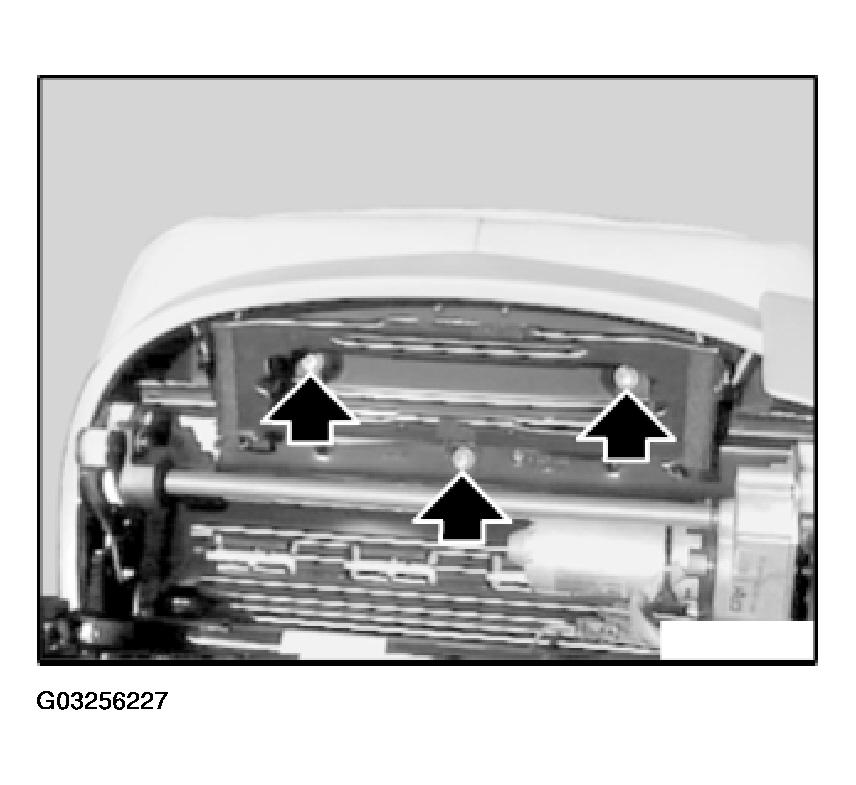

Release holder screws and remove holder.

Fig 2: Releasing Holder Screws
G03256227Courtesy of BMW OF NORTH AMERICA, INC.
