52 16 040 Removing and installing/replacing outer cover on front left or right seat (sports/electric)

Unscrew bolt (1).

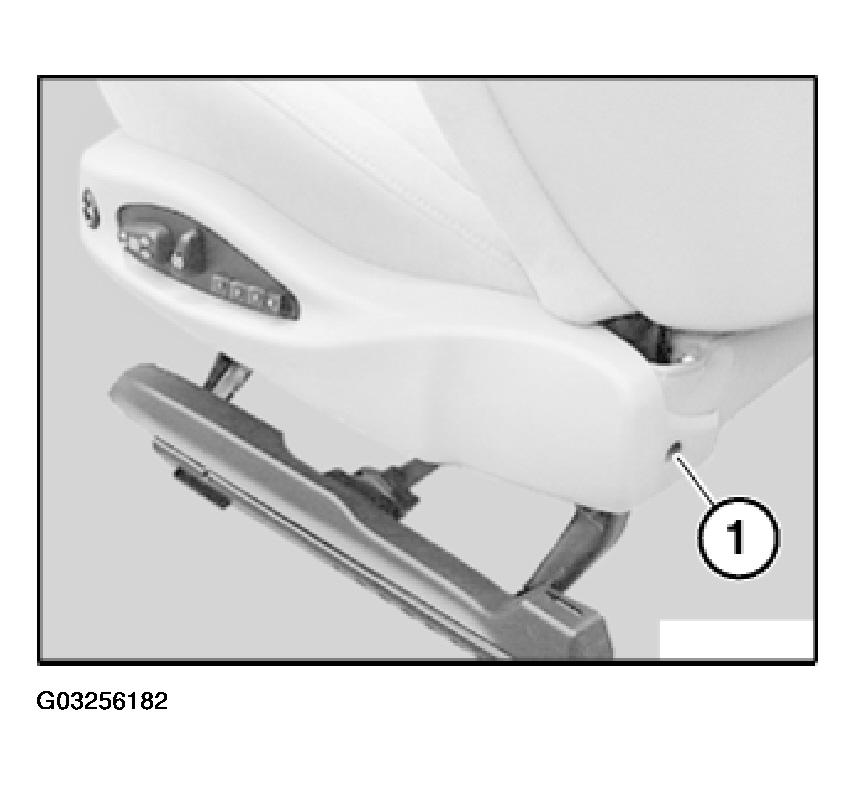

Fig 1: Unscrewing Bolt On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

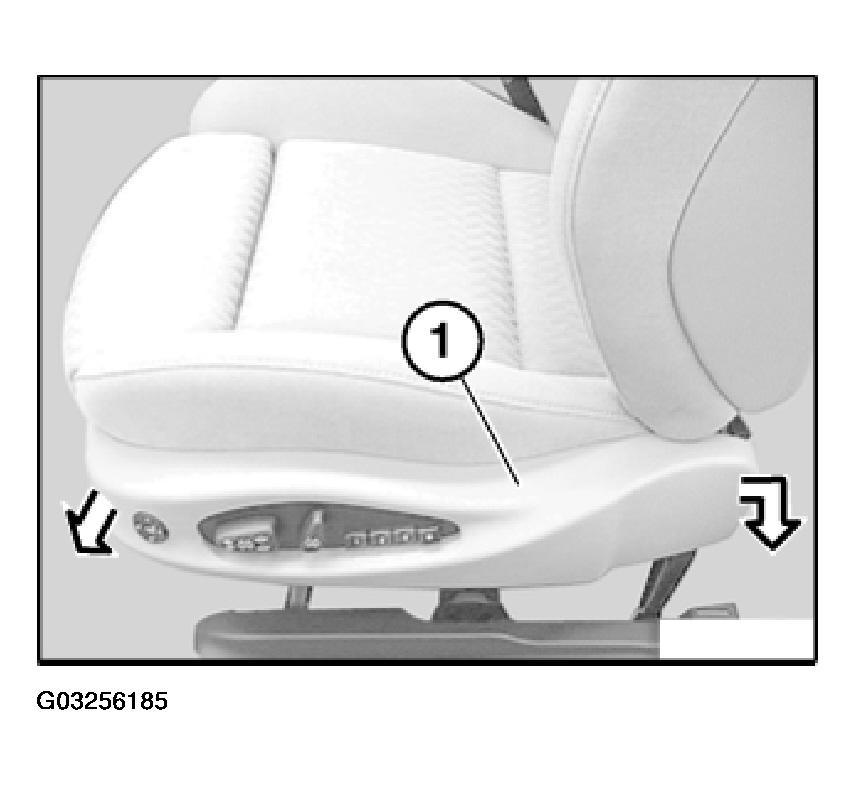

Removing Top Cover:

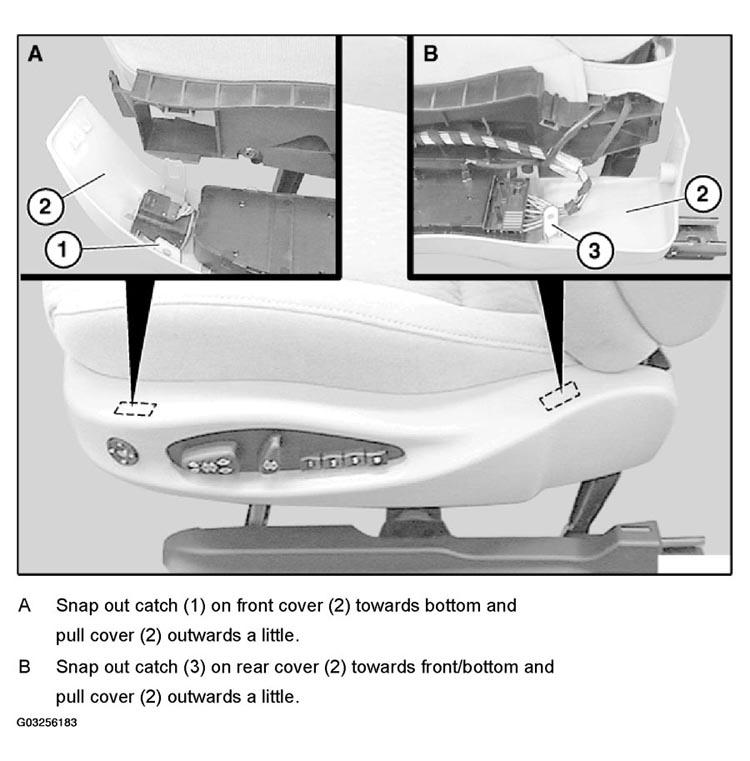

Fig 2: Removing Top Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever lugs (1) on cover (3) out of brackets (2).

Fig 3: Removing Lugs From Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (1) at rear, detach at front from guide and remove.

Fig 4: Removing Top Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not crush cables (1) during installation.

Insert lugs (2) into mounts (3) and snap into place.

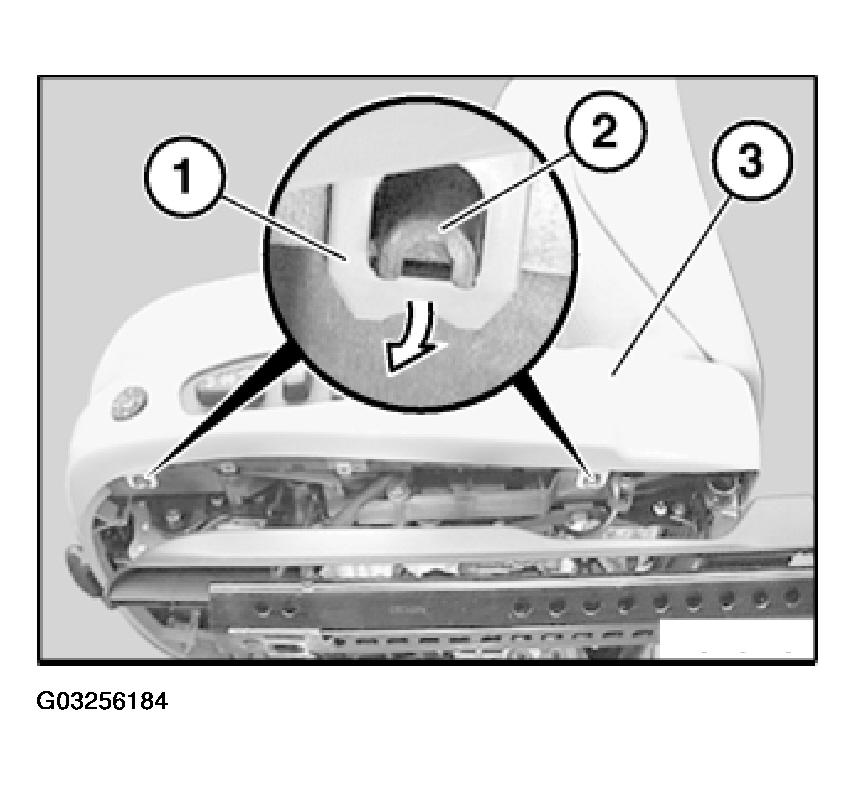

Fig 5: Locating Cables, Lugs And Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Lever out lugs (2) and detach switch combination (3).

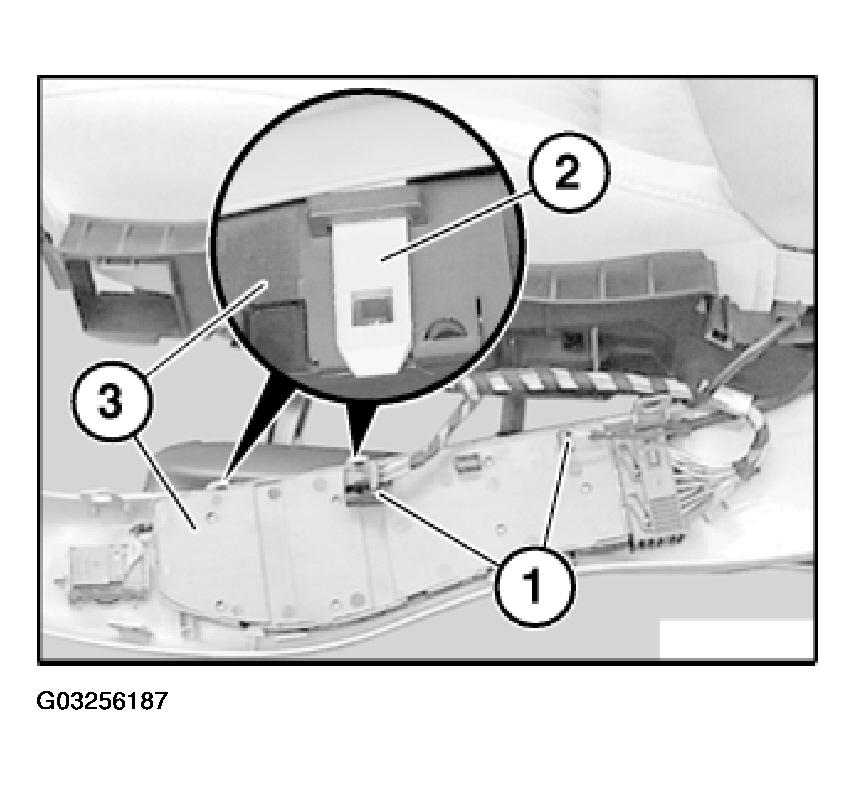

Fig 6: Detaching Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and catches (2) on switch combination (3) must not be damaged.

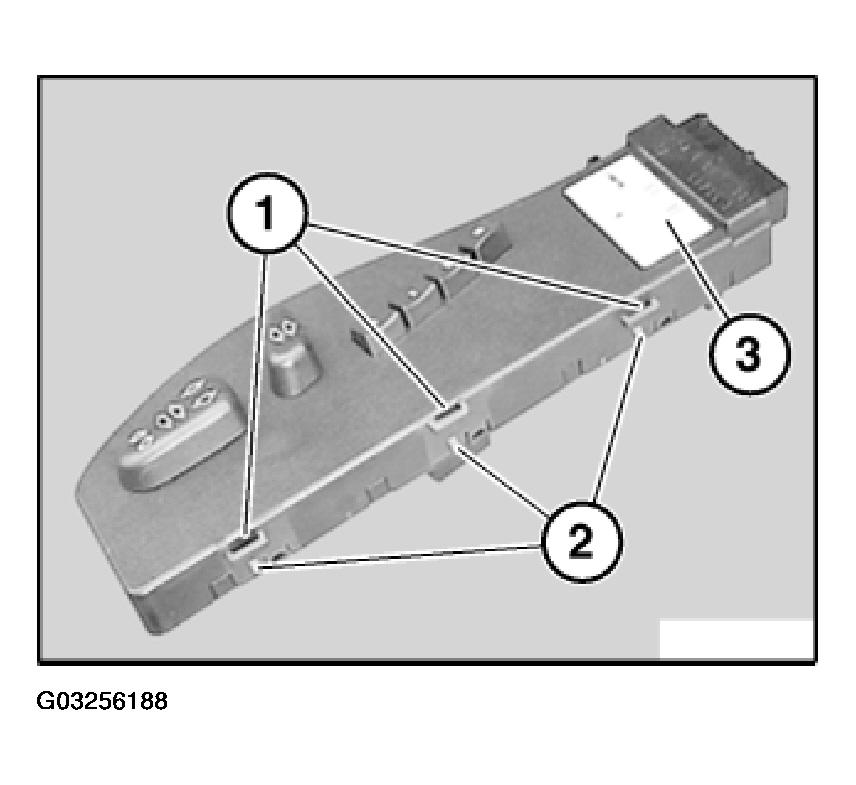

Fig 7: Locating Guides And Catches On Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

If necessary, expose cable (1) and disconnect plug connection (2).

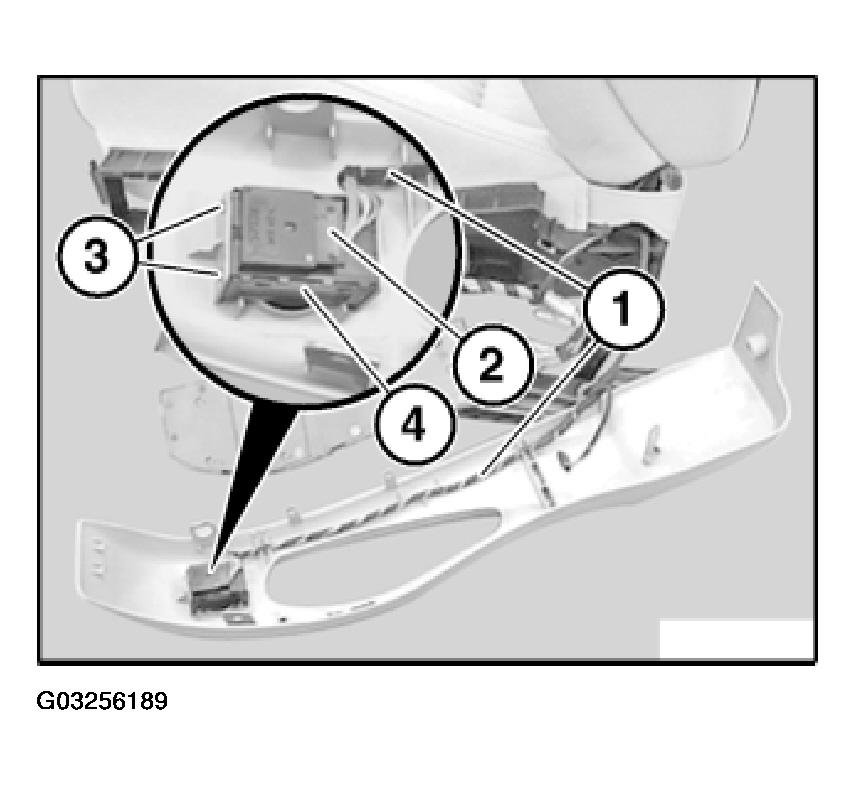

Fig 8: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Only:

If necessary, press down catches (3) on left/right and remove switch (4) from cover.

Installation:

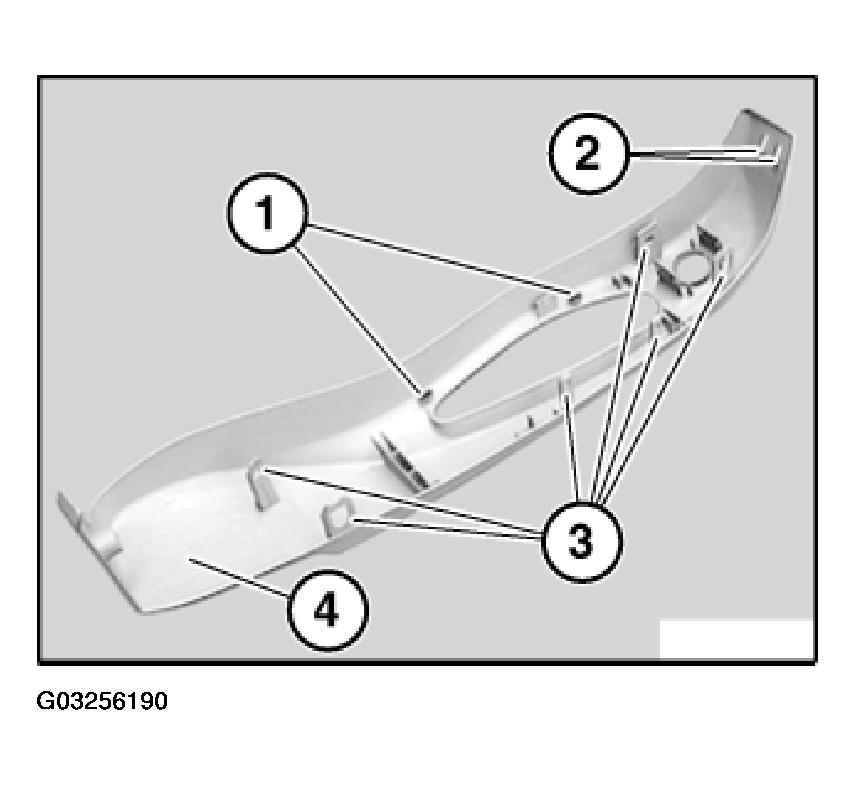

Following parts must not be damaged, replace cover (4) if necessary:

1. Mounts for switch combination.
2. Guide, front.
3. Tabs.

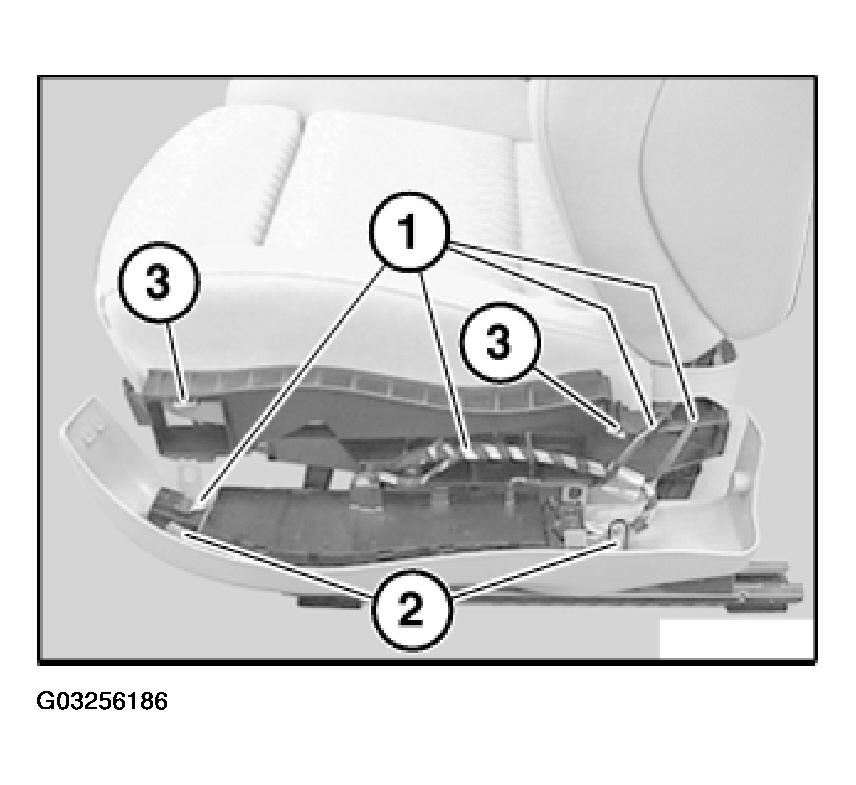

Fig 9: Identifying Mounts, Guide And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of switch combination only or in event of further work on front seat:

Disconnect plug connection (1) and remove switch combination (2).

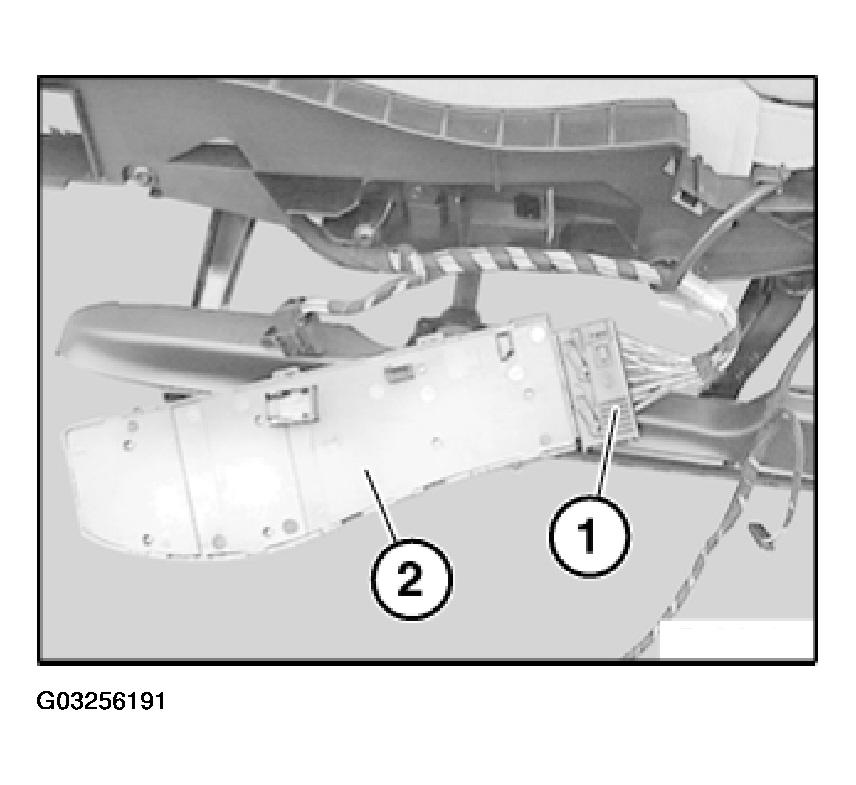

Fig 10: Disconnecting Plug Connection On Switch Combination
