52 13 ... Removing and installing/replacing seat pan and flexmat (normal/manual), left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat cover with support.

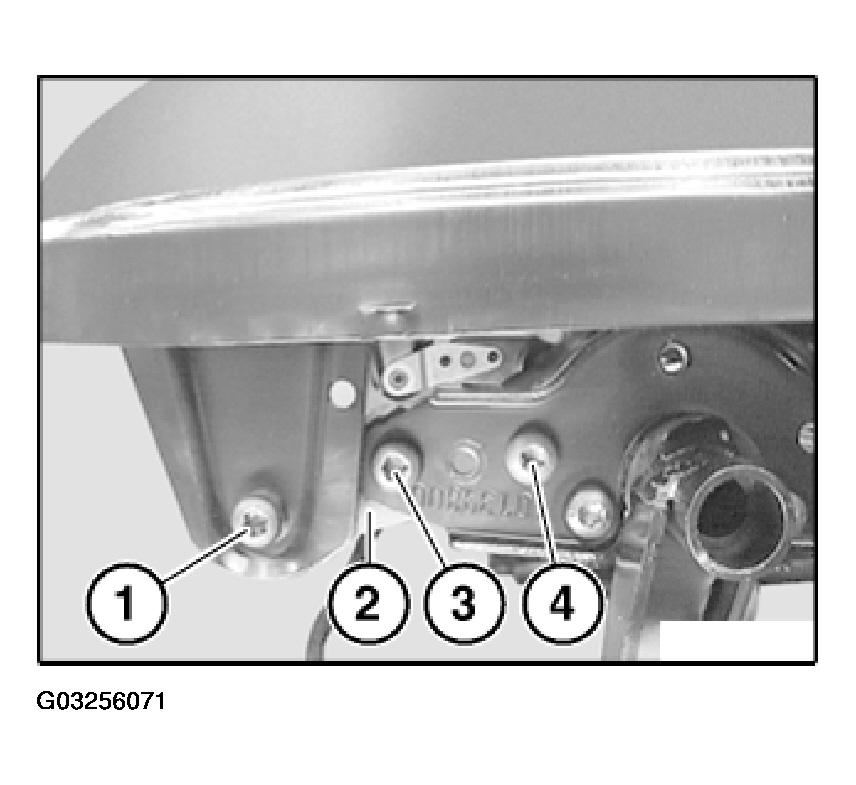

Release left screw (1) and slacken right screw only.

Release left/right screws (3).

Slacken left/right screws (4) only.

Remove left retaining plate (2) downwards.

Installation:

Tightening torque, refer to 52 10 9AZ in SEATS - TIGHTENING TORQUES .

Fig 1: Locating Left Retaining Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

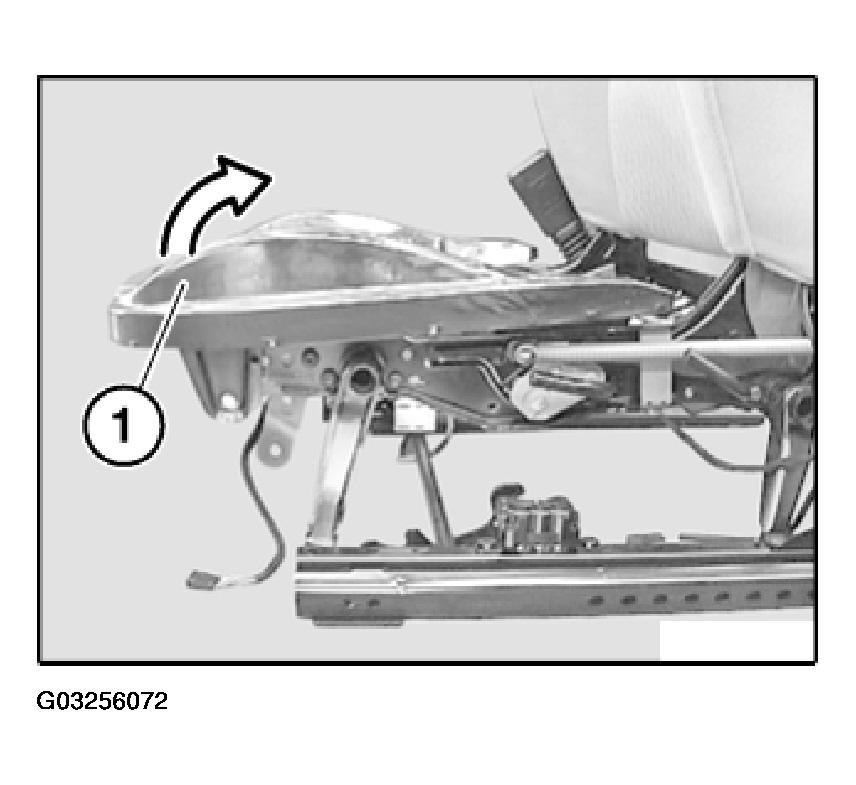

Press seat pan (1) upwards, thereby relieving tension on flexmat.

Fig 2: Aligning Seat Pan Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

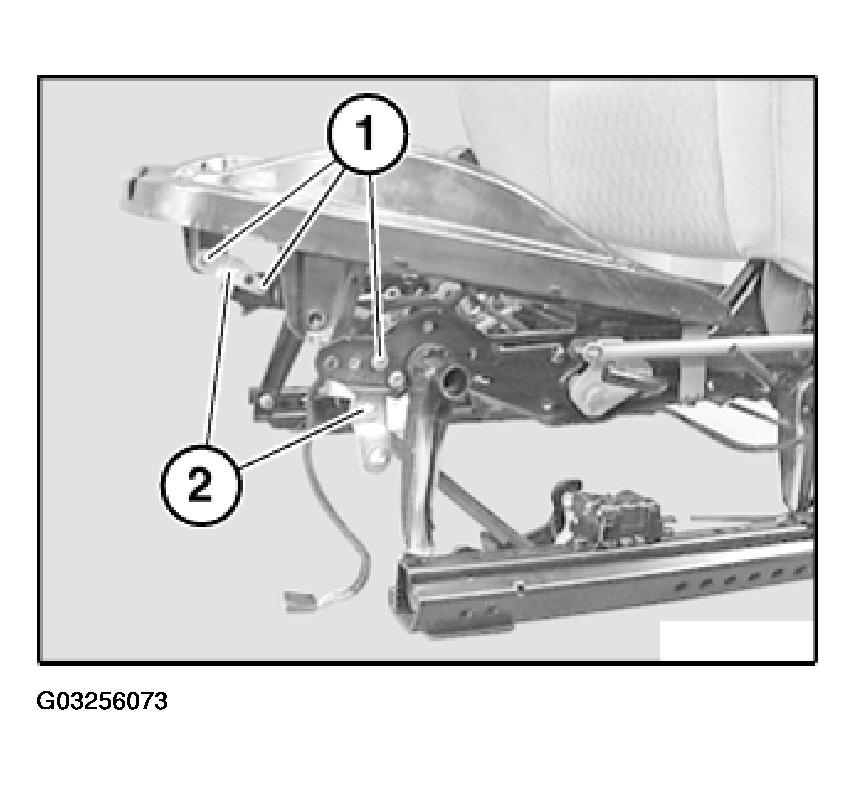

Release screws (1) and remove retaining plates (2).

Installation:

Tightening torque,

refer to 52 10 9AZ in SEATS - TIGHTENING TORQUES .

Fig 3: Identifying Retaining Plates Screws

Courtesy of BMW OF NORTH AMERICA, INC.

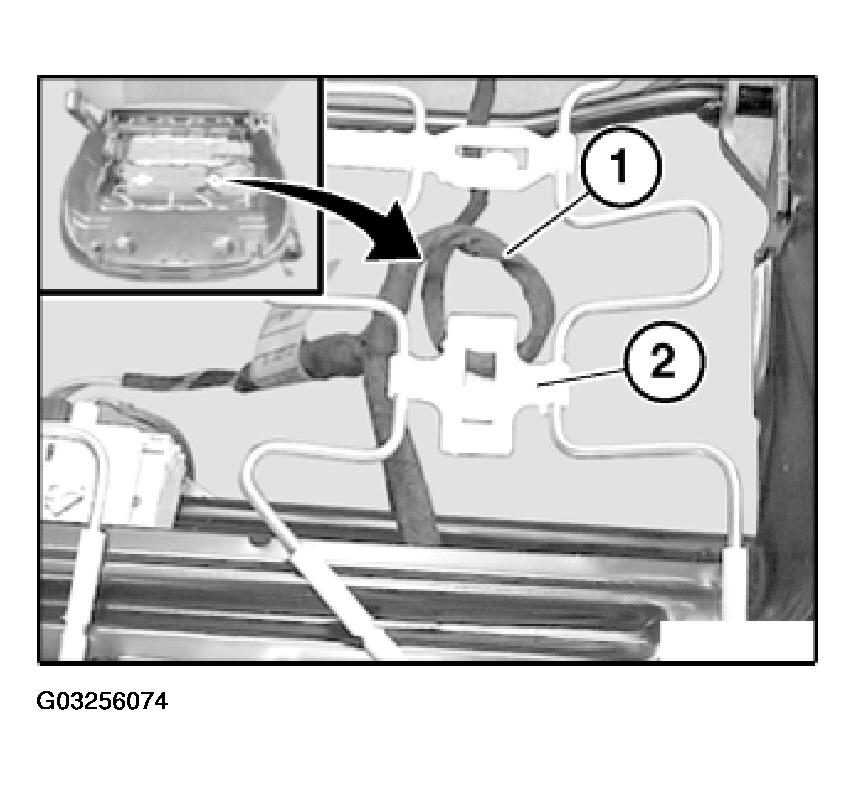

Unhook cable (1) from holder (2).

Fig 4: Unhooking Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

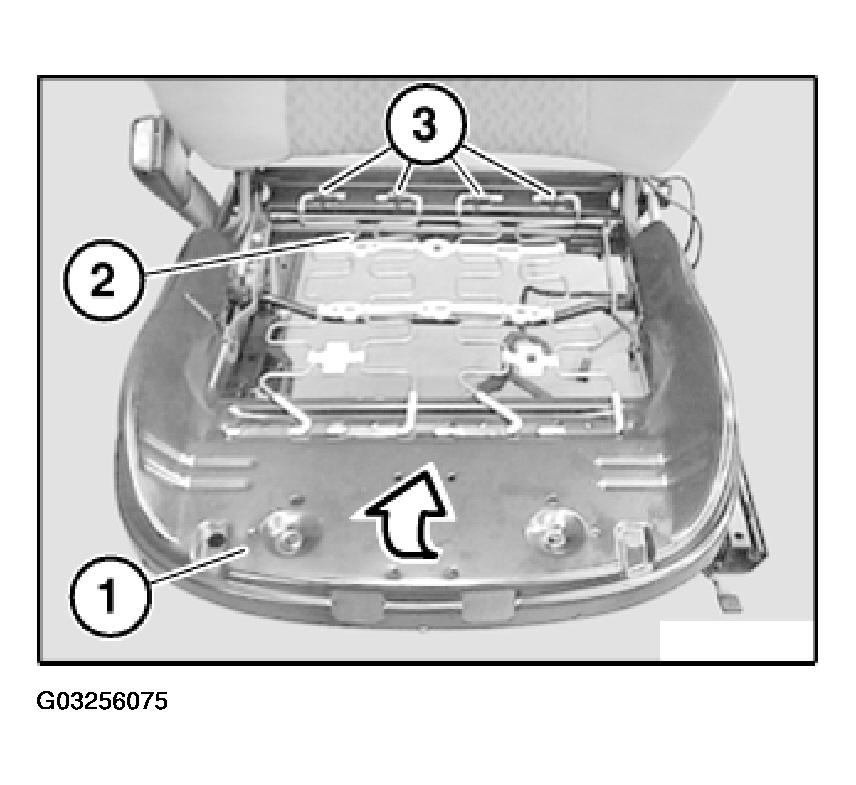

Turn seat pan (1) upwards.

Detach flexmat (2) at rear from mounts (3).

Fig 5: Turning Seat Pan Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

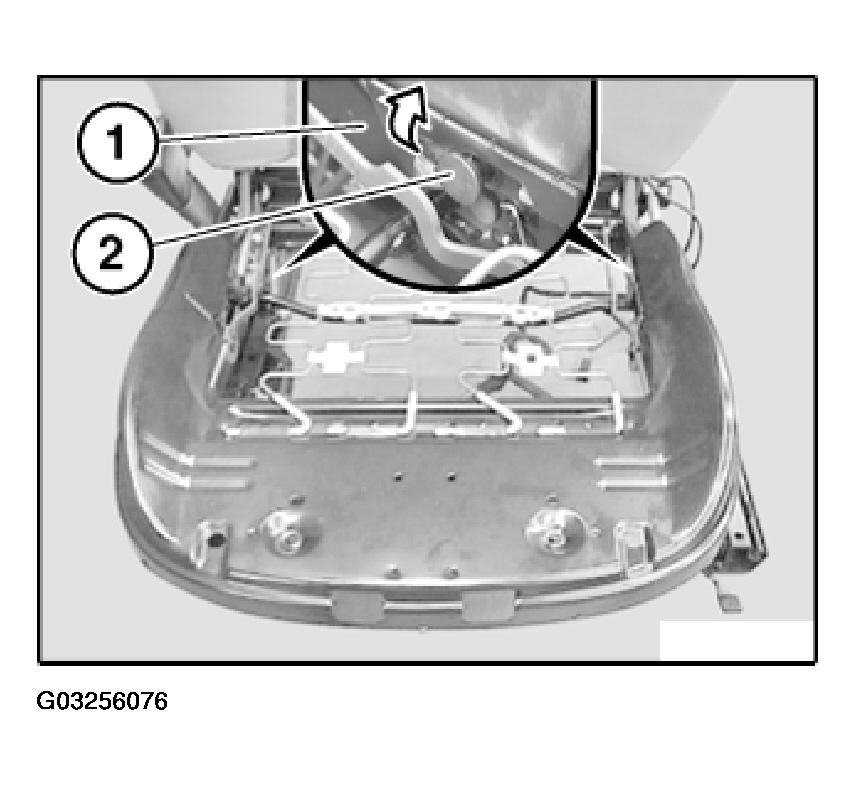

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

Fig 6: Detaching Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.

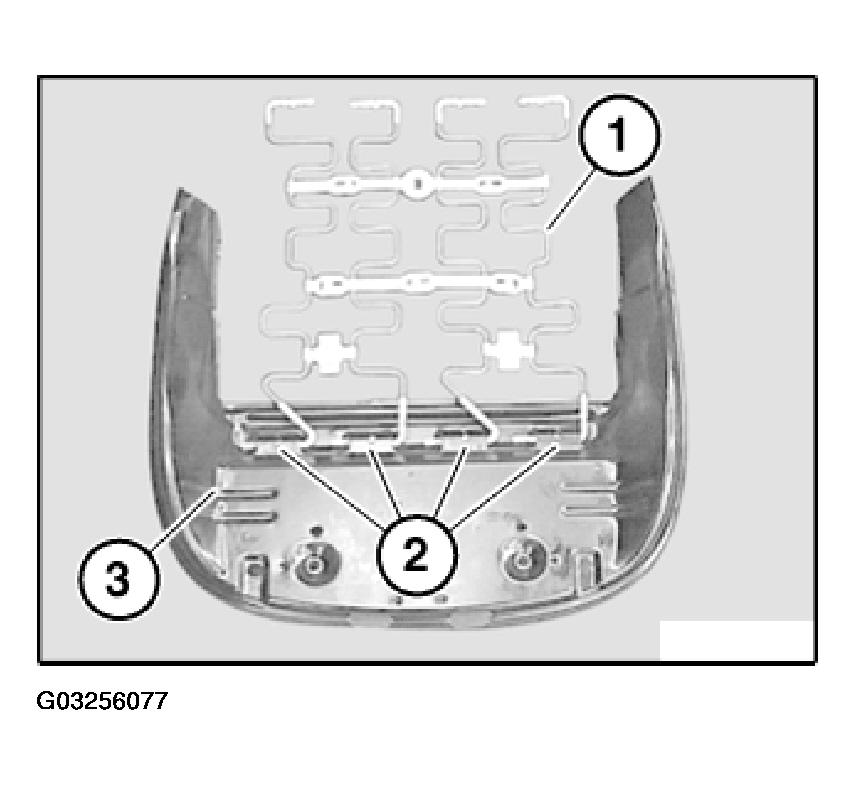

Detach flexmat (1) from mounts (2) on seat pan (3).

Fig 7: Detaching Flexmat

Courtesy of BMW OF NORTH AMERICA, INC.
