51 24 126 Removing and installing/replacing left or right striker for rear lid lower section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

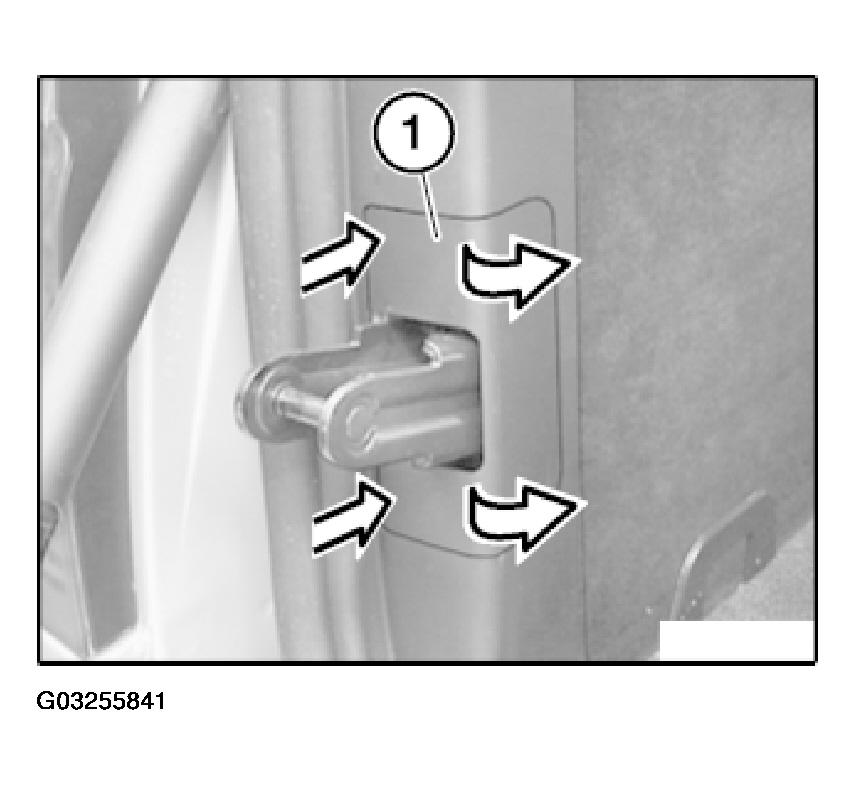

Unlock trim (1) towards front and remove towards inside.

Fig 1: Removing Striker Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

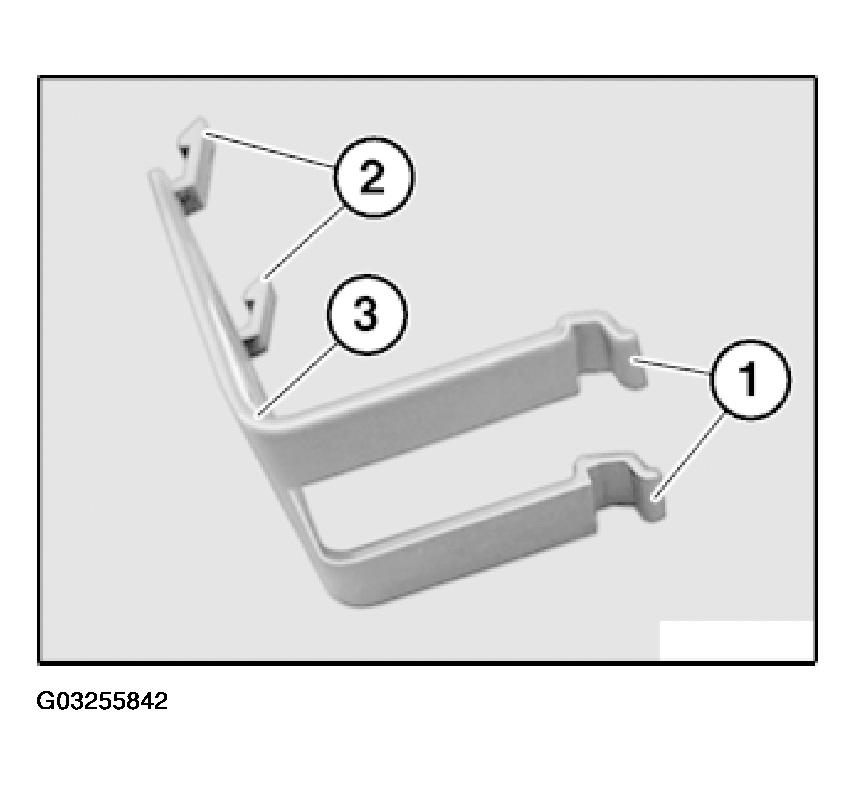

Guides (1) and catches (2) of trim (3) must not be damaged.

Fig 2: Identifying Trim Guides And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

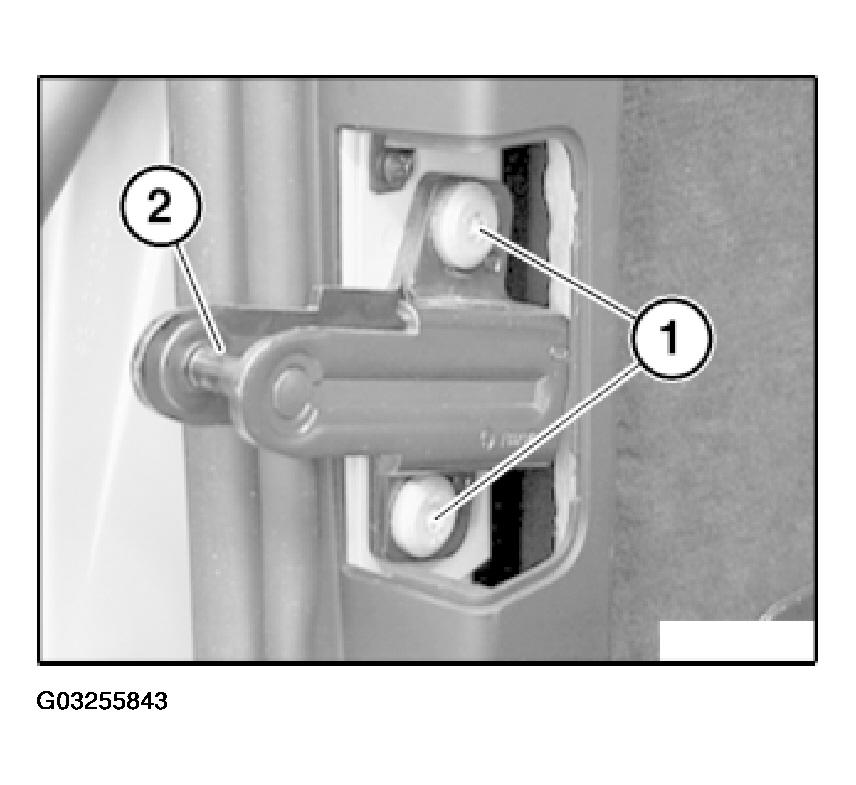

Release screws (1) and remove striker (2).

Installation:

Adjust rear lid latch (striker) for lower section of rear lid lock.

Fig 3: Locating Screws For Rear Lid Latch

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Closing bracket and rear lid lock must not be greased.
