51 24 110 Removing and installing/replacing lock for rear lid upper section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear window wiper motor. Refer to 61 62 060 REMOVING AND INSTALLING / REPLACING REAR WINDOW WIPER MOTOR .

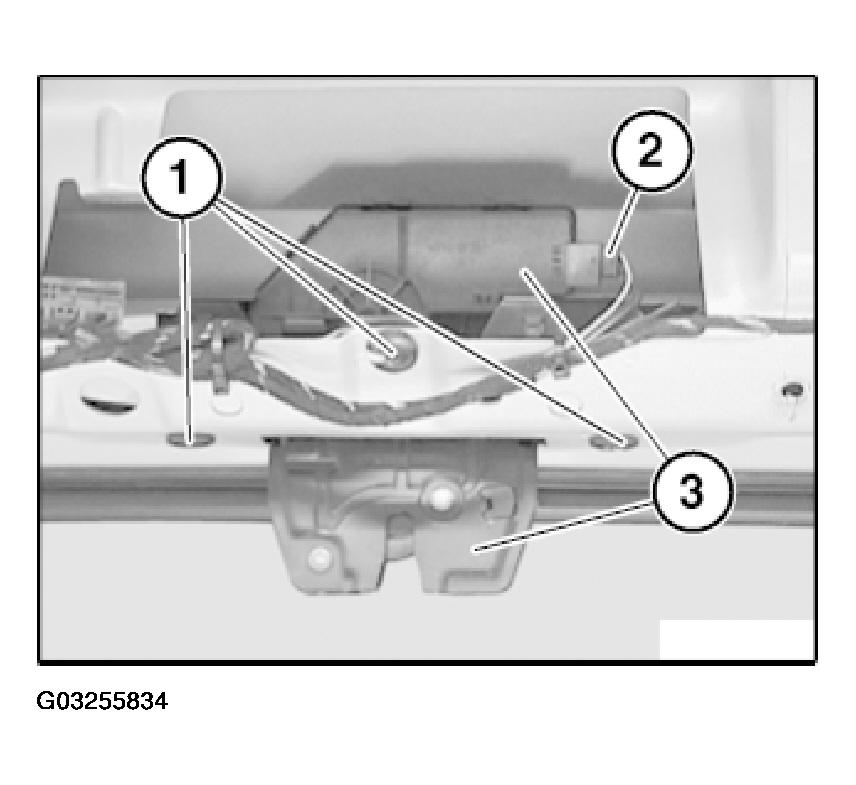

Disconnect plug connection (2).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove rear lid lock (3).

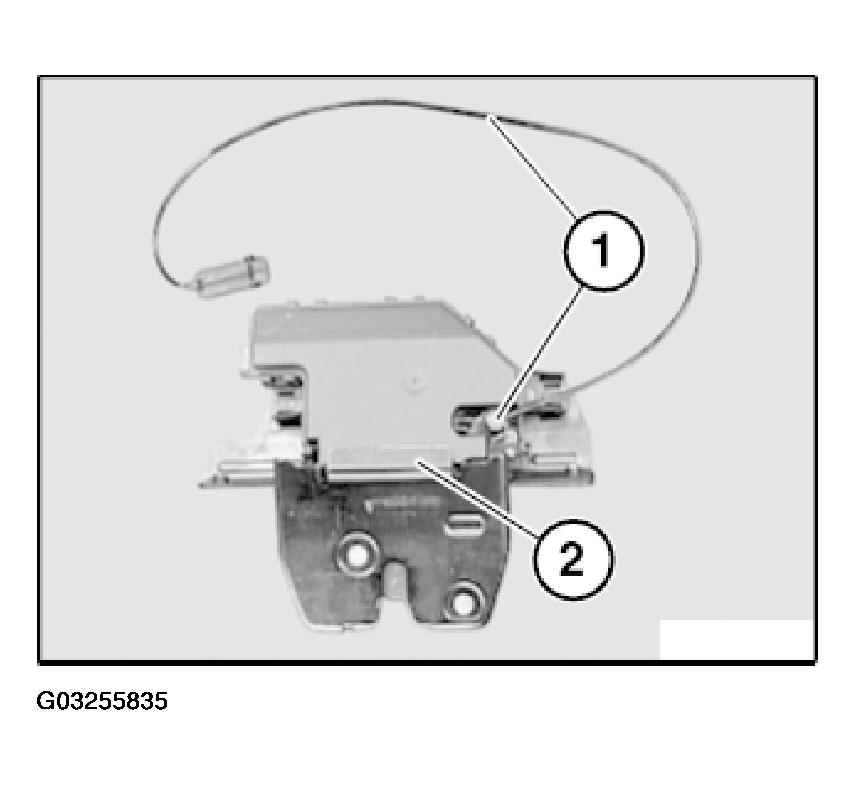

Unclip emergency actuating mechanism (1) from rear lid lock (2).

Fig 2: Unclipping Emergency Actuating Mechanism From Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust rear lid latch (striker) for upper section of rear lid lock.

CAUTION: Closing bracket and rear lid lock must not be greased.
